Husqvarna LZ30 (968999776) (2008-01) Ride Mower (Turf Care)

Model: LZ30 (968999776) (2008-01)

Back To Assemblies

Save Part Not Listed?
product name

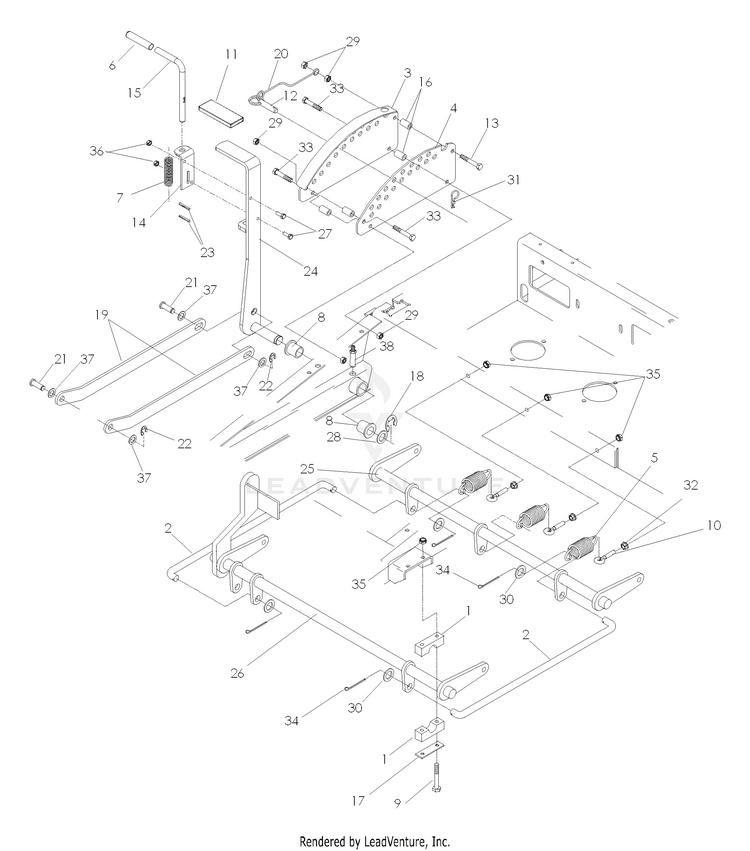

Mower Lift / Deck Lift

...
...
1
PILLOW BLOCK HUS-539104808
...
2
CONNECTING LINK HUS-539104310
...
3
ADJ. PLATE WLDMNT HUS-539104321
...
4
ADJ. PLATE PAINTED HUS-539104323
...
5
DECK LIFT SPRING HUS-539104760
...
5
DECK LIFT SPRING HUS-539104760
...
6
GRIP HUS-539101050
...
7
SPRING HUS-539101058
...
8
BUSHING, FLANGED HUS-539101232
...
9
HCS 5/16C X 2-3/4 HUS-539101721
...
10
EYEBOLT, RH HUS-539101982
...
10
EYEBOLT, RH HUS-539101982
...
11
GRIP HUS-539102515
...
12
Pins HUS-596917701
...
13
SCREW 3/8C X 2 3/4 HEX CAP HUS-539102612
...
14
PIN MT, UPPER HUS-539103534
...
15
PIN HUS-539104523
...
16
DECK LIFT SPACER HUS-539104530
...
17
REINFORCEMENT.PLATEX431 HUS-584392702
...
18
E-RING 7/8 HUS-539101802
...
19
LIFT LINKAGE,PAINTED HUS-539105050
...
20
LANYARD HUS-539105059
...
21
CLEVIS PIN HUS-539105060
...
22
E-RING 5/8 HUS-539105069
...
23
ROLL PIN HUS-539106532
...
24
LIFT LEVER WELDMENT HUS-539108322
...
25
SHAFT LIFT REAR HUS-539108354
...
26
LIFT SHAFT ASM, FRONT HUS-539132170
...
27
Screws HUS-596230901
...
28
BSHG .875 X 1.375 X .074 ZD HUS-539923787
...
29
GSPW Nuts HUS-596240901
...
30
WASHER 5/8 FLAT HUS-539976982
...
31
Pins HUS-596273101
...
32
GSPW Hardware HUS-596039201
...
32
GSPW Hardware HUS-596039201
...
33
Bolts HUS-596434201
...
34
COTTER PIN HUS-539990654
...
35
Nuts HUS-596583702
...
36
NUT 1/4C CENTER LOCK HUS-539990761
...
37
Washers HUS-596933401
...
38
GREASE ZERK LONG HUS-539104761
