Husqvarna LZ30 (968999776) (2008-01) Ride Mower (Turf Care)

Model: LZ30 (968999776) (2008-01)

Back To Assemblies

Save Part Not Listed?
product name

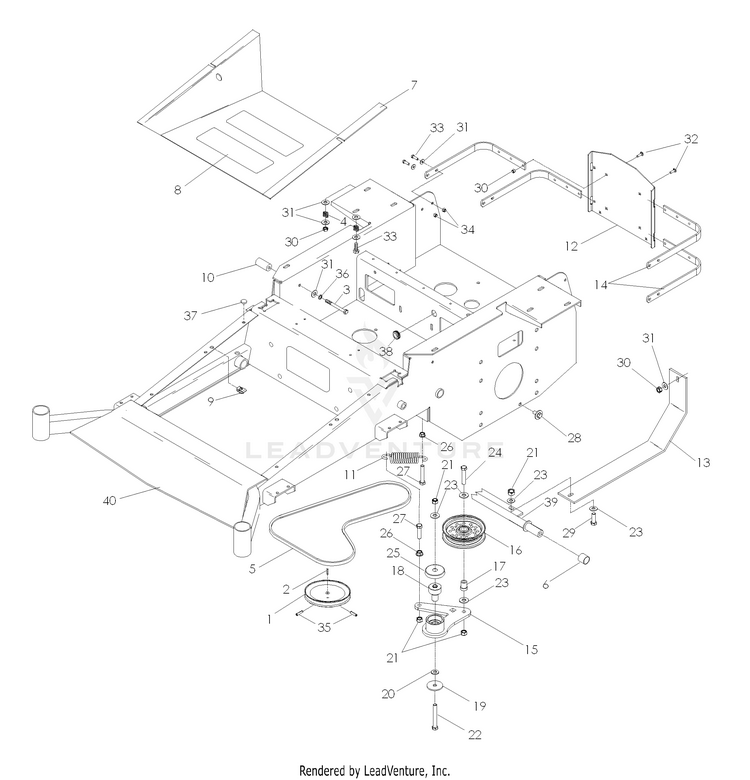

Chassis / Frame

...
...
1
PULLEY HUS-539101176
...
2
KEY 5 MM SQ X 25 MM HUS-539101177
...
3
Bolts HUS-596435501
...
4
SPRING HUS-539102845
...
5
BELT, PUMP HUS-510201501
...
6
SPACER, STRUT HUS-539104521
...
7
FOOT PLATE WIDMT HUS-539104721
...
8
ANTI-SKID PAD HUS-539977778
...
9
U-CLIP 5/16-18 NUT RETAINER HUS-539104763
...
10
TANK SPACER HUS-539104897
...
11
SPRING HUS-539110655
...
12
XP GUARD, BLACK HUS-539110976
...
13
SKID PLATE HUS-539112634
...
14
ENGINE SHROUD BRKT HUS-539106961
...
15
ARM, IDLER - W/BEARINGS HUS-539130392
...
16
PULLEYS HUS-596739801
...
17
BUSHING, IDLER FLANGE HUS-539976695
...
18
PIVOT, BEARING HUS-539130205
...
19
Washers HUS-596917301
...
20
WASHER PLAIN WASHER 3/8 X 0.08 HUS-596565301
...
21
GSPW Nuts HUS-596240901
...
22
HCS 3/8C X 3 HUS-539101341
...
23
GSPW Washers HUS-596433701
...
24
HCS 3/8C X 2 HUS-539990588
...
25
Shields HUS-596394601
...
26
Washers HUS-596583501
...
27
HCS 3/8C X 1 1/2 HUS-539990655
...
28
BLADE BOLT/WASHER HUS-539119007
...
29
Bolts HUS-596564401
...
30
Nuts HUS-596580701
...
31
GSPH HUS-596134901
...
32
GSPW Bolts HUS-595901601
...
33
Bolts HUS-596580801
...
34
Nuts HUS-596583702
...
35
Pins HUS-596917801
...
36
WASHER SPRING LOCK WASHER WITH HUS-596238801
...
37
GROMMET, BUMPER HUS-539102587
...
38
GROMMET, FUEL LINE HUS-539110433
...
39
CROSS SHAFT, STRUT - BLK HUS-539132302
...
40
FRAME W/DECALS 72" HUS-539132232
...
40
DECK STOP NOT SHOWN HUS-539112981
...
40
BOLT 3/8-16 X 1.0 NOT SHOWN HUS-539107476
