Husqvarna LZ30 (968999776) (2008-01) Ride Mower (Turf Care)

Model: LZ30 (968999776) (2008-01)

Back To Assemblies

Save Part Not Listed?
product name

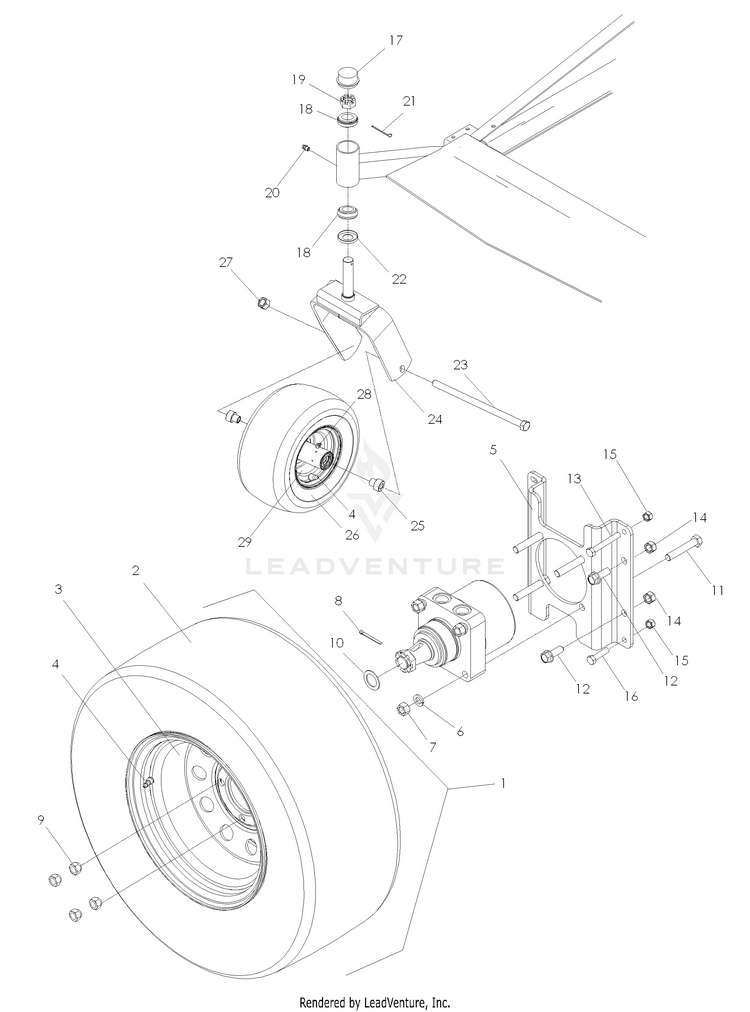

Wheels and Tires

...
...
1
WHEEL/TIRE.ASM.23X9.5-12.GREY HUS-539112592
...
2
TIRE.TURF.MASTER.23X9.5-12 HUS-539112599
...
3
WHEEL/TIRE.ASM.23X8.5-12.GREY HUS-539106882
...
4
VALVE STEM TR-412 HUS-539912234
...
5
MOUNT, MOTOR, WHEEL - BLK HUS-539132300
...
6
WASHER 1/2" SPLIT LOCK HUS-539990254
...
7
NUT HEX 1/2 HUS-539990258
...
8
PIN COTTER 4MM X 45MM HUS-539104288
...
9
Nuts HUS-587653903
...
10
Washers HUS-596319701
...
11
HCS 1/2C X 2 3/4 HUS-539101332
...
12
HCS 1/2C X 1 1/4 SERRATED HEAD HUS-539990622
...
13
Bolts HUS-596564404
...
14
GSPW NUTS HUS-596135601
...
15
GSPW Nuts HUS-596240901
...
16
HCS 3/8C X 1 1/4 GR5 HUS-539976941
...
17
Caps HUS-595281301
...
18
TAPERED ROLLER BRG HUS-539102543
...
19
Nuts HUS-596241501
...
20
Zerks HUS-596623501
...
21
COTTER PIN 1/8 X 2 HUS-539124704
...
22
SEAL HUS-539102851
...
23
GSPW Screws HUS-594946501
...
24
CASTOR YOKE ORANGE HUS-539105982
...
25
AXLE SPACER HUS-539105518
...
26
FRONT TIRE ASSY HUS-539105521
...
27
GSPW NUTS HUS-596135601
...
28
ZERK HUS-539103300
...
29
RIM HUS-539105523
