Husqvarna LZ30 (968999776) (2008-01) Ride Mower (Turf Care)

Model: LZ30 (968999776) (2008-01)

Back To Assemblies

Save Part Not Listed?
product name

Popular Parts

Popular Parts

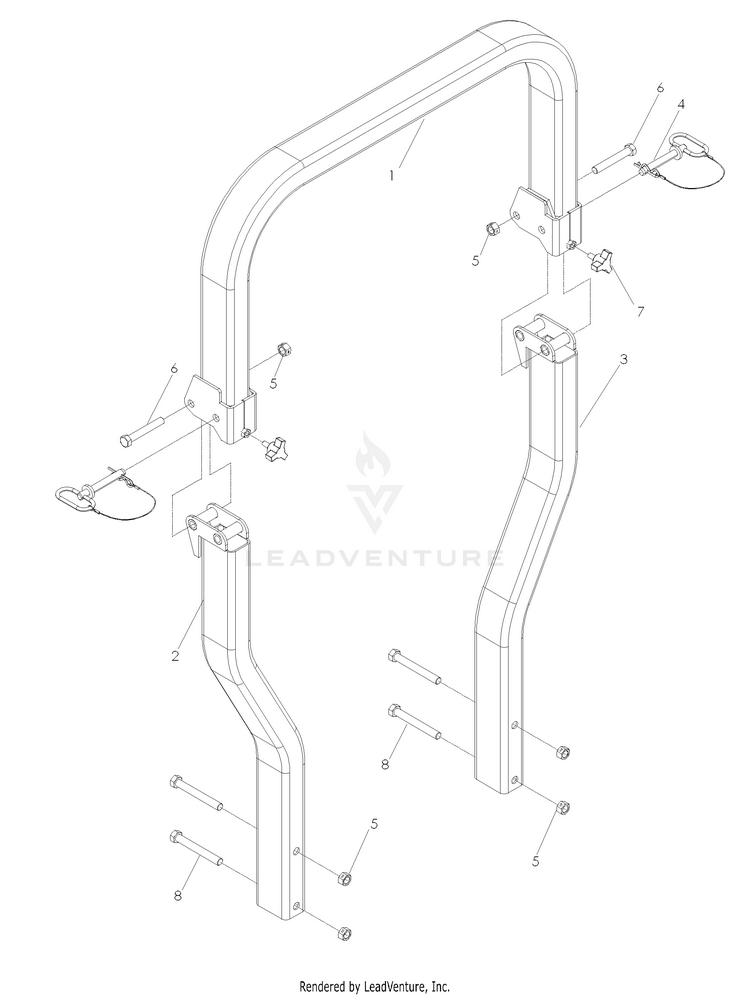

Protection Frame

...
...
1
TOP TUBE HUS-539111079
...
2
SIDE TUBE, RT HUS-539111080
...
3
SIDE TUBE, LT HUS-539111081
...
4
PIN, T HANDLE HUS-525865001
...
5
NUT 1/2-13 HEX CNTRLK GR 5 ZD HUS-539200100
...
6
HCS 1/2C X 3 1/4 HUS-539103433
...
7
GSPW Knobs HUS-597783101
...
8
HCS 1/2-13 X 4 GR 5 ZD HUS-539108366
