Husqvarna LZ30 (968999776) (2008-01) Ride Mower (Turf Care)

Model: LZ30 (968999776) (2008-01)

Back To Assemblies

Save Part Not Listed?
product name

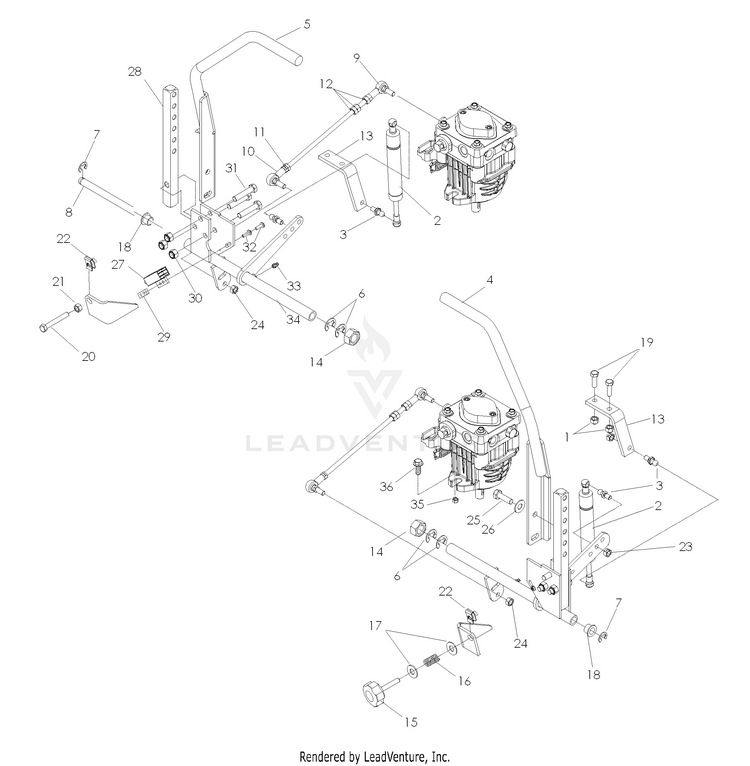

Steering

...
...
1
Nuts HUS-596583702
...
2
DAMPENER W/EXT SEAL HUS-539131932
...
3
Studs HUS-594056301
...
4
ASSEMBLY, DRIVE LEVER LT HUS-539131622
...
5
ASSEMBLY, DRIVE LEVER RT HUS-539131623
...
6
E-RING 5/8 HUS-539105069
...
7
Washers HUS-596671501
...
8
CONTROL SHAFT HUS-539110833
...
9
SPHERICAL ROD END, LH HUS-539110604
...
10
SPHERICAL ROD END, RH HUS-539110603
...
11
Nuts HUS-596584101
...
12
Hardware HUS-596040901
...
13
DAMPENER BRACKET HUS-539111074
...
14
NUT 3/4 X 16 HEX CTR HUS-539990820
...
15
ADJUSTMENT KNOB HUS-539103003
...
16
COMPRESSION SPRING HUS-539111039
...
17
GSPH HUS-596134901
...
18
BUSHING HUS-539102519
...
19
Bolts HUS-596580801
...
20
HCS 5/16-18X1-3/4 TPBLT HUS-539108394
...
21
Nuts HUS-596582601
...
22
U-CLIP 5/16-18 NUT RETAINER HUS-539104763
...
23
Nuts HUS-596580701
...
24
NUT 5/16F NYLOC HUS-539110943
...
25
Bolts HUS-596564401
...
26
WASHER, 3/8 DISC SPRING SPEC HUS-539102593
...
27
SWITCH, INTERLOCK HUS-539101080
...
28
CONTROL ARM HUS-539110638
...
29
TAPPED PLATE HUS-539102678
...
30
GSPW Nuts HUS-596240901
...
31
Bolts HUS-596583901
...
32
Screws HUS-596039001
...
33
GSPW Zerks HUS-596899901
...
34
CONTROL ASM - ADJ, LT HUS-539130702
...
34
CONTROL ASM - ADJ, RT HUS-539130701
...
35
Nuts HUS-595305901
...
36
Screws HUS-596583101
