Husqvarna LZ25 (968999772) (2008-01) Ride Mower (Turf Care)

Model: LZ25 (968999772) (2008-01)

Back To Assemblies

Save Part Not Listed?
product name

Engine Plate Kohler Engine

...
...
1
Nuts HUS-596583702
...
2
SCREW HUS-874780528
...
3
KEY 1/4" SQ X 1 7/8" HUS-539100152
...
4
PULLEY HUS-539106057
...
5
ELECTRIC CLUTCH W/CABLE HUS-539105406
...
6
Washers HUS-596238901
...
7
BOLT 7/16F X 2 1/2 HUS-539991120
...
8
CLUTCH TIE DOWN HUS-539106819
...
9
GSPH HUS-596134901
...
10
MUFFLER KOHLER GEN II HUS-539105896
...
11
WASHER SPRING LOCK WASHER WITH HUS-596238801
...
12
MUFFLER BRACKET BLACK HUS-539111093
...
13
Bolts HUS-596580801
...
14
OIL DRAIN HOSE HUS-539107937
...
15
Screws HUS-596230901
...
16
CLAMP HUS-539101363
...
17
NUT 1/4C CENTER LOCK HUS-539990761
...
18
VALUE.OIL.DRAIN HUS-532428287
...
19
KOH PIGTAIL HUS-539104416

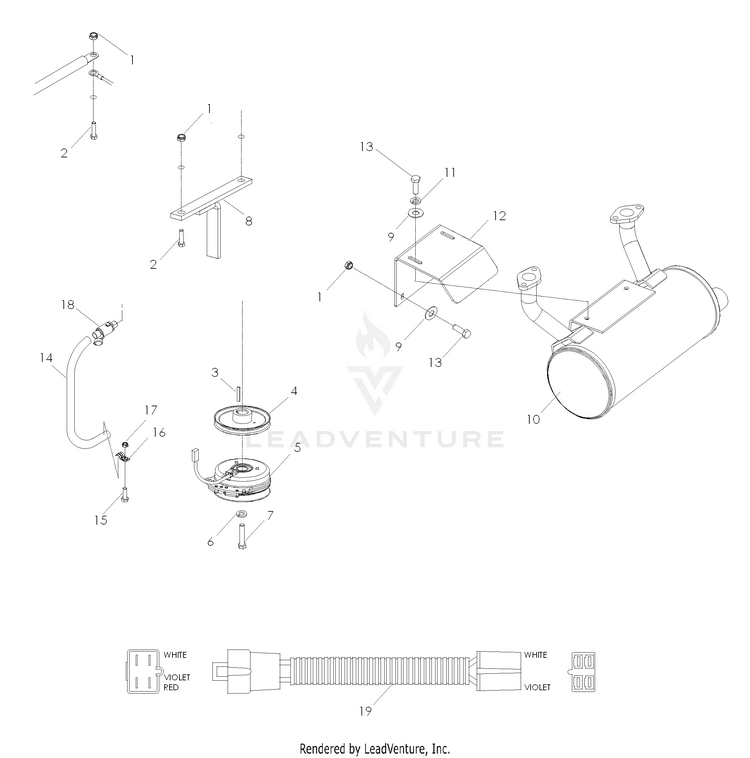

Schematic Image Zoomed
