Husqvarna LZ11597 - 96011025905 (2011-11) Tractor/Ride Mower

Model: LZ11597 - 96011025905 (2011-11)

Back To Assemblies

Save Part Not Listed?
product name

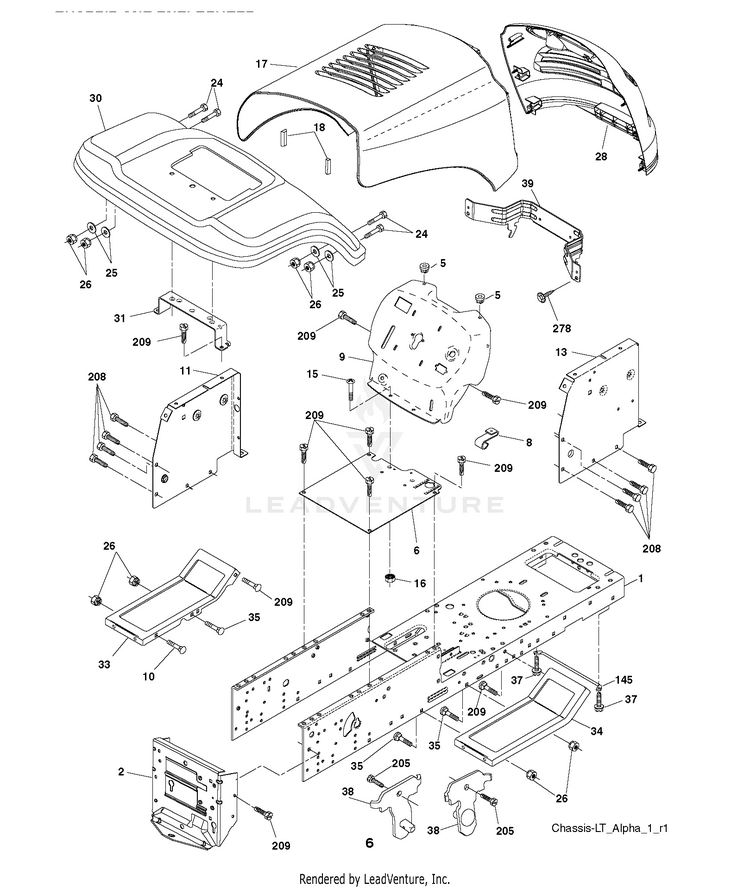

CHASSIS ENCLOSURES

...
...
1
CHASSIS HUS-532174620
...
2
DRAWBAR, 12GA HUS-532176554
...
5
BUMPER.RUBBER.HOOD HUS-532155272
...
6
Saddle HUS-532184419
...
8
CLIP RETAINER HUS-532155138
...
9
HUS-532194688
...
10
Bolt, Carriage 3/8-16 x 1 Gr. 5 HUS-872110608
...
11
PANEL.DASH.LH.LTX HUS-532174996
...
13
PANEL HUS-532172105
...
15
SCREW HUS-874180512
...
16
Nut Lock Hex W/Ins. 5/16-18 Unc P HUS-873800500
...
17
HUS-532441509
...
18
BUMPER.HOOD.LARGE.1.75" HUS-532184921
...
24
BOLT HUS-874780616
...
25
WASHER HUS-734117201
...
26
Nut HUS-873680600
...
28
HUS-532194798
...
30
HUS-532441520
...
31
BRACKET FENDER HUS-532136619
...
33
HUS-532441519
...
34
HUS-532441518
...
35
BOLT HUS-872110606
...
37
Screw, Hex Washer Head Threaded, Rolling 5/16-18 x 1/2 HUS-817490508
...
38
BRACKET.ASM.PIVOT.MOWER.REAR HUS-532175710
...
39
BRACKET.PIVOT.ALPHA.LT HUS-532187568
...
145
ROD.PIVOT.HOOD HUS-532409167
...
205
SCREW LT HUS-817490608
...
208
SCREW 3/8-16X1/2 HUS-817670608
...
209
SCREW, 3/8-16X3/4 HUS-817000612
...
278
SCREW.#10 X 0.750.BOS THREAD HUS-532416358
...
--
PLUG BUTTON T NOT SHOWN HUS-532005479
...
--
NOT SHOWN HUS-532193935
