Husqvarna LZ11577 - 96041013801 (2010-09) Tractor/Ride Mower

Model: LZ11577 - 96041013801 (2010-09)

Back To Assemblies

Save Part Not Listed?
product name

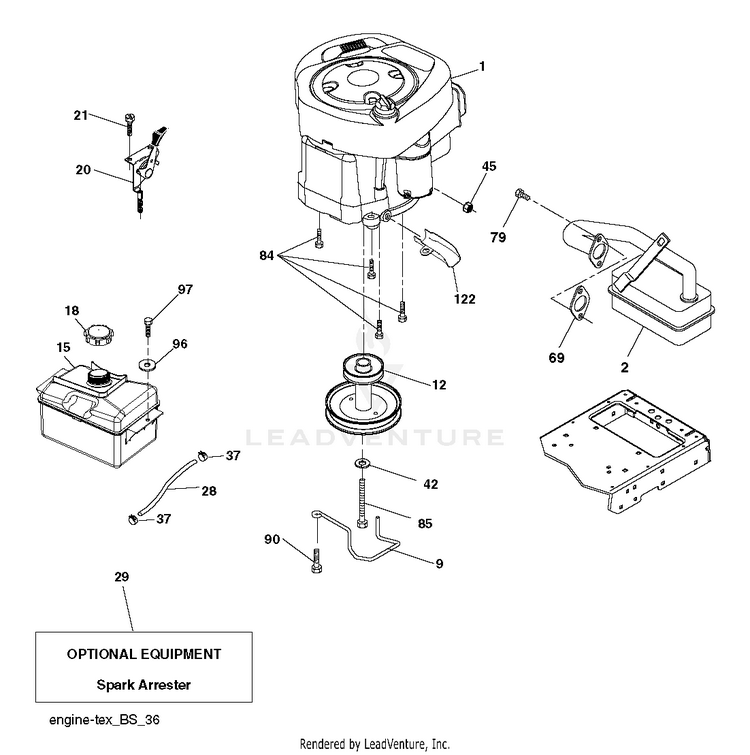

ENGINE

...
...
1
Engine BS Model No 217807-3209-B1 HUS-TBD
...
2
MUFFLER HUS-532179758
...
9
KEEPER.BELT.ENGINE.3.25 HUS-532194319
...
12
PULLEY ENGINE HUS-532140186
...
15
FUEL.TANK.ASM.1.5.GAL.NON-EPA HUS-581289901
...
18
CAP.FUEL.TANK.SS/SNO.EPA.DOME HUS-581075501
...
20
CONTROL.TH/CK.C.BLACK HUS-532176636
...
21
SCREW.#10 X 0.750.BOS THREAD HUS-532416358
...
28
LINE.FUEL.20 HUS-532137040
...
29
ARRESTER SPARK (OPTIONAL) HUS-532137180
...
37
HOSE CLAMP HUS-532123487
...
42
LOCKWASHER.7/16 HUS-539990247
...
45
Nut Crownlock 1/4-20 unc HUS-873680400
...
69
Gasket Eng 1 313 Id Tin Plated HUS-532272293
...
79
SCREW.SOCKET HD.5/16-1 HUS-532192334
...
84
SCREW.3/8-16 HUS-817060620
...
85
SUB= 150280 HUS-532150280
...
90
SCREW 3/8-16X1 HUS-817000616
...
96
WASHER HUS-819091416
...
97
SCREW HEXWSHR 1/4-20X3/4 HUS-817670412
...
122
EXTENSION DRAIN OIL HUS-532421922
