Husqvarna LZ11577 - 96041013801 (2010-09) Tractor/Ride Mower

Model: LZ11577 - 96041013801 (2010-09)

Back To Assemblies

Save Part Not Listed?
product name

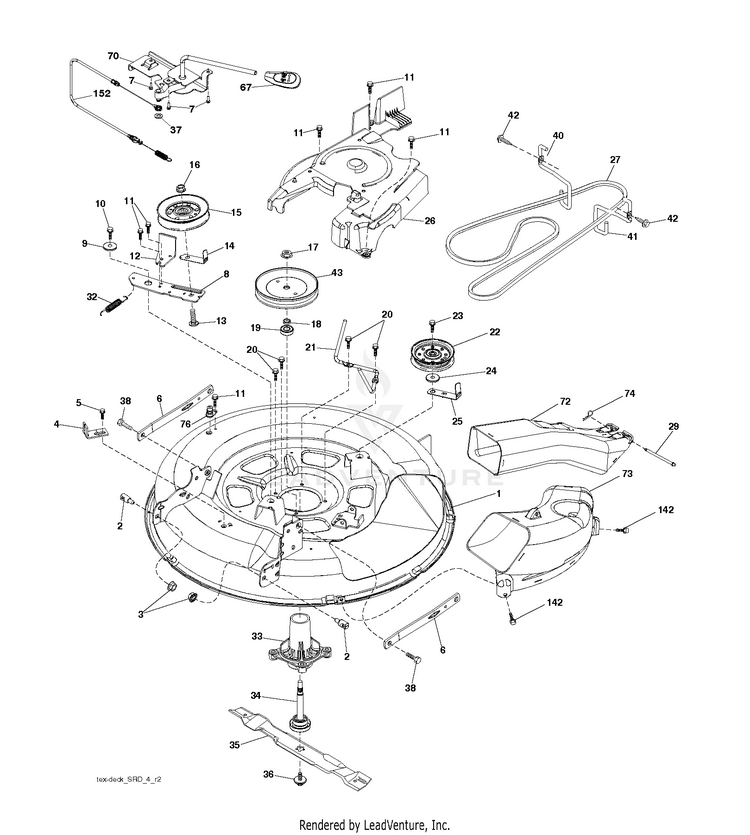

MOWER DECK / CUTTING DECK

...
...
1
HUS-532419272
...
2
STUD.FASTNER.W/ANTI-ROTATE HUS-532195161
...
3
NUT LOCK HEX FLANGE 5/16-18 HUS-873900500
...
4
HUS-532417645
...
5
BOLT.5/16HEX.WHS.HD HUS-817000510
...
6
ARMS.SUSP.MOWER.REAR.SRD HUS-532418863
...
7
SCREW.#10 X 0.750.BOS THREAD HUS-532416358
...
8
HUS-532420252
...
9
SPACER.RETAINER HUS-532199092
...
10
SCREW 3/8-16X1 HUS-817000616
...
11
SCREW.1/4-20X5/8 HUS-532137729
...
12
BRAKE.ARM.LH.38"TEX.COATED HUS-532400130
...
13
BOLT.3/8-16X1.50 HUS-872110612
...
14
KEEPER.BELT.IDLER.PLATED HUS-532173968
...
15
PULLEY.IDLER.4.25 HUS-532146763
...
16
NUT.HEX.FLANGE.3/8-16.LOCKNUT HUS-532409148
...
17
NUT.FLANGE.LOCK.TOP HUS-532400234
...
18
WASHER.SPACER.MANDREL HUS-532187690
...
19
BEARING HUS-532110485
...
20
SCREW, WASHER HEAD HUS-532173984
...
21
HUS-532416910
...
22
PULLEY.IDLER.FLAT.UNPLATED HUS-532193198
...
23
SCREW LT HUS-817490628
...
24
WASHER HUS-819132012
...
25
KEEPER-BELT-BLACK HUS-529311701
...
26
HUS-532432466
...
27
V-BELT.DRIVE.MOWER.30" HUS-532419271
...
29
HUS-532420895
...
32
SPRING RETURN HUS-532401872
...
33
HOUSING MANDREL HUS-532187281
...
34
MANDREL ASM HUS-532192870
...
35
BLADE.MOWER.BAGGING.30" HUS-532419274
...
36
BOLT.WASHER.ASM.7/16-2 HUS-532193003
...
37
WASHER HUS-819131316
...
38
BOLT.SHOULDER HUS-532196539
...
40
HUS-532419270
...
41
HUS-532419265
...
42
SCREW, 3/8-16X3/4 HUS-817000612
...
43
PULLEY, MANDREL 6.5" BLK HUS-525568001
...
67
HANDLE.CLUTCH.CABLE.LT HUS-532403012
...
70
CLUTCH.ASM.MANUAL.LT.TEX HUS-532198332
...
72
HUS-532417236
...
73
HUS-532425274
...
74
RETAINER SPRING HUS-532085902
...
76
PORT.WASHOUT HUS-532415598
...
142
SCREW, 3/8-16X3/4 HUS-817000612
...
152
CABLE.CLUTCH.MANUAL. HUS-532435111
...
--
MANDREL.ASM.SUB-NON.GR NOT SHOWN HUS-532192870
...
--
NOT SHOWN HUS-532431550
