Husqvarna LZ11577 - 96041013801 (2010-09) Tractor/Ride Mower

Model: LZ11577 - 96041013801 (2010-09)

Back To Assemblies

Save Part Not Listed?
product name

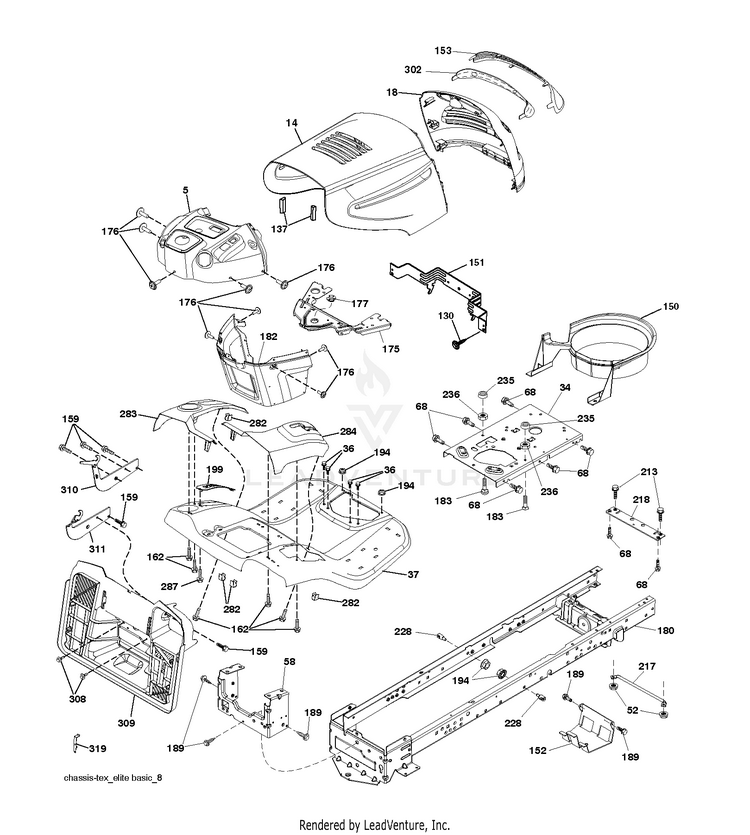

CHASSIS ENCLOSURES

...
...
5
DASH.P/L.TEX.CBL.CL.N/CHK.BLAC HUS-532411764
...
14
HUS-532186707
...
18
GRILLE HUS-532426792
...
34
HUS-580910801
...
36
Bolt 5/16-18 unc x 3/4 HUS-532171877
...
37
HUS-532439460
...
52
Nut Lock Hex W/Ins. 5/16-18 Unc P HUS-873800500
...
58
DRAWBAR UPPER 2PC SMALL FENDER HUS-532412280
...
68
Screw, Hex Washer Head Threaded, Rolling 5/16-18 x 1/2 HUS-817490508
...
130
SCREW.#10 X 0.750.BOS THREAD HUS-532416358
...
137
BUMPER.HOOD.LARGE.1.75" HUS-532184921
...
150
DUCT.INTAKE.AIR.KAW HUS-532184461
...
151
BRACKET PIVOT HUS-532407807
...
152
SHIELD BROWNING HUS-532199535
...
153
LENS.GRILLE.BASIC.BAR.LT.CLR HUS-532189837
...
159
SCREW, 3/8-16X3/4 HUS-817000612
...
162
SCREW.HI-LO.CONSOLE HUS-532142432
...
175
CROSSMEMBER.LT HUS-532193243
...
176
SCREW.#10-24X5/8.RN.QU HUS-532400776
...
177
BUSHING STEERING HUS-532195228
...
180
HUS-532414685
...
182
DASH.LOWER.LT.CCS HUS-532193057
...
183
BOLT.5/16-18X1-1/4 FULL THD HUS-874520520
...
189
BOLT.HEX.HD.WASHER.5/16-18X.75 HUS-532428867
...
194
NUT LOCK HEX FLANGE 5/16-18 HUS-873900500
...
199
HUS-532418739
...
213
HCS.5/16-18X3/4 HUS-539976934
...
217
ROD.PIVOT.HOOD HUS-532409167
...
218
X-PIECE.HOOD.STOP.NON/ HUS-532196395
...
228
STUD.FASTNER.W/ANTI-ROTATE HUS-532195161
...
235
SPACER FENDER HUS-532406129
...
236
NUT.CENTERLOCK.5/16- HUS-873930500
...
282
CLIP.RETAINER.CONSOLE.LT.HUSQ HUS-532414110
...
283
HUS-532440361
...
284
HUS-532425945
...
287
SCREW HUS-817600406
...
302
INSERT LENS REFLECTIVE HUS-532183823
...
308
BOLT, 5/16-18 X 1 3/4 HUS-532171877
...
309
HUS-532430246
...
310
HUS-532436888
...
311
HUS-532436889
...
319
Bracket Actuator Bagger CRD HUS-532174662
