Husqvarna LZ 30 (968999677) (2007-12) Ride Mower (Turf Care)

Model: LZ 30 (968999677) (2007-12)

Back To Assemblies

Save Part Not Listed?
product name

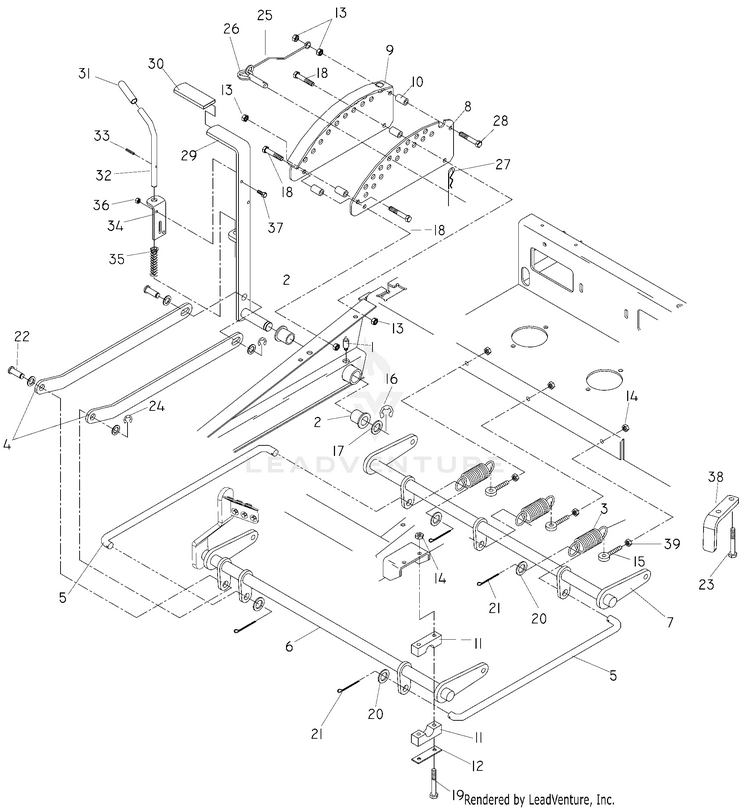

Deck Lift

...
...
1
GREASE ZERK LONG HUS-539104761
...
2
BUSHING, FLANGED HUS-539101232
...
3
DECK LIFT SPRING HUS-539104760
...
4
LIFT LINKAGE,PAINTED HUS-539105050
...
5
CONNECTING LINK HUS-539104310
...
6
LIFT SHAFT ASM, FRONT HUS-539132170
...
7
SHAFT LIFT REAR HUS-539108354
...
8
ADJ. PLATE PAINTED HUS-539104323
...
9
ADJ. PLATE WLDMNT HUS-539104321
...
10
DECK LIFT SPACER HUS-539104530
...
11
PILLOW BLOCK HUS-539104808
...
12
REINFORCEMENT.PLATEX431 HUS-584392702
...
13
GSPW Nuts HUS-596240901
...
14
Nuts HUS-596583702
...
15
EYEBOLT, RH HUS-539101982
...
16
E-RING 7/8 HUS-539101802
...
17
BSHG .875 X 1.375 X .074 ZD HUS-539923787
...
18
Bolts HUS-596434201
...
19
HCS 5/16C X 2-3/4 HUS-539101721
...
20
WASHER 5/8 FLAT HUS-539976982
...
21
COTTER PIN HUS-539990654
...
22
CLEVIS PIN HUS-539105060
...
23
BOLT 3/8-16 X 1.0 HUS-539107476
...
24
E-RING 5/8 HUS-539105069
...
25
LANYARD HUS-539105059
...
26
Pins HUS-596917701
...
27
Pins HUS-596273101
...
28
SCREW 3/8C X 2 3/4 HEX CAP HUS-539102612
...
29
LIFT LEVER WELDMENT HUS-539108322
...
30
GRIP HUS-539102515
...
31
GRIP HUS-539101050
...
32
PIN HUS-539104523
...
33
ROLL PIN HUS-539106532
...
34
PIN MT, UPPER HUS-539103534
...
35
SPRING HUS-539101058
...
36
NUT 1/4C CENTER LOCK HUS-539990761
...
37
Screws HUS-596230901
...
38
DECK STOP HUS-539111075
...
39
GSPW Hardware HUS-596039201
