Husqvarna LZ 30 (968999677) (2007-12) Ride Mower (Turf Care)

Model: LZ 30 (968999677) (2007-12)

Back To Assemblies

Save Part Not Listed?
product name

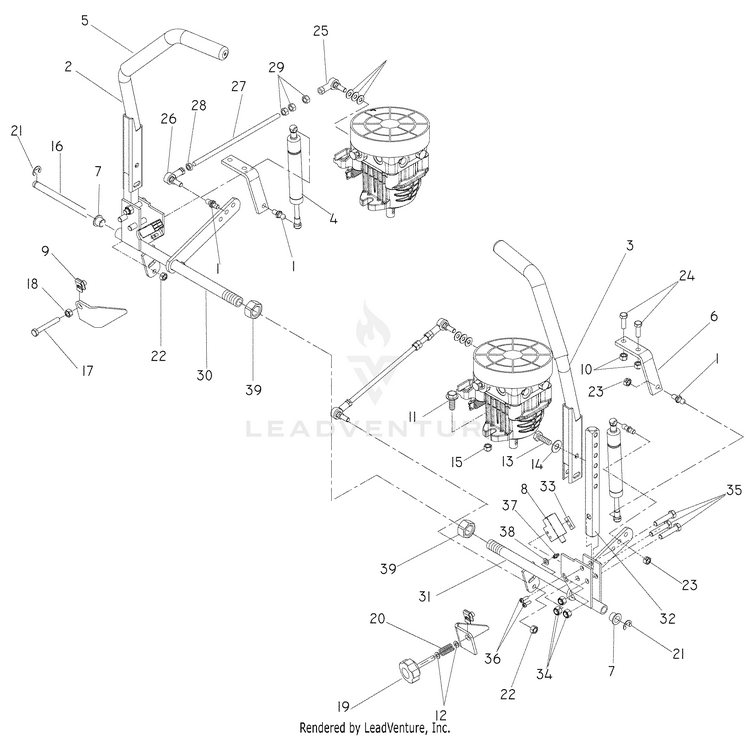

Steering

...
...
1
Studs HUS-594056301
...
2
ASSEMBLY, DRIVE LEVER RT HUS-539131623
...
3
ASSEMBLY, DRIVE LEVER LT HUS-539131622
...
4
DAMPENER W/EXT SEAL HUS-539131932
...
5
GRIP - DRIVE LEVER 12" HUS-539130894
...
6
DAMPENER BRACKET HUS-539111074
...
7
BUSHING HUS-539102519
...
8
SWITCH, INTERLOCK HUS-539101080
...
9
U-CLIP 5/16-18 NUT RETAINER HUS-539104763
...
10
Nuts HUS-596583702
...
11
Screws HUS-596583101
...
12
GSPH HUS-596134901
...
13
Bolts HUS-596564401
...
14
WASHER, 3/8 DISC SPRING SPEC HUS-539102593
...
15
Nuts HUS-595305901
...
16
CONTROL SHAFT HUS-539110833
...
17
HCS 5/16-18X1-3/4 TPBLT HUS-539108394
...
18
Nuts HUS-596582601
...
19
ADJUSTMENT KNOB HUS-539103003
...
20
COMPRESSION SPRING HUS-539111039
...
21
Washers HUS-596671501
...
22
NUT 5/16F NYLOC HUS-539110943
...
23
Nuts HUS-596580701
...
24
Bolts HUS-596580801
...
25
SPHERICAL ROD END, RH HUS-539110603
...
26
SPHERICAL ROD END, LH HUS-539110604
...
27
PUMP CONTROL LINK HUS-539105279
...
28
Nuts HUS-596584101
...
29
Hardware HUS-596040901
...
30
CONTROL, RT HUS-539131332
...
31
CONTROL, LT HUS-539131333
...
32
CONTROL ARM HUS-539110638
...
33
TAPPED PLATE HUS-539102678
...
34
GSPW Nuts HUS-596240901
...
35
Bolts HUS-596583901
...
36
Screws HUS-596039001
...
37
GSPW Zerks HUS-596899901
...
38
WASHER HUS-539103547
...
39
NUT 3/4 X 16 HEX CTR HUS-539990820
