Husqvarna LZ 30 (968999677) (2007-12) Ride Mower (Turf Care)

Model: LZ 30 (968999677) (2007-12)

Back To Assemblies

Save Part Not Listed?
product name

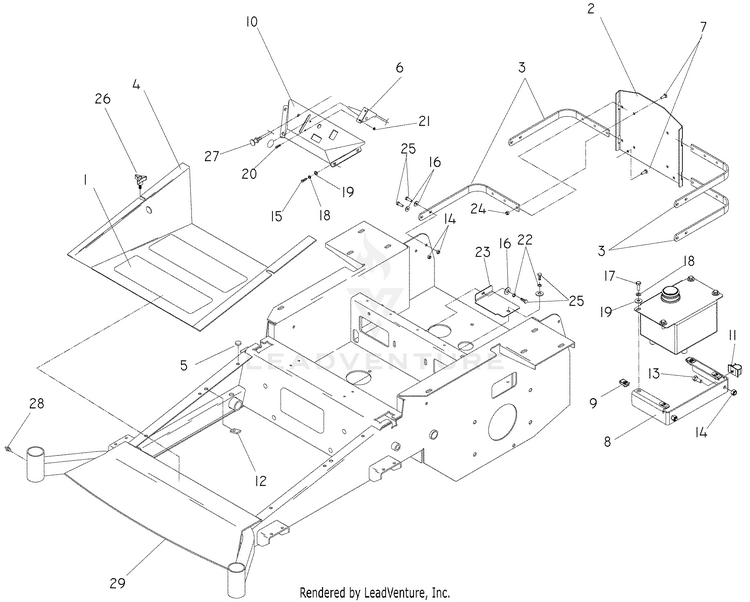

Chassis/See S/N Break

...
...
1
ANTI-SKID PAD HUS-539977778
...
2
XP GUARD, BLACK HUS-539110976
...
3
ENGINE SHROUD BRKT HUS-539106961
...
4
FOOT PLATE WIDMT HUS-539104721
...
5
GROMMET, BUMPER HUS-539102587
...
6
THROTTLE HUS-597524002
...
7
GSPW Bolts HUS-595901601
...
8
TANK MOUNT HUS-539110814
...
9
1/4C - U TYPE RETAINER HUS-539110813
...
10
CONSLE, ORANGE HUS-539110953
...
11
PUSH-MOUNT WIRE CLIP HUS-539110815
...
12
U-CLIP 5/16-18 NUT RETAINER HUS-539104763
...
13
SCREW HEXAGON HEAD SCREW 5/16- HUS-596030501
...
14
Nuts HUS-596583702
...
15
SCREW 1/4 X 5/8 HUS-539990362
...
16
GSPH HUS-596134901
...
17
Screws HUS-596230901
...
18
Washers HUS-596564801
...
19
Washers HUS-597338501
...
20
Screws HUS-596582801
...
21
Hardware HUS-596040801
...
22
WASHER SPRING LOCK WASHER WITH HUS-596238801
...
23
IDLER COVER HUS-539105716
...
24
Nuts HUS-596580701
...
25
Bolts HUS-596580801
...
26
GSPW Knobs HUS-597783101
...
27
CHOKE CONTROL, COMPLETE HUS-539102733
...
28
Zerks HUS-596623501
...
29
FRAME W/DECALS HUS-539132278
...
xx
FRAME W/DECALS 52/61 HUS-539132229
...
xx
FRAME W/DECALS HUS-539132279
...
xx
FRAME W/DECALS 72" HUS-539132232
Schematic Image Zoomed
