Husqvarna LTH19530 - 96041016902 (2011-01) Riding Tractor

Model: LTH19530 - 96041016902 (2011-01)

Back To Assemblies

Save Part Not Listed?
product name

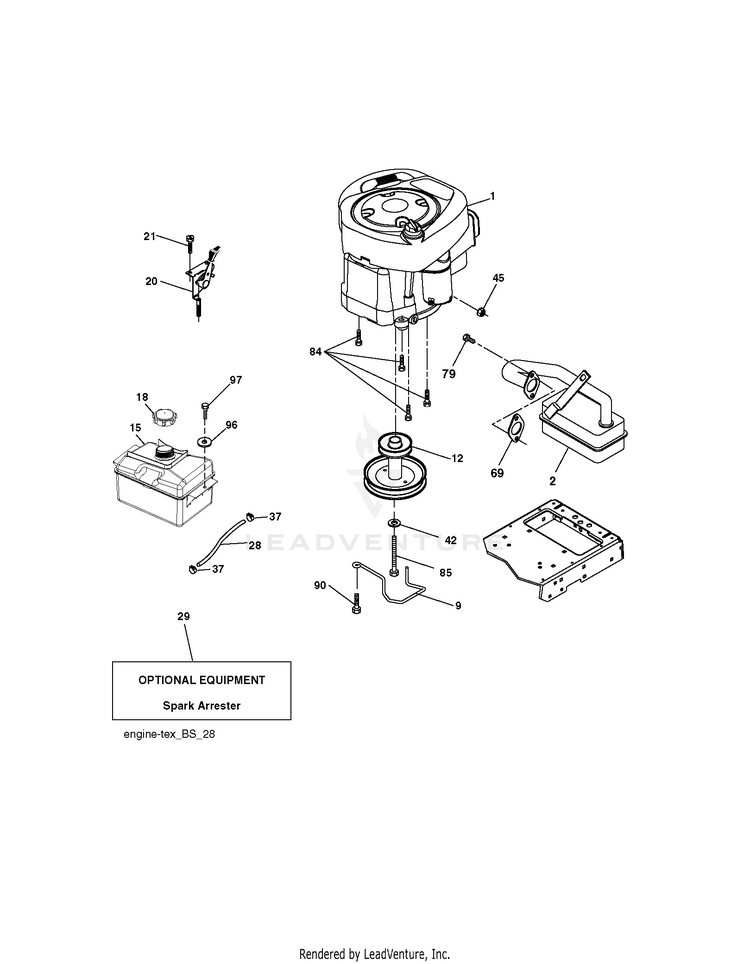

ENGINE

...
...
37
HOSE CLAMP HUS-532123487
...
84
SCREW.3/8-16 HUS-817060620
...
96
Washers HUS-596135301
...
79
Screws HUS-596134201
...
85
BOLT.HEX.7/16-20X4.GR5.1.5BLUE HUS-501606501
...
18
CAP.2.25'.VENTED.RATCHET.EPA HUS-581075501
...
2
MUFFLER.LT.BRIGGS.14HP.IC/OHV HUS-532137352
...
69
GASKET.ENG.1.313 ID.TIN PLATED HUS-532272293
...
15
FUEL.TANK.ASM.NON-EPA HUS-581289901
...
90
SCREW 3/8-16X1 HUS-817000616
...
9
KEEPER.BELT.ENGINE.3.25 (3 2) HUS-532194319
...
45
NUT HEX_LRG FLG_1_4-20_LOCK HUS-586668901
...
12
PULLEY.ENG.CL.MECH.SLVR.LT/YT HUS-532140186
...
97
SCREW HEXWSHR 1/4-20X3/4 HUS-817670412
...
42
Washers HUS-596238901
...
29
KIT.SPARK ARRESTOR 794945 B&S HUS-532137180
...
1
ENGINE BRIGGS & STRATTON MODEL 31Q677-3493-G1 HUS-000000000
...
28
HOSE 1/4" LOW PERMEATION FUEL HUS-587044820
...
21
Screws HUS-596321701
...
20
CONTROL.TH/CK.C.BLACK HUS-532176636
