Husqvarna LTH18538 - 96043010500 (2010-04) Riding Tractor

Model: LTH18538 - 96043010500 (2010-04)

Back To Assemblies

Save Part Not Listed?
product name

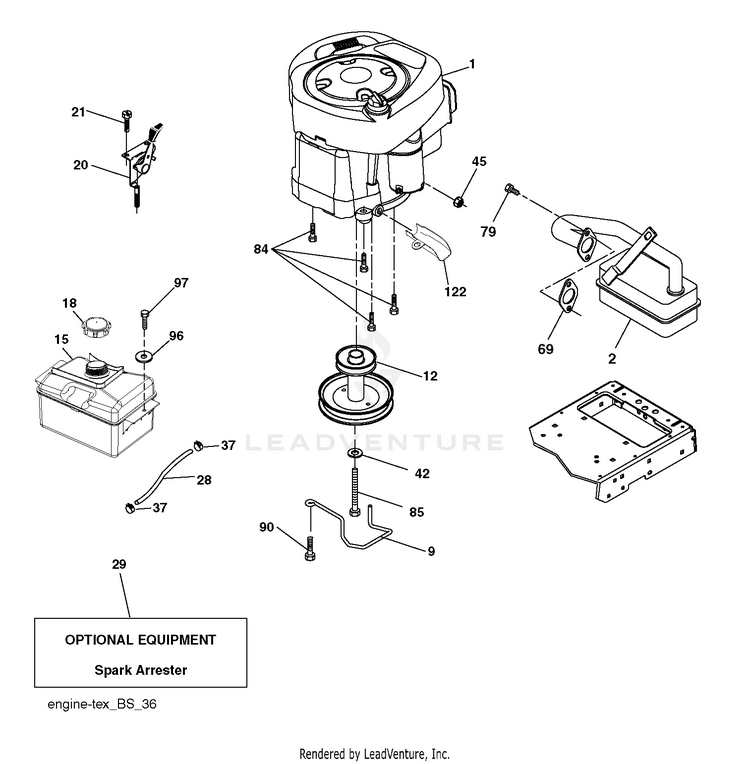

ENGINE

...
...
12
ENGINE.PULLEY HUS-586478501
...
90
SCREW 3/8-16X1 HUS-817000616
...
28
HOSE 1/4" LOW PERMEATION FUEL HUS-587044864
...
20
CONTROL.TH/CK.C.BLACK HUS-532176636
...
15
TANK ASM.FRONT.CARB.1.5GA.E10 HUS-532430646
...
79
Screws HUS-596134201
...
42
Washers HUS-596238901
...
2
MUFFLER.LT.BRIGGS.14HP.IC/OHV HUS-532137352
...
37
HOSE CLAMP HUS-532123487
...
18
CAP ASM.FUEL.2.25"FRT.CARB HUS-532430219
...
97
SCREW HEXWSHR 1/4-20X3/4 HUS-817670412
...
122
EXTENSION DRAIN OIL HUS-532421922
...
21
Screws HUS-596321701
...
45
NUT HEX_LRG FLG_1_4-20_LOCK HUS-586668901
...
96
Washers HUS-596135301
...
85
BOLT.HEX.7/16-20X4.GR5.1.5BLUE HUS-501606501
...
69
GASKET.ENG.1.313 ID.TIN PLATED HUS-532272293
...
1
B&S HUS-000000000
...
9
Keepers HUS-596501502
...
29
KIT.SPARK ARRESTOR 794945 B&S HUS-532137180
...
84
SCREW.3/8-16 HUS-817060620
