Husqvarna LTH1842 - 96011022200 (2006-01) Riding Tractor

Model: LTH1842 - 96011022200 (2006-01)

Back To Assemblies

Save Part Not Listed?
product name

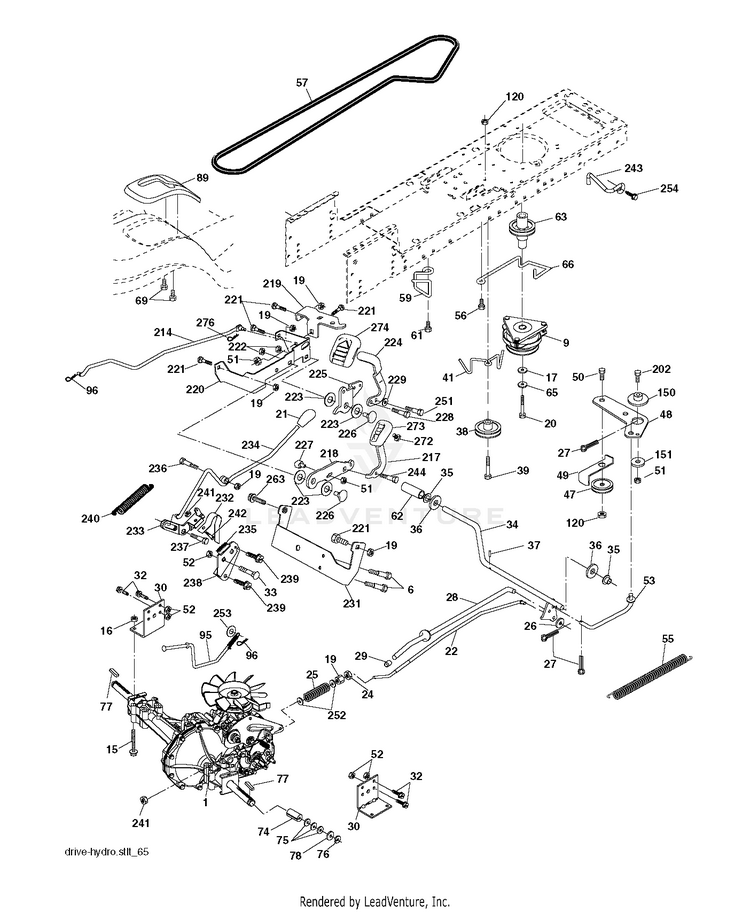

DRIVE

...
...
226
BOLT PIVOT SPACER HUS-532174902
...
24
NUT.HEX.3/8-16UNC HUS-873220600
...
120
NUT.HEX.FLANGE.3/8-16.LOCKNUT HUS-532409149
...
242
Screws HUS-596230901
...
243
BRACKET, ANTI-ROTATION HUS-532190736
...
89
NEEDS DESCRIPTION HUS-532191915
...
16
Hardware HUS-596040501
...
65
Washers HUS-596238901
...
263
SCREW, 3/8-16X3/4 HUS-817000612
...
21
NEEDS DESCRIPTION HUS-532181454
...
251
Screws HUS-593337601
...
219
BRACKET FREST PDL HUS-532174839
...
28
ROD, PARKING BRAKE HUS-532175765
...
238
ARM MTG.CRUISE SECTOR HUS-532175807
...
273
NEEDS DESCRIPTION HUS-532179610
...
36
Washers HUS-596933401
...
52
Hardware HUS-596040501
...
37
PIN.ROLL.3/16 X 1" HUS-532001572
...
237
SHOULDER BOLT 5/16-18TT HUS-532170165
...
231
NEEDS DESCRIPTION HUS-532402550
...
77
SQUARE KEY HUS-532123583
...
75
WASHER HUS-532121749
...
202
Bolts HUS-596136201
...
41
KEEPER, BELT IDLER HUS-532175556
...
63
PULLEY- ENGINE HUS-532174607
...
57
DRIVE BELT, LTH & YTH TRACTORS HUS-532140294
...
9
KIT.SVC.CLUTCH.ELE.180505 HUS-583389701
...
232
ACUATOR CRUISE DISENGAGE HUS-532175570
...
227
CAM REVERSE PEDAL LT HUS-532174710
...
56
SCREW.3/8-16 HUS-817060620
...
39
BOLT HUS-872110622
...
20
BOLT.HEX.7/16-20X4.GR5.1.5BLUE HUS-501606501
...
1
Transaxle Hydro Gear 374-0510 HUS-000000000
...
59
KEEPER, BELT CENTER HUS-532169691
...
55
SPRING, RETURN LT HUS-532105709
...
225
ARM CONTROL PEDAL FORWARD HUS-532174712
...
224
PEDAL FORWARD HUS-532174736
...
234
LEVER CONTROL CRUISE HUS-532174858
...
241
NUT HEX_LRG FLG_1_4-20_LOCK HUS-586668901
...
236
BOLT HUS-532128903
...
214
LINK TRANSAXLE HUS-532174735
...
47
PULLEY IDLER HUS-532139245
...
32
SCREW HEXAGON HEAD SCREW 5/16- HUS-596030501
...
220
BRACKET MTG.PDL CONTROL HUS-532174711
...
76
E-RING LT HUS-812000001
...
218
ARM CONTROL PEDAL REVERSE HUS-532174713
...
222
Nut, Crownlock Hex 7/16-14 unc HUS-873680700
...
69
Screws HUS-596134101
...
62
PAD, FOOT PEDAL HUS-510089501
...
78
WASHER HUS-532121748
...
252
Washers HUS-596140201
...
229
WASHER.SERRATED.5/16X.75 HUS-532176451
...
151
Washers HUS-596135501
...
48
BELLCRANK, CLUTCH HUS-532154407
...
6
BOLT.5/16-18UNCX3/4 W/SEMS.BLK HUS-532171877
...
34
SHAFT, FOOT PEDAL HUS-532175578
...
95
NEEDS DESCRIPTION HUS-532195631
...
253
WASHER HUS-532179422
...
49
SERVICE KIT RETAIN BELT RETAIN HUS-531151801
...
244
Bolts HUS-594094101
...
30
SERVICE KIT BRACKET BRKT HUS-531149601
...
239
Screws HUS-596030701
...
276
CLIP RETAINER HUS-532178062
...
223
WASHER NYLON HUS-532174840
...
217
PEDAL REVERSE HUS-532179433
...
274
COVER PEDAL FORWARD HUS-532175646
...
22
ROD.BRAKE.HG-0510.PEDAL.CONTRL HUS-532175896
...
221
Bolt - Rd. Hd. Sq. Neckiage 3/8 16 x 3/4 HUS-872140606
...
150
SPACER, RETAINER HUS-532175456
...
25
SPRING.ROD.BRAKE.GR HUS-583201301
...
38
PULLEY IDLER COMPOSITE HUS-532179114
...
19
Nuts HUS-596322601
...
27
Pins HUS-596029501
...
29
PLUNGER CAP HUS-532071673
...
53
LINK.CLUTCH.7.66.2005 HUS-532199652
...
15
Bolts HUS-595316601
...
17
WASHER HUS-532126197
...
235
SECTOR CONTROL CRUISE HUS-532174857
...
66
SERVICE KIT BELT KEEPER HUS-531151001
...
61
Screw, Hex Washer Hd. 3/8 - 16 x 7/8 HUS-817490614
...
51
Nuts HUS-596322601
...
254
SCREW 3/8-16X1 HUS-817000616
...
240
SPRING RETURN CRUISE CONTROL HUS-532175610
...
233
PAWL CONTROL CRUISE HUS-532174856
...
228
BOLT, SHOULDER 5/16-18 HUS-532171873
...
50
GSPW Bolts HUS-596136101
...
26
WASHER PLAIN WASHER 3/8 X 0.08 HUS-596565301
...
272
SCREW, 5/16-18 X 1/2 HUS-817670508
...
35
BEARING.NYLON HUS-532120183
...
96
RETAINER M HUS-532004497
...
33
GSPW Bolts HUS-595901601
...
74
SPACER AXLE HUS-532137057
