Husqvarna LTH171 - 96041020800 (2010-08) Riding Tractor

Model: LTH171 - 96041020800 (2010-08)

Save Part Not Listed?
product name

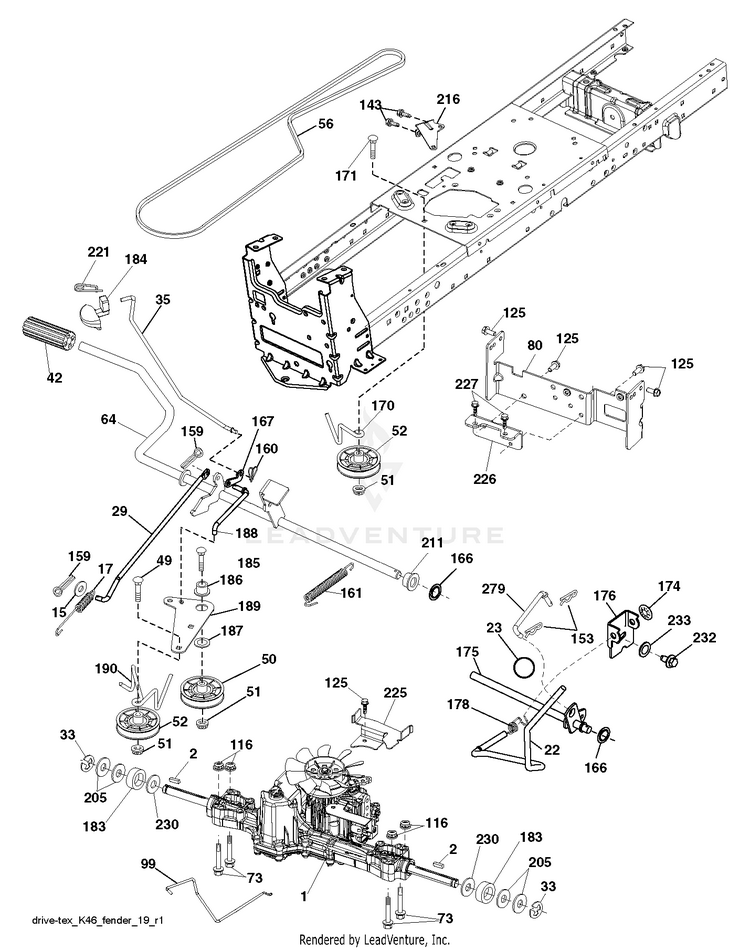

DRIVE

...
...
184
HANDLE.PARKNG BRK.PRED.LT.428 HUS-532411484
...
80
SERVICE KIT TORQUE STRAP BLACK HUS-531064101
...
49
Bolts HUS-596136201
...
185
BOLT HUS-872110622
...
42
PAD, FOOT PEDAL HUS-510089501
...
186
SPACER.RETAINER HUS-532194321
...
188
LINK.CLUTCH.GROUND DRIVE.LONG HUS-582217001
...
73
Bolts HUS-596136501
...
189
SERVICE KIT BELLCRANK HUS-531169001
...
170
KEEPER.V-IDLER.CENTER. HUS-532194322
...
166
NUT.PUSH.625 HUS-532429164
...
116
GSPW Nuts HUS-596135701
...
225
SERVICE KIT KEEPER BELT KEEPER HUS-531149001
...
50
IDLER.FLAT.910.OFFSET HUS-532194327
...
211
BUSHING.SHAFT.BRAKE.HAND HUS-532196212
...
159
Pins HUS-596029501
...
171
Bolts HUS-596136301
...
125
BOLT.HEX.HD.WASHER.5/16-18X.75 HUS-532428867
...
1
Transaxle, TUFFTORQ K46 BA HUS-000000000
...
279
LINK.SHIFT.T/A.K46.FEND.TX HUS-532406207
...
51
NUT.HEX.FLANGE.3/8-16.LOCKNUT HUS-532409149
...
15
WASHER PLAIN WASHER 3/8 X 0.08 HUS-596565301
...
143
Screws HUS-596030701
...
183
SPACER AXLE HUS-532137057
...
167
SERVICE KIT LATCH LATCH.BRAKE. HUS-531152901
...
178
SPRING.SHIFT.GT2006 HUS-532197456
...
205
WASHER HUS-532121748
...
99
ROD.SPRING.BYPASS.K46.LT.Z HUS-532415742
...
227
SCREW HEXAGON HEAD SCREW 5/16- HUS-596030501
...
56
Belts HUS-592855201
...
17
SPRING.BRAKE.K46.GREEN HUS-532413678
...
174
NUT.PUSH.500.2006 HUS-532197289
...
153
RETAINER M HUS-532004497
...
22
ROD.SHIFT.FENDER.TLT.2006 HUS-532197660
...
23
KNOB.DUCKHEAD.1/2 HUS-532121274
...
176
ARM.CLEVIS.ROD.SHIFT HUS-532196214
...
161
SPRING, RETURN LT HUS-532105709
...
160
GSPW Retainers HUS-596029401
...
64
SHAFT.ASM.PEDAL.BRAKE. HUS-532196200
...
35
Rods HUS-596874801
...
221
RETAINER.SPRING.CLIP.H HUS-532403187
...
233
Washers HUS-596135201
...
226
SERVICE KIT BRACKET HUS-531170501
...
187
Washers HUS-596135501
...
29
ROD.BRAKE.K46 HUS-532403806
...
190
KEEPER.BELLCRANK.DRIVE HUS-532194318
...
175
SHAFT ASM SHIFT HUS-532406208
...
216
BRACKET.PULLEY.IDLER.W/TEX HUS-532196131
...
2
SQUARE KEY HUS-532123583
...
33
E-RING LT HUS-812000001
...
232
Bolts HUS-596238601
...
52
IDLER.V-GROOVE.910.OFFSET HUS-532194326
...
230
WASHER.HARDENED HUS-532188967

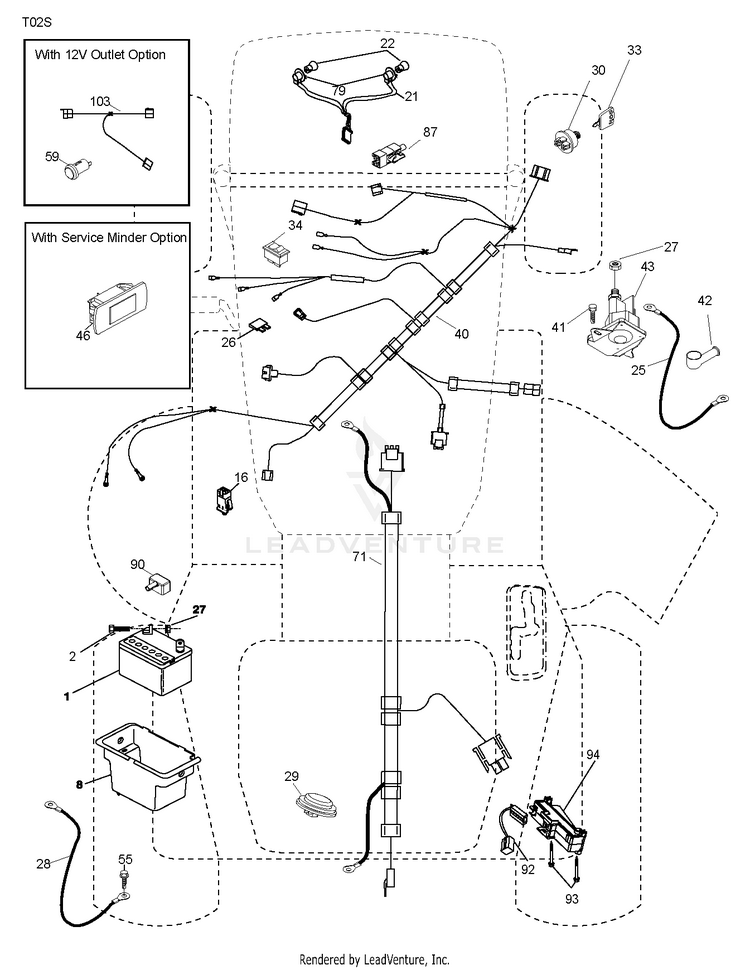

ELECTRICAL

...
...
87
SWITCH.INTRLCK.CLUTCH. HUS-532197802
...
30
SWITCH.IGN.DELTA.W.LGH.ROS HUS-532193350
...
90
COVER.TERMINAL.BATTERY HUS-532435395
...
21
HARNESS.LIGHT W/4152J BULBS HUS-532400252
...
28
CABLE.BLACK.18"REAR.BA HUS-532198885
...
41
Screws HUS-596437001
...
16
SWITCH INTERLOOK PUSH-IN HUS-532176138
...
8
BOX.BATTERY.MNT.REAR.L HUS-532193228
...
34
SWITCH LT HUS-532110712
...
22
LIGHTBULB HUS-532004152
...
29
SWITCH.SEAT.DELTA.OPC. HUS-532401545
...
26
FUSE 20AMP HUS-532175158
...
92
HARNESS.PIGTAIL.CONSLE HUS-532196615
...
55
BOLT.5/16-18UNCX3/4 W/SEMS.BLK HUS-532171877
...
71
HARNESS.IGN.CHASS.TEX.REAR.BAT HUS-532400449
...
2
BOLT.HEX.1/4.X.3/4.DICHROMATE HUS-874760412
...
43
Solenoids HUS-582042802
...
94
MODULE.REVERSE.ROS HUS-532191834
...
40
HARNESS IGN. DASH HUS-532401098
...
42
COVER.TERMINAL.RED HUS-532154336
...
27
NUT HEX_LRG FLG_1_4-20_LOCK HUS-586668901
...
1
BATTERY.DRY.30.AMP HUS-532123899
...
33
KEY.CHAIN.BLISTER.PACK.GEN.INT HUS-532411935
...
93
Bolts HUS-596039601
...
79
BULB HOLDER ASM. HUS-532175242
...
25
CABLE.STARTER.6GA.BL/RED.14. HUS-532412894
...
46
GUAGE.SRVCMNDR.HRMTR. HUS-594919101

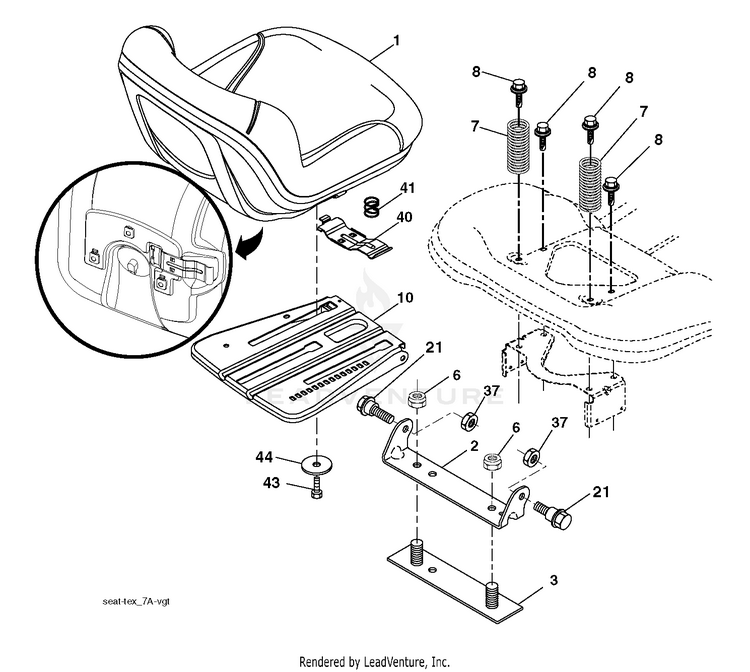

SEAT

...
...
1
SEAT.TH130.GREY.HUSQ.TEX HUS-532439819
...
3
STRAP HUS-532140675
...
6
Nuts HUS-596322601
...
43
BOLT HUS-874760612
...
2
BRKT.PIVOT.FENDER HUS-532180166
...
7
SPRING.COMPRESSION.SEAT.BLACK HUS-587613301
...
37
Hardware HUS-596040501
...
21
BOLT.5/16-18X5/8.SHOULDER HUS-587907801
...
40
Handles HUS-595088102
...
44
WASHER.13/32x2 3/8x12GA HUS-583789501
...
8
BOLT.5/16-18UNCX3/4 W/SEMS.BLK HUS-532171877
...
10
KIT.PLATE.SEAT HUS-596768801
...
41
SPRING.LATCH.SEAT.TEX HUS-532198200

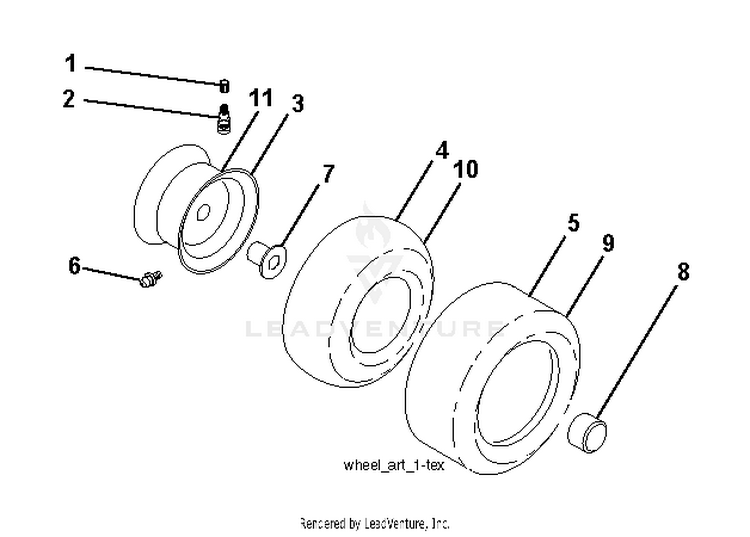

WHEELS & TIRES

...
...
8
CAP.HUB.FRONT.LT.BLACK HUS-532104757
...
2
VALVE STEM LT HUS-532065139
...
9
TIRE.20X10-8.TURF.SAVER Rear 20 x 10-8C HUS-532125833
...
4
TUBE.5.3/4.5/6 Front (Service Item Only) HUS-532059904
...
11
RIM.ASM.8X7.REAR.SILVER Rear 8" HUS-532106108
...
3
RIM.ASM.6X4.5.FRONT.SILVER Front 6" HUS-532106732
...
6
FITTING LT. (Front Wheel Only) HUS-532000278
...
- -
6, 24OZ PNUEMASEAL BOTTLES HUS-576707201
...
1
VALVE CAP HUS-532059192
...
5
TIRE.15X6-6.TURF.SAVER.FRONT Front 15 x 6.0-6 HUS-532122073
...
7
BEARING.FLANGE (Front Wheel Only) HUS-532009040
...
10
TUBE - UNIVERSAL FOR 8" RIM Rear (Service Item Only) HUS-532007152
