Husqvarna LTH1542 - 96013000900 (2005-10) Riding Tractor

Model: LTH1542 - 96013000900 (2005-10)

Back To Assemblies

Save Part Not Listed?
product name

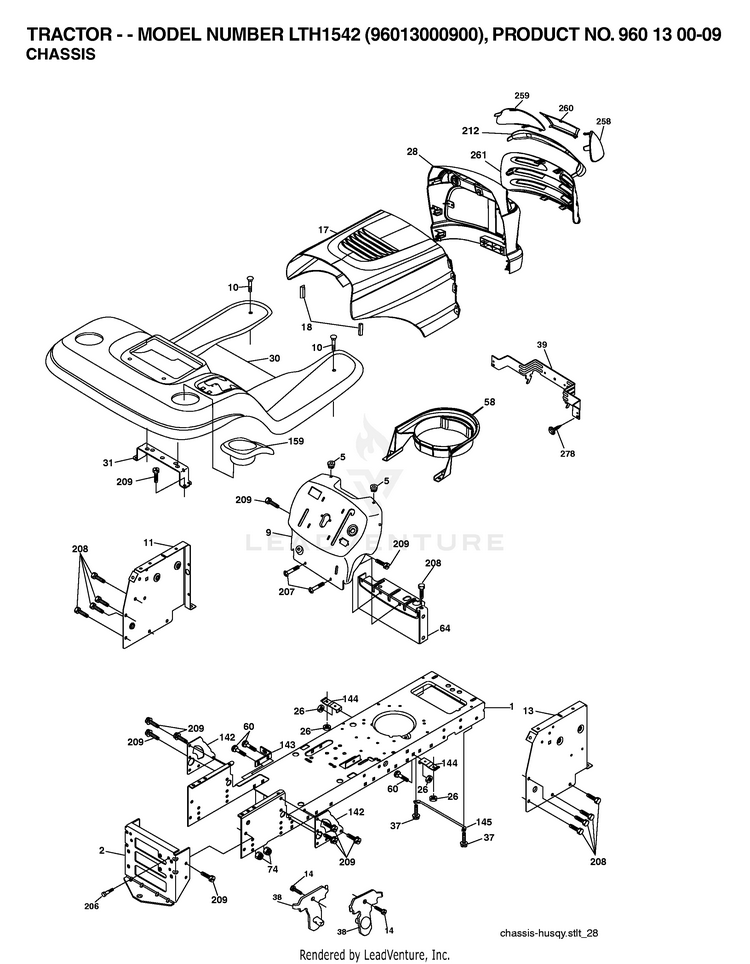

CHASSIS & ENCLOSURES

...
...
9
DASH.SLKSC.STL.PLM HUS-532195576
...
212
INSERT.LENS.REFLECTIVE HUS-532183548
...
18
BUMPER.HOOD.LARGE.1.75" HUS-532184921
...
159
CUPHOLDER, BLK HUS-532155123
...
2
DRAWBAR, 12GA HUS-532176554
...
1
KITS.CHASSIS.STAMPED.SERVICE HUS-579841401
...
38
BRACKET.ASM.PIVOT.MOWER.REAR HUS-532175710
...
- -
PLUG HUS-532187801
...
11
PANEL.DASH.LH.LTX HUS-532174996
...
143
BRACKET, SWAYBAR CHASSIS HUS-532186689
...
259
LENS.HUSQ.LASER LT.CLEAR.LH HUS-532183378
...
26
Nuts HUS-596322601
...
144
BRKT, FOOT REST HUS-532175582
...
260
COVER.LENS.HUSQ.( HAVE GRAY) HUS-532185429
...
13
PANEL DASH RH HUS-532181719
...
278
Screws HUS-596321701
...
64
DASH LOWER HUS-532154798
...
142
PLATE REINFORCEMENT HUS-532175702
...
145
ROD.PIVOT.HOOD HUS-532409167
...
- -
PLUG BUTTON T HUS-532005479
...
5
BUMPER.RUBBER.HOOD HUS-532155272
...
74
Nuts HUS-596322601
...
209
SCREW, 3/8-16X3/4 HUS-817000612
...
39
BRACKET PIVOT HUS-532407807
...
261
INSERT GRILLE HUS-532185433
...
258
LENS.HUSQ.LASER LT.CLEAR.RH HUS-532183379
...
206
SHOULDER BOLT 5/16-18TT HUS-532170165
...
30
KIT.FENDER.PNT.STL.W/CPH. HUS-583713401
...
14
Bolts HUS-596564001
...
207
SCREW, 5/16-18 X 1/2 HUS-817670508
...
60
Bolt - Rd. Hd. Sq. Neckiage 3/8 16 x 3/4 HUS-872140606
...
31
BRACKET.SUPPORT.FENDER HUS-532139976
...
10
Bolts HUS-596728201
...
37
Screws HUS-596030701
