Husqvarna LTH1542 - 96013000900 (2005-10) Riding Tractor

Model: LTH1542 - 96013000900 (2005-10)

Back To Assemblies

Save Part Not Listed?
product name

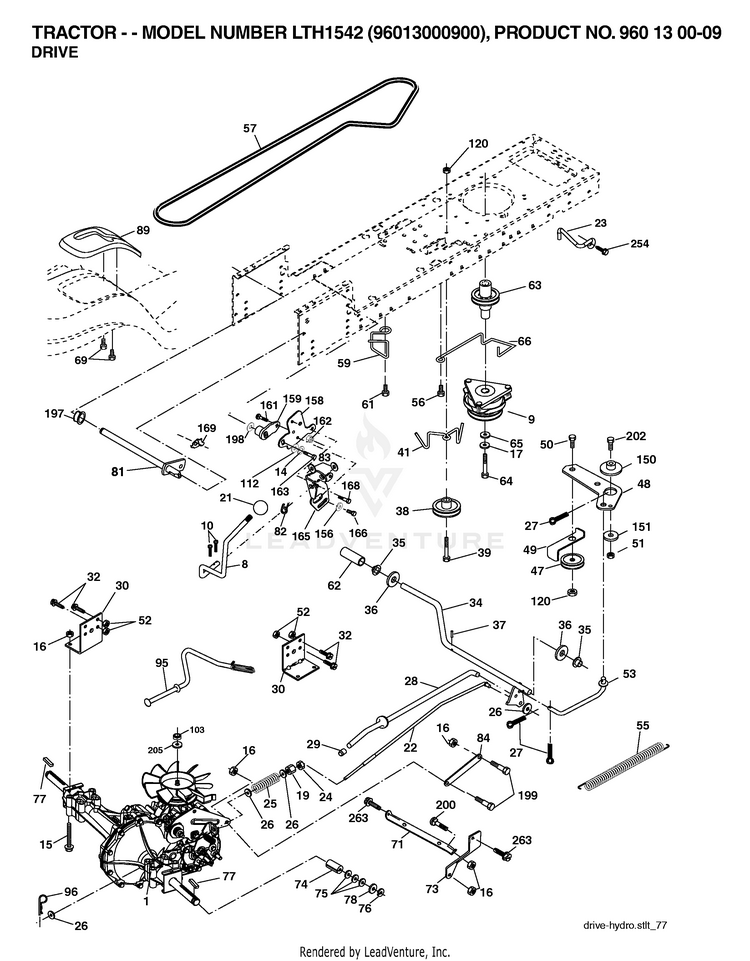

DRIVE

...
...
165
SERVICE KIT BRACKET BRACKET.PI HUS-531149501
...
27
Pins HUS-596029501
...
74
SPACER AXLE HUS-532137057
...
55
SPRING, RETURN LT HUS-532105709
...
59
KEEPER, BELT CENTER HUS-532169691
...
120
NUT.HEX.FLANGE.3/8-16.LOCKNUT HUS-532409149
...
25
SPRING, BRAKE ROD HUS-532151332
...
156
Washers HUS-596218801
...
200
Bolts HUS-595901501
...
82
SHIFT SPRING HUS-532165711
...
151
Washers HUS-596135501
...
161
BOLT.CARRIAGE.1/4-20 X 7/8 HUS-872110407
...
77
SQUARE KEY HUS-532123583
...
73
STRAP TORQUE RH HYDRO HUS-532169182
...
84
LINK TRANSAXLE HUS-532169843
...
26
WASHER PLAIN WASHER 3/8 X 0.08 HUS-596565301
...
163
Screws HUS-596230901
...
159
HUB.SHIFT HUS-532444304
...
205
Washers HUS-596040101
...
199
BOLT.5/16-18X.910 ST CLR ZINC HUS-596231101
...
17
WASHER HUS-532126197
...
19
Nuts HUS-596322601
...
62
PAD, FOOT PEDAL HUS-510089501
...
76
E-RING LT HUS-812000001
...
15
Bolts HUS-595316601
...
52
Hardware HUS-596040501
...
47
PULLEY IDLER HUS-532139245
...
169
PLATE.FASTENING.CROSS.SHAFT HUS-532165580
...
53
LINK.CLUTCH.7.66.2005 HUS-532199652
...
168
BOLT.SHOULDER.5/16-18X HUS-532165492
...
14
WASHER SPRING LOCK WASHER WITH HUS-596029801
...
57
DRIVE BELT, LTH & YTH TRACTORS HUS-532140294
...
56
SCREW.3/8-16 HUS-817060620
...
254
SCREW 3/8-16X1 HUS-817000616
...
37
PIN.ROLL.3/16 X 1" HUS-532001572
...
38
PULLEY IDLER COMPOSITE HUS-532179114
...
41
KEEPER, BELT IDLER HUS-532175556
...
36
Washers HUS-596933401
...
32
SCREW HEXAGON HEAD SCREW 5/16- HUS-596030501
...
48
BELLCRANK, CLUTCH HUS-532154407
...
23
BRACKET, ANTI-ROTATION HUS-532190736
...
81
SHAFT ASM CROSS TAPERED HUS-532165596
...
197
NYLINER SNAP 5/8" ID HUS-532169613
...
8
ROD.SHIFT.FENDER.ADJ.STLT HUS-532192502
...
49
SERVICE KIT RETAIN BELT RETAIN HUS-531151801
...
263
SCREW, 3/8-16X3/4 HUS-817000612
...
64
BOLT.HEX.7/16-20X4.GR5.1.5BLUE HUS-501606501
...
21
KNOB.DELUXE.(PISTOL.GRIP).BLAC HUS-532140845
...
89
CONSOLE, SHIFT,STL,AUTO,GRAY HUS-532192387
...
34
SHAFT, FOOT PEDAL HUS-532175578
...
24
NUT.HEX.3/8-16UNC HUS-873220600
...
112
Washers HUS-596039801
...
75
WASHER HUS-532121749
...
162
NUT HEX_LRG FLG_1_4-20_LOCK HUS-586668901
...
50
GSPW Bolts HUS-596136101
...
66
SERVICE KIT BELT KEEPER HUS-531151001
...
51
Nuts HUS-596322601
...
39
BOLT HUS-872110622
...
63
PULLEY- ENGINE HUS-532174607
...
158
BRACKET.SHIFT.MOUNT HUS-532437458
...
83
BUSHING HUS-734117771
...
29
PLUNGER CAP HUS-532071673
...
78
WASHER HUS-532121748
...
69
Screws HUS-596134101
...
22
ROD BRAKE HYDRO HUS-532169498
...
28
ROD, PARKING BRAKE HUS-532175765
...
103
NUT.HEX.1/2-20 HUS-873940800
...
166
Bolts HUS-594094101
...
9
KIT.SVC.CLUTCH.ELE.180505 HUS-583389701
...
16
Hardware HUS-596040501
...
71
STRAP TORQUE LH HYDRO HUS-532169183
...
65
Washers HUS-596238901
...
96
RETAINER M HUS-532004497
...
150
SPACER, RETAINER HUS-532175456
...
61
Screw, Hex Washer Hd. 3/8 - 16 x 7/8 HUS-817490614
...
10
Pins HUS-596029601
...
30
BRACKET TRANSAXLE HUS-532130807
...
202
GSPW Bolts HUS-596136101
...
95
CONTROL ASM. BYPASS HYDRO HUS-532170201
...
35
BEARING.NYLON HUS-532120183
...
198
WASHER.NYL.7/8IDX.105"HYD CR HUS-532169593
