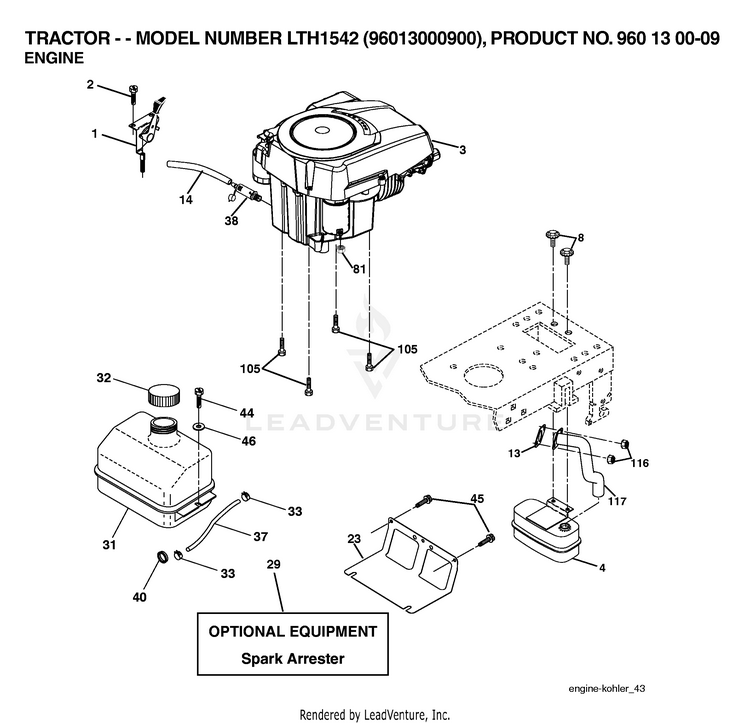

Husqvarna LTH1542 - 96013000900 (2005-10) Riding Tractor

Model: LTH1542 - 96013000900 (2005-10)

Back To Assemblies

Save Part Not Listed?
product name

ENGINE

...
...
105
SCREW 3/8-16X1 HUS-817120616
...
8
BOLT.5/16-18UNCX3/4 W/SEMS.BLK HUS-532171877
...
1
CONTROL.THROTTLE.LT/YT HUS-532170805
...
32
CAP.2.25'.VENTED.RATCHET.EPA HUS-581075501
...
31
FUEL TANK HUS-532407515
...
44
SCREW HEXWSHR 1/4-20X3/4 HUS-817670412
...
46
Washers HUS-596135301
...
13
GASKET.EXHAUST.KOHLER HUS-532185909
...
40
BUSHING.SNAP.NYL.BLK. HUS-532124028
...
81
NUT HEX_LRG FLG_1_4-20_LOCK HUS-586668901
...
117
TUBE.EXHAUST.KOHLER.COURAGE HUS-583955301
...
4
MUFFLER.SINGLE.CYL.KOHL/B&S HUS-532188655
...
38
VALUE.OIL.DRAIN HUS-532428287
...
29
KIT.SPARK ARRESTOR 794945 B&S HUS-532137180
...
33
HOSE CLAMP HUS-532123487
...
37
HOSE 1/4" LOW PERMEATION FUEL HUS-587044820
...
45
SCREW, 3/8-16X3/4 HUS-817000612
...
14
TUBE, DRAIN OIL ASM. HUS-532148456
...
2
Screws HUS-596437001
...
116
NUT.HEX.FLANGE.TOPLOCK HUS-532184362
...
23
SERVICE KIT SHIELD SHIELD.BROW HUS-531150701
