Husqvarna LTH1542 - 96013000900 (2005-10) Riding Tractor

Model: LTH1542 - 96013000900 (2005-10)

Back To Assemblies

Save Part Not Listed?
product name

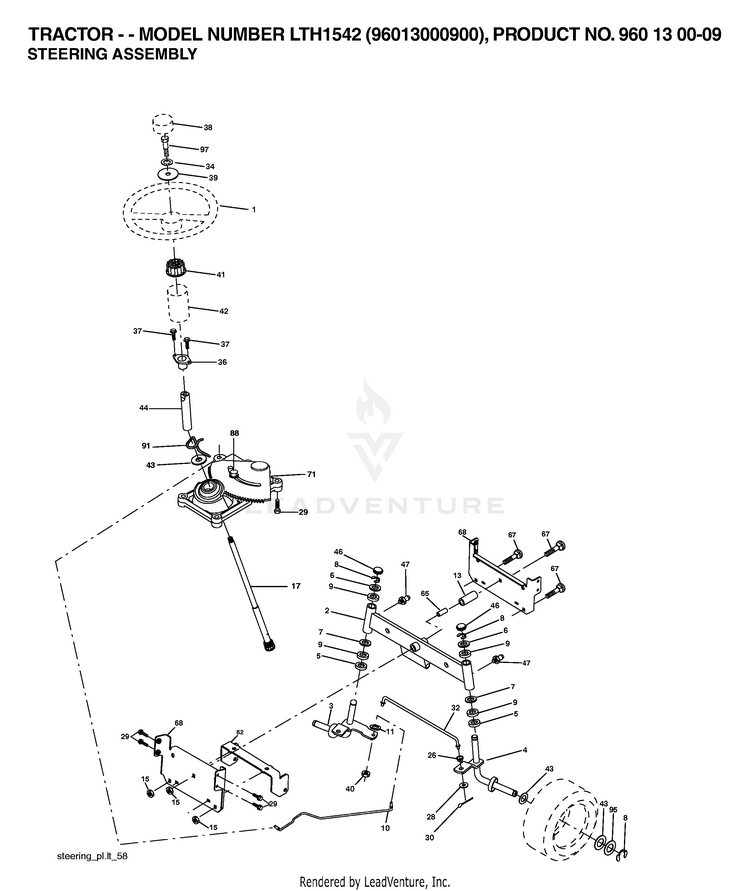

STEERING

...
...
6
WASHER HUS-532121748
...
46
CAP.SPINDLE.BLACK HUS-532121232
...
82
SERVICE.KIT BRACKET HUS-531170201
...
47
FITTING.GREASE.TAPERED HUS-532183226
...
91
CLIP.STEERING HUS-532175553
...
11
Washers HUS-596238701
...
29
SCREW, 3/8-16X3/4 HUS-817000612
...
4
KIT SPINDLE ASM.PNT.RH.15" HUS-596873801
...
97
BOLT HUS-874780564
...
32
ROD.TIE.WIRE.FORM HUS-532192757
...
34
WASHER SPRING LOCK WASHER WITH HUS-596238801
...
13
TUBE, PIVOT AXLE HUS-532136518
...
38
INSERT.CAP.STRG.WH.GRAY HUS-532193652
...
65
SPACER.BRACE.AXLE HUS-532414736
...
36
KIT.BUSHING.STEERING HUS-532155106
...
26
BUSHING.DRAGLINK (2 2) HUS-532126847
...
10
DRAGLINK.15".TIRES.2001 HUS-532175121
...
9
BEARING.STEERING.COLUMN HUS-532003366
...
43
WASHER HUS-532121749
...
95
WASHER.HARDENED HUS-532188967
...
28
WASHER HUS-819131414
...
17
SHAFT STEERING SPLINE HUS-532190753
...
30
Pins HUS-596029501
...
71
SERVICE KIT STEERING ASM HUS-531167801
...
2
SERVICE KIT AXLE HALF ASM HUS-531171101
...
15
NUT.HEX.FLANGE.3/8-16.LOCKNUT HUS-532409149
...
44
SHAFT.EXTEN.STRG.SPLINE HUS-532190752
...
8
RING CLIP HUS-812000029
...
39
Washers HUS-596040001
...
67
BOLT CARRIAGE HUS-872110618
...
88
BOLT, SHOULDER 7/16-20 HUS-532175118
...
40
NUT CROWNLOCK 3/8-24 HUS-873540600
...
3
KIT SPINDLE ASM.PNT.LH.15 HUS-596873901
...
7
WASHER HUS-819272016
...
41
KIT.SRVC.STEERINGSHAFT.ADAPTER HUS-587738905
...
37
SCREW.TT.#10-32X.5.3/8.FLANGE HUS-532152927
...
68
SERVICE KIT BRACE.AXLE.1 HUS-531167401
...
5
WASHER THRUST HUS-532006266
...
1
WHEEL.STEERING.LEGND2.GRY HUS-532186093
...
42
STEERING BOOT, GRAY HUS-532145054
