Husqvarna LTH154 - 96041034100 (2013-10) Tractors/Ride Mower

Model: LTH154 - 96041034100 (2013-10)

Back To Assemblies

Save Part Not Listed?
product name

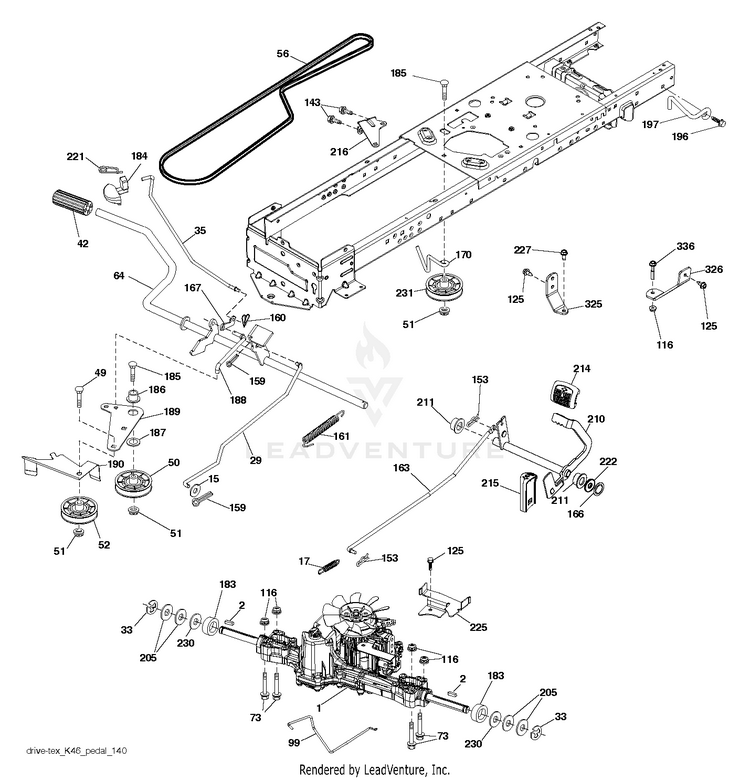

DRIVE

...
...
153
RETAINER M HUS-532004497
...
325
BRACKET TORQUE STRAP HUS-586431203
...
161
SPRING, RETURN LT HUS-532105709
...
2
SQUARE KEY HUS-532123583
...
167
SERVICE KIT LATCH LATCH.BRAKE. HUS-531152901
...
51
NUT.HEX.FLANGE.3/8-16.LOCKNUT HUS-532409149
...
214
PEDAL.FORWARD.PAD.TEX HUS-532421263
...
184
HANDLE.PARKNG BRK.PRED.LT.428 HUS-532411484
...
159
Pins HUS-596029501
...
50
IDLER.FLAT.910.OFFSET HUS-532194327
...
33
E-RING LT HUS-812000001
...
56
Belts HUS-592855201
...
187
Washers HUS-596135501
...
160
GSPW Retainers HUS-596029401
...
42
PAD, FOOT PEDAL HUS-510089501
...
166
NUT.PUSH.625 HUS-532429164
...
336
Bolts HUS-587259602
...
190
KEEPER.BELLCRANK.DRIVE HUS-532194318
...
215
PEDAL.REVERSE.TEX.GT.4 HUS-532401723
...
205
WASHER HUS-532121748
...
73
Bolts HUS-596136501
...
52
IDLER.V-GROOVE.910.OFFSET HUS-532194326
...
197
Stop HUS-585658602
...
227
SCREW HEXAGON HEAD SCREW 5/16- HUS-596030501
...
326
BRACKET TORQUE STRAP HUS-586001103
...
143
Screws HUS-596030701
...
183
SPACER AXLE HUS-532137057
...
170
KEEPER.CENTER SPAN.1.688 HUS-532413430
...
64
SHAFT.ASM.PEDAL.BRK.CNTR HUS-532197865
...
116
GSPW Nuts HUS-596135701
...
49
Bolts HUS-596136201
...
35
Rods HUS-596874801
...
211
BEARING.NYLON HUS-532120183
...
163
Rods HUS-593861001
...
221
RETAINER.SPRING.CLIP.H HUS-532403187
...
231
IDLER.V-GROOVE.1.688.OFFSET HUS-532407287
...
186
SPACER.RETAINER HUS-532194321
...
222
WASHER 21/32 X 1-1/4 X 10 GA. HUS-879212010
...
1
Transaxle, Tufftorq K46BT (426120) HUS-000000000
...
196
SCREW 3/8-16X1 HUS-817000616
...
185
BOLT HUS-872110622
...
230
WASHER.HARDENED HUS-532188967
...
99
ROD.SPRING.BYPASS.K46.LT.Z HUS-532415742
...
225
SERVICE KIT KEEPER BELT KEEPER HUS-531149001
...
216
BRACKET.PULLEY.IDLER.W/TEX HUS-532196131
...
17
SPRING.BRAKE.K46.GREEN HUS-532413678
...
125
BOLT.HEX.HD.WASHER.5/16-18X.75 HUS-532428867
...
210
ROCKER.ASM.PEDAL.CONTR HUS-532400980
...
189
SERVICE KIT BELLCRANK HUS-531169001
...
15
WASHER PLAIN WASHER 3/8 X 0.08 HUS-596565301
...
29
ROD.BRAKE.K46 HUS-532403806
...
188
LINK.CLUTCH.GROUND DRIVE.LONG HUS-582217001
