Husqvarna LTH154 - 96041032900 (2013-10) Tractors/Ride Mower

Model: LTH154 - 96041032900 (2013-10)

Back To Assemblies

Save Part Not Listed?
product name

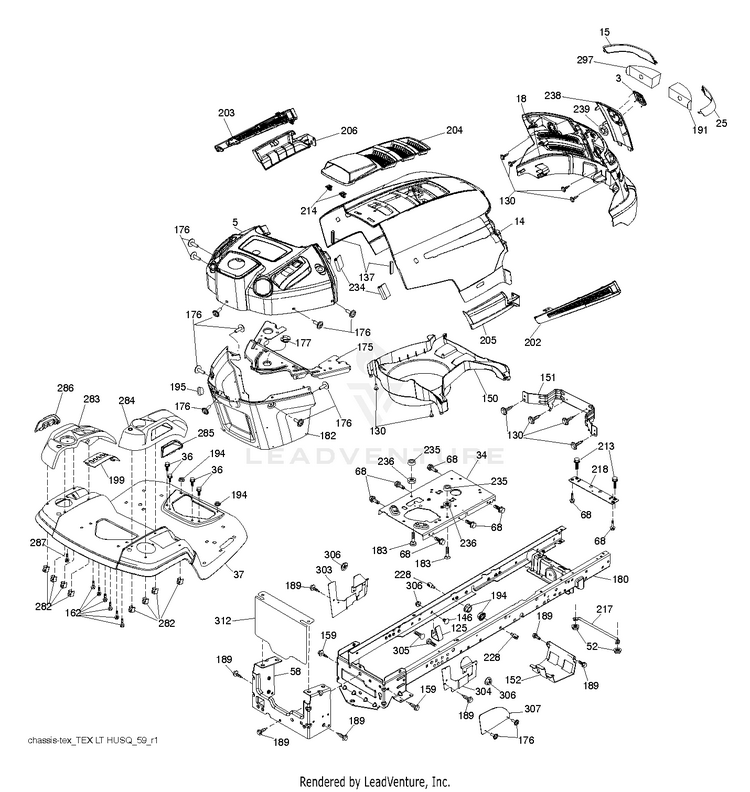

CHASSIS & ENCLOSURES

...
...
182
DASH.LOWER.PREDATOR LT HUS-532407176
...
130
Screws HUS-596321701
...
284
CONSOLE.SHFT.PDL.CNTRL.HUSQ.LT HUS-532439150
...
236
NUT.CENTERLOCK.5/16- HUS-873930500
...
5
DASH HUS-585529804
...
306
NUT.HEX.FLANGE.3/8-16.LOCKNUT HUS-532409149
...
228
STUD.W/"D"ANTI-ROTATION HUS-593824001
...
15
LENS.HUSQVARNA LT.LH HUS-532406664
...
37
FENDER.TLT.FS.W/CUPHLD.ORANGE HUS-532441266
...
194
GSPW Nuts HUS-596135701
...
195
PLUG.TEX.DASH.SVC.MINDER.GREY HUS-532439976
...
239
IS ITO HUS-532404883
...
304
SHEILD.CHASSIS.FRENCH.RH HUS-583388901
...
217
ROD.PIVOT.HOOD HUS-532409167
...
151
BRACKET PIVOT HUS-532407807
...
18
GRILLE.SVC.HUSQVARNA.L HUS-584382301
...
68
Screws HUS-596030701
...
213
SCREW HEXAGON HEAD SCREW 5/16- HUS-596030501
...
25
LENS.HUSQVARNA LT.RH HUS-532406663
...
235
Spacers HUS-596564201
...
297
INSERT REFLECTIVE HUS-532406665
...
191
INSERT.REFLECTIVE.RH. HUS-583358401
...
14
HOOD.HUSQVARNA.LT.ORANGE HUS-532441267
...
175
CROSSMEMBER HUS-532199472
...
303
SHEILD.CHASSIS.FRENCH.LH HUS-583384401
...
3
LOGO.HUSQ.GT.LT.CROWN.H HUS-532430771
...
312
SHIELD.PNT.DRAWBAR.FRENCH HUS-532425926
...
286
CONSOLE.INSRT.LH.HUSQ.LT.BLACK HUS-532416317
...
152
SERVICE KIT SHIELD SHIELD.BROW HUS-531169901
...
159
SCREW, 3/8-16X3/4 HUS-817000612
...
180
CHASS.WLDMNT.TL.12GA/2P.48/54 HUS-532415063
...
189
BOLT.HEX.HD.WASHER.5/16-18X.75 HUS-532428867
...
176
SCREW.#10-24X5/8.RN.QU HUS-532400776
...
177
BUSHING STEERING HUS-532195228
...
283
CONSOLE.ASM.LFT.RSF.HUSQ.LT HUS-532439151
...
199
PLATE.DECK.LIFT.HUSQ.LT HUS-532413485
...
282
CLIP.RETAINER.CONSOLE.LT.HUSQ HUS-532414110
...
214
CLIP.RETAINER.TINNER. HUS-532199145
...
205
SKIRT.SIDE.HUSQVARNA.LT.RT HUS-532441344
...
206
SKIRT.SIDE.HUSQVARNA.LT.LEFT HUS-532441345
...
146
BOLT.RDHD.SHT.SQNK.3/8-16X5/8 HUS-581857901
...
137
BUMPER DASH HUS-532407590
...
238
TRIM.HUSQ LT.668 HUS-532407881
...
204
SUBASM.TOP.VENT.HUSQ.LT HUS-532441375
...
125
CLIP.FUEL.LINE HUS-581684801
...
183
Screws HUS-595305701
...
58
SERVICE KIT DRAWBAR FENDER DRA HUS-531152601
...
52
Hardware HUS-596040501
...
202
VENT.SIDE.HUSQVARNA.LT.RT HUS-532441342
...
305
Bolts HUS-596136001
...
36
BOLT.5/16-18UNCX3/4 W/SEMS.BLK HUS-532171877
...
203
VENT SIDE HOOD HUS-532406671
...
218
X-PIECE.HOOD.STOP.NON/ HUS-532196395
...
307
SHIELD.UPPER.PEDAL.TEX.FRENCH HUS-583413101
...
285
CONSOLE INSERT RH HUS-532416315
...
234
BUMPER.HOOD.TEX.HUSQVARNA HUS-532404742
...
287
SCREW 1/4X20 HUS-817600406
...
34
PLATE.ENGINE.WELDED.CHASSIS HUS-580910801
...
162
Screws HUS-596134101
...
150
DUCT.AIR. HUS-532407537
