Husqvarna LTH154 - 96041032900 (2013-10) Tractors/Ride Mower

Model: LTH154 - 96041032900 (2013-10)

Back To Assemblies

Save Part Not Listed?
product name

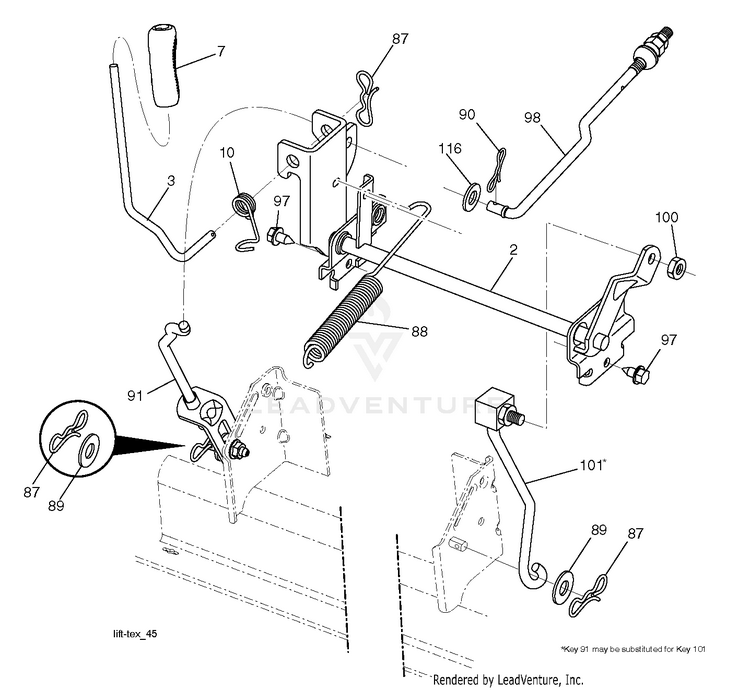

MOWER LIFT / DECK LIFT

...
...
98
Links HUS-581506903
...
91
Links HUS-589464807
...
2
SHAFT.ASM.CROSS.LIFT HUS-532422027
...
88
SPRING.LIFT.ASSIST HUS-532410710
...
7
GRIP.HANDLE.LIFT.PVC.BLACK HUS-532411555
...
10
SPRING.TORSION.LIFT.HANDLE HUS-532196314
...
3
Levers HUS-594018001
...
116
Washers HUS-594976501
...
100
Nuts HUS-596322601
...
97
SCREW, 3/8-16X3/4 HUS-817000612
...
90
PIN.COTTER.5/16.BOW TI HUS-532194208
...
89
WASHER.CLEAR.ZINC HUS-819191912
...
87
PIN.COTTER.7/16.BOW TI. HUS-532194209
...
101
LINK.ASM.LIFT.FIXE.38/42/46" HUS-532407003
