product name

Husqvarna LTH154 - 96041024301 (2012-07) Tractors/Ride Mower

Model: LTH154 - 96041024301 (2012-07)

Back To Assemblies

Save Part Not Listed?
product name

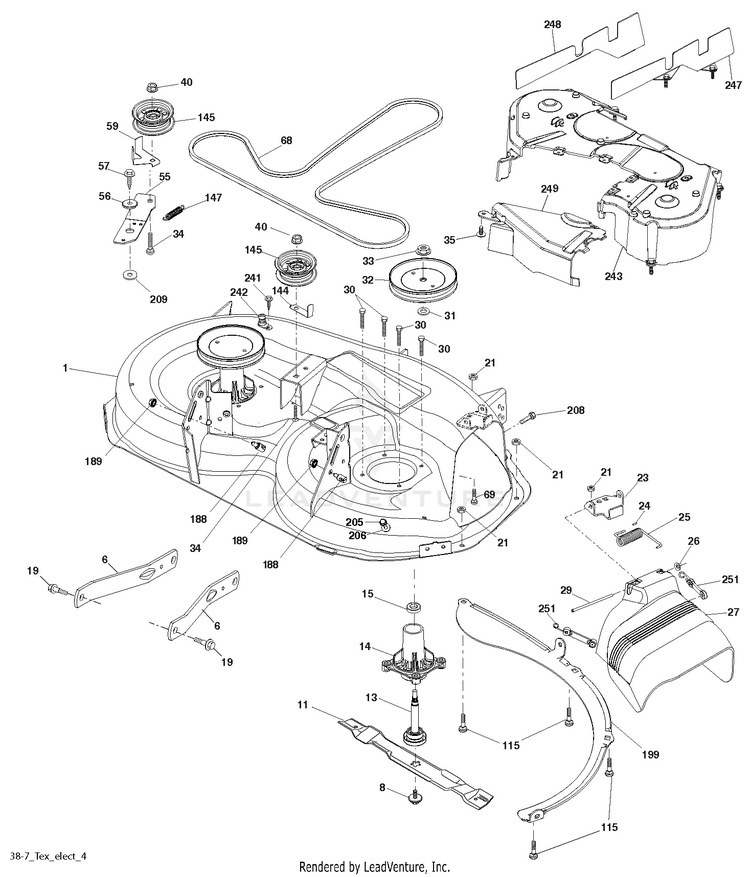

MOWER DECK / CUTTING DECK

...
...
11
BLADE.2 IN 1.38"DECK.BLACK HUS-581116302
...
189
GSPW Nuts HUS-596135701
...
21
Hardware HUS-596040501
...
242
PORT.WASHOUT HUS-532415598
...
40
NUT.HEX.FLANGE.3/8-16.LOCKNUT HUS-532409149
...
59
SERVICE KIT GUARD HUS-531165901
...
55
SERVICE KIT IDLER.ARM HUS-531169401
...
199
SERVICE KIT BAFFLE BAFFLE.VORT HUS-531170401
...
14
KIT.MANDREL.NONGREASE.TALL HUS-587819701
...
115
BOLT ROUND HEAD SQUARE NECK BO HUS-596039401
...
- -
KIT.MANDREL.NONGREASE.TALL HUS-587819701
...
68
BELT.38ELECTRICAL.DECK.DRIVE HUS-583591101
...
8
BOLT.WASHER.ASM.7/16-2 HUS-532193003
...
13
KIT.MANDREL.NONGREASE.TALL HUS-587819701
...
19
BOLT.SHOULDER HUS-532196539
...
6
SERVICE.KIT ARM.SUSPENSION.MOW HUS-529846401
...
35
FASTENER.XMAS.TREE HUS-532133835
...
31
WASHER.SPACER.MANDREL HUS-532187690
...
209
Washers HUS-596135501
...
23
BRKT.DEFLECTOR.38"2005+ HUS-532192557
...
241
SCREW.TT.#10-32X.5.3/8.FLANGE HUS-532152927
...
33
Nuts HUS-596134801
...
- -
HUS-580287001
...
26
NUT PUSH M HUS-532110452
...
145
PULLEY.IDLER.FLAT HUS-532177968
...
147
SPRING.MOWER.DRIVE.ELECTRIC HUS-532197251
...
251
KIT.STRAP.BUNGEE.DEFLECTOR.SVC HUS-583508201
...
25
SPRING.TORSION.DEFLECT HUS-532197026
...
208
SCREW 3/8-16X1/2 HUS-817670608
...
205
HUS-817640416
...
34
GSPW Bolts HUS-596136101
...
27
Shields HUS-597316601
...
24
CAP-SLEEVE LT HUS-532105304
...
69
Bolts HUS-596136401
...
15
BEARING HUS-532110485
...
243
HUS-532432363
...
30
BOLT.HEX.WASHR.HED.313-18X1.19 HUS-584953901
...
188
STUD.W/"D"ANTI-ROTATION HUS-593824001
...
248
ASSY.SHIELD.DECK.38 HUS-583479201
...
144
SERVICE.KIT KEEPER BELT KEEPER HUS-531148901
...
57
SCREW 3/8-16X1 HUS-817000616
...
29
Rods HUS-595297001
...
247
Guards HUS-590528901
...
1
DECK SVCX1.38"194251X418 KIT HUS-583498001
...
32
MANDREL.PULLEY.38.BRIGHT.ZINC HUS-532173435
...
206
Washers HUS-596135301
...
56
SPACER.RETAINER HUS-532199092
...
249
COVER.CABLE.CLUTCH.38/42"TEX HUS-583298901
