Husqvarna LTH154 - 96041024300 (2012-01) Tractors/Ride Mower

Model: LTH154 - 96041024300 (2012-01)

Back To Assemblies

Save Part Not Listed?
product name

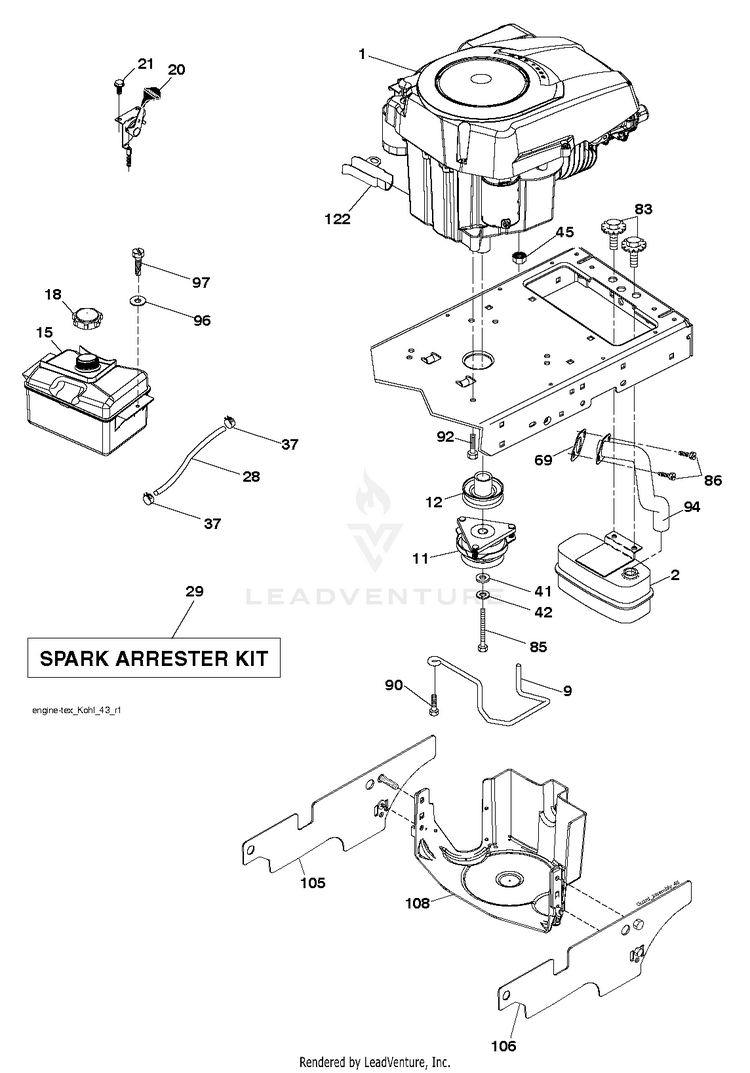

ENGINE

...
...
94
EXHAUST.TUBE.B&S.28/31 HUS-581880901
...
21
Screws HUS-596321701
...
96
Washers HUS-596135301
...
122
EXTENSION DRAIN OIL HUS-532421922
...
92
SCREW 3/8-16X1 HUS-817120616
...
20
CONTROL.TH/CK.C.BLACK HUS-532176636
...
28
HOSE 1/4" LOW PERMEATION FUEL HUS-587044820
...
41
WASHER HUS-532126197
...
85
BOLT.HEX.7/16-20X4.GR5.1.5BLUE HUS-501606501
...
12
PULLEY.ENGINE.TUFFTORQ HUS-532405097
...
86
Screws HUS-596134201
...
18
CAP.2.25'.VENTED.RATCHET.EPA HUS-581075501
...
2
MUFFLER.SINGLE.CYL.KOHL/B&S HUS-532188655
...
9
Keepers HUS-596501502
...
15
FUEL.TANK.ASM.NON-EPA HUS-581289901
...
90
SCREW 3/8-16X1 HUS-817000616
...
97
SCREW HEXWSHR 1/4-20X3/4 HUS-817670412
...
106
HUS-532440680
...
108
ASM.COVER.ENG.PULLEY.TX.SHIELD HUS-583391801
...
29
KIT.SPARK ARRESTOR 794945 B&S HUS-532137180
...
45
NUT HEX_LRG FLG_1_4-20_LOCK HUS-586668901
...
11
KIT.SVC.CLUTCH.ELE.180505 HUS-583389701
...
69
GASKET.ENG.1.313 ID.TIN PLATED HUS-532272293
...
37
HOSE CLAMP HUS-532123487
...
1
Engine Kohl Model No. SV470-3212(438330) HUS-000000000
...
83
BOLT.5/16-18UNCX3/4 W/SEMS.BLK HUS-532171877
...
105
HUS-532440681
...
42
Washers HUS-596238901
