Husqvarna LTH1538 - 96043003800 (2006-12) Riding Tractor

Model: LTH1538 - 96043003800 (2006-12)

Back To Assemblies

Save Part Not Listed?
product name

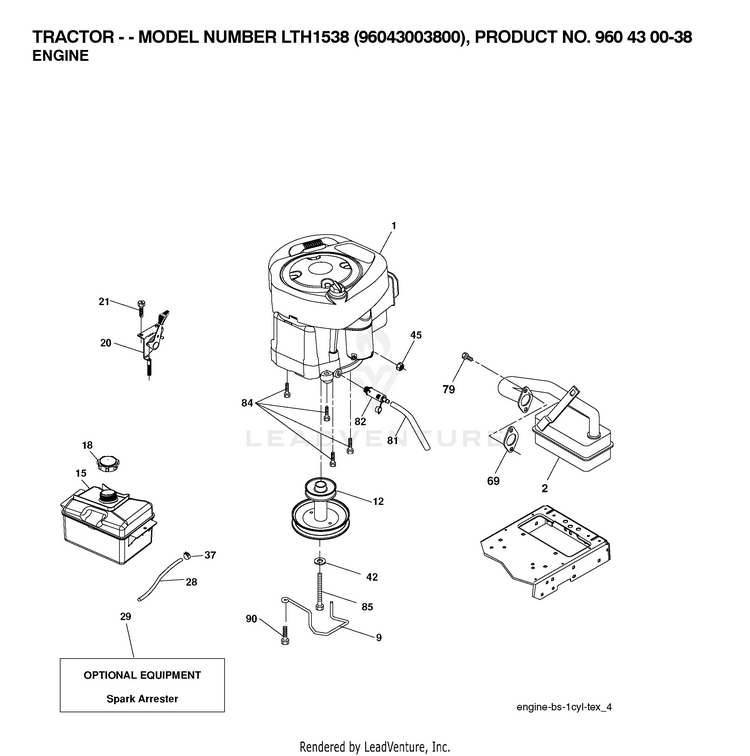

ENGINE

...
...
7
WASHER PLAIN WASHER 3/8 X 0.08 HUS-596565301
...
8
SPRING RETAINER HUS-532169675
...
xx
NOT SHOWN HUS-588556301
...
5
NUT.HEX.FLANGE.1/4 HUS-532191730
...
11
BOLT CAR BLK 5/16-18 X 5/8 HUS-585832001
...
13
SPRING.DEFLECTOR.REM.CHUTE HUS-532184505
...
15
WASHER.NYLON.326 X.625 X.205 HUS-501417401
...
1
BOLT SHEAR HX HD 1/4-20 CLEAR HUS-588077502
...
2
NUT FLG, NYLOCK, 1/4-20 GR G C HUS-582478602
...
12
Hardware HUS-596040501
...
10
KNOB.HANDLE.3/8.TRI-POINT.BLAC HUS-532178899
...
3
WRENCH.SNOWTHROWER.ZINC.YZ HUS-532429112
...
9
BOLT 3/8-16 X 2-1/4 HUS-872120618
...
6
Nuts HUS-596322601
...
4
BOLT.CARR.W.3125 SHLDR..25-20 HUS-501417301
