product name

Husqvarna LTH1538 - 96043003800 (2006-12) Riding Tractor

Model: LTH1538 - 96043003800 (2006-12)

Back To Assemblies

Save Part Not Listed?
product name

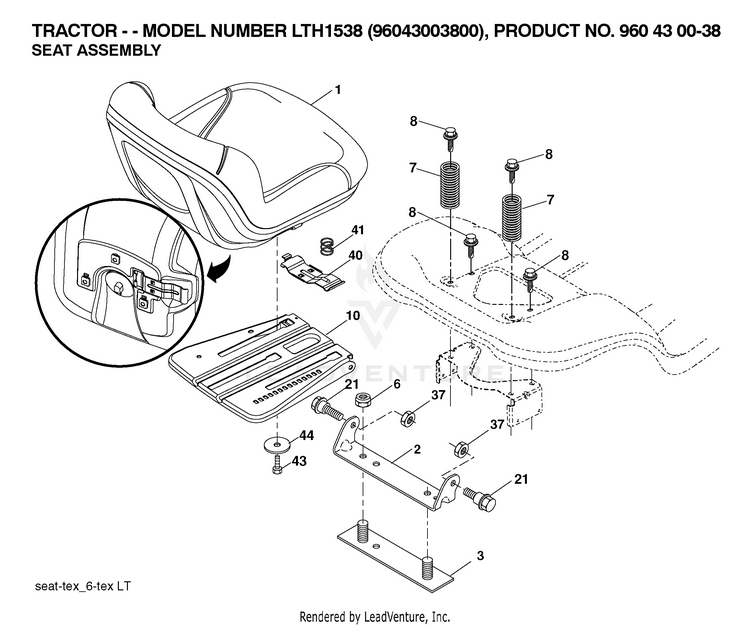

SEAT

...
...
9
NUT.LOCK.5/16-18 HUS-532751153
...
16
PULLEY TRACTION.ASM.2.60_.75 B HUS-586051101
...
13
STEEL WASHER HUS-532059289
...
3
ARM.IDLER BRAKE.CLEAR.ZINC HUS-584232402
...
21
BUSHING.BRAKE.ARM HUS-587343701
...
20
WASHER.20X8.5 HUS-532155415
...
8
BOLT.SHOULDER.1/2X12 HUS-532424297
...
7
Bolts HUS-596582201
...
18
WASHER SPRING LOCK WASHER WITH HUS-596238801
...
5
RP.BRACKET.IDLER.PIVOT.BLACK HUS-532423990
...
19
GUIDE.BELT.CHAIN.LS.SNOW HUS-585540501
...
14
WASHER.400X1.25X5. HUS-819132005
...
10
BOLT.5/16HEX.WHS.HD HUS-817000510
...
2
BELT.V.TRACTION.35.26 HUS-532413592
...
4
Pulleys HUS-594095301
...
1
V-BELT.IMPELLER HUS-532419888
...
15
PULLEY IMPELLER.ASM.2.60_.75 B HUS-586050801
...
23
SCREW.3/8-16 X .750 (2 2) HUS-874760608
...
11
ARM.ASM.TRACTION.IDLER. HUS-585238401
...
22
CAPSCREW.HEXHD.5/16X1.25. HUS-874610520
...
6
NUT.HEX.FL 5/16-18 TOP LCK BLK HUS-585802801
...
12
BOLT.BLADE HUS-532179617
...
17
SCREW HUS-874610516
