Husqvarna LTH152 - 96041003010 (2013-09) Tractors/Ride Mower

Model: LTH152 - 96041003010 (2013-09)

Back To Assemblies

Save Part Not Listed?
product name

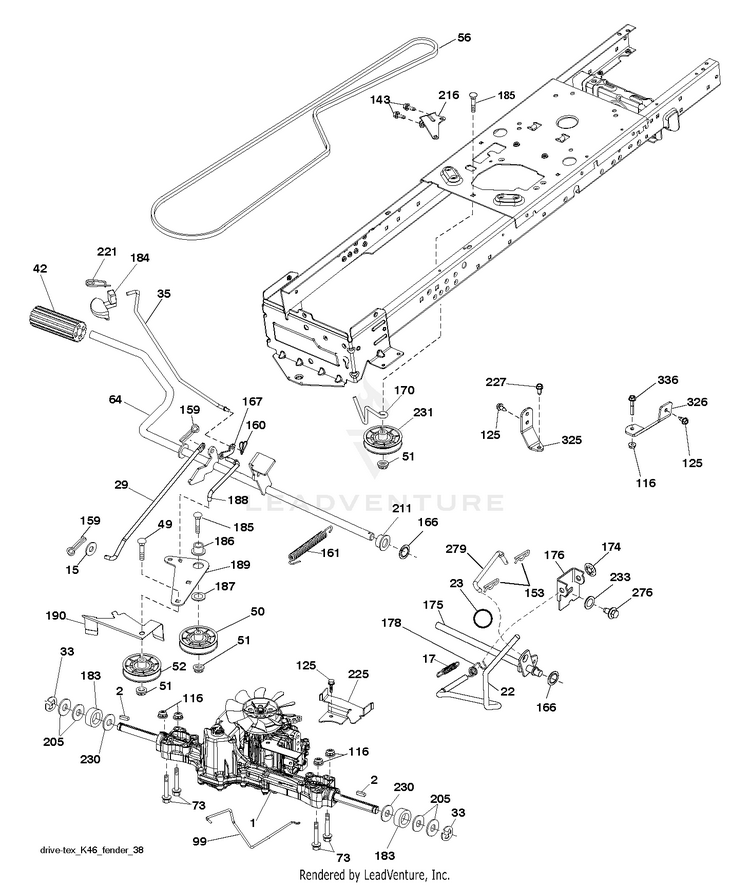

DRIVE

...
...
50
IDLER.FLAT.910.OFFSET HUS-532194327
...
125
BOLT.HEX.HD.WASHER.5/16-18X.75 HUS-532428867
...
190
KEEPER.BELLCRANK.DRIVE HUS-532194318
...
233
Washers HUS-596135201
...
231
IDLER.V-GROOVE.1.688.OFFSET HUS-532407287
...
143
Screws HUS-596030701
...
160
GSPW Retainers HUS-596029401
...
64
SHAFT.ASM.PEDAL.BRAKE. HUS-532196200
...
183
SPACER AXLE HUS-532137057
...
167
SERVICE KIT LATCH LATCH.BRAKE. HUS-531152901
...
116
GSPW Nuts HUS-596135701
...
159
Pins HUS-596029501
...
336
Bolts HUS-587259602
...
56
Belts HUS-592855201
...
17
SPRING.BRAKE.K46.GREEN HUS-532413678
...
185
BOLT HUS-872110622
...
29
ROD.BRAKE.K46 HUS-532403806
...
189
SERVICE KIT BELLCRANK HUS-531169001
...
49
Bolts HUS-596136201
...
216
BRACKET.PULLEY.IDLER.W/TEX HUS-532196131
...
170
KEEPER.CENTER SPAN.1.688 HUS-532413430
...
73
Bolts HUS-596136501
...
153
RETAINER M HUS-532004497
...
326
BRACKET TORQUE STRAP HUS-586001103
...
33
E-RING LT HUS-812000001
...
175
SHAFT.ASM.SHFT.T2.TLT HUS-532408539
...
35
Rods HUS-596874801
...
187
Washers HUS-596135501
...
227
SCREW HEXAGON HEAD SCREW 5/16- HUS-596030501
...
23
KNOB.DUCKHEAD.1/2 HUS-532121274
...
225
SERVICE KIT KEEPER BELT KEEPER HUS-531149001
...
52
IDLER.V-GROOVE.910.OFFSET HUS-532194326
...
176
ARM.CLEVIS.ROD.SHIFT HUS-532196214
...
276
Bolts HUS-596238601
...
1
TRANSAXLE TUFFTORQ MODEL K46BA (448348) HUS-000000000
...
205
WASHER HUS-532121748
...
22
ROD.SHIFT.FENDER.TLT.2006 HUS-532197660
...
325
BRACKET TORQUE STRAP HUS-586431203
...
221
RETAINER.SPRING.CLIP.H HUS-532403187
...
184
HANDLE.PARKNG BRK.PRED.LT.428 HUS-532411484
...
186
SPACER.RETAINER HUS-532194321
...
166
NUT.PUSH.625 HUS-532429164
...
2
SQUARE KEY HUS-532123583
...
161
SPRING, RETURN LT HUS-532105709
...
15
WASHER PLAIN WASHER 3/8 X 0.08 HUS-596565301
...
230
WASHER.HARDENED HUS-532188967
...
188
LINK.CLUTCH.GROUND DRIVE.LONG HUS-582217001
...
174
NUT.PUSH.500.2006 HUS-532197289
...
51
NUT.HEX.FLANGE.3/8-16.LOCKNUT HUS-532409149
...
99
ROD.SPRING.BYPASS.K46.LT.Z HUS-532415742
...
211
BUSHING.SHAFT.BRAKE.HAND HUS-532196212
...
42
PAD, FOOT PEDAL HUS-510089501
...
279
Links HUS-596916601
...
178
SPRING.SHIFT.GT2006 HUS-532197456
