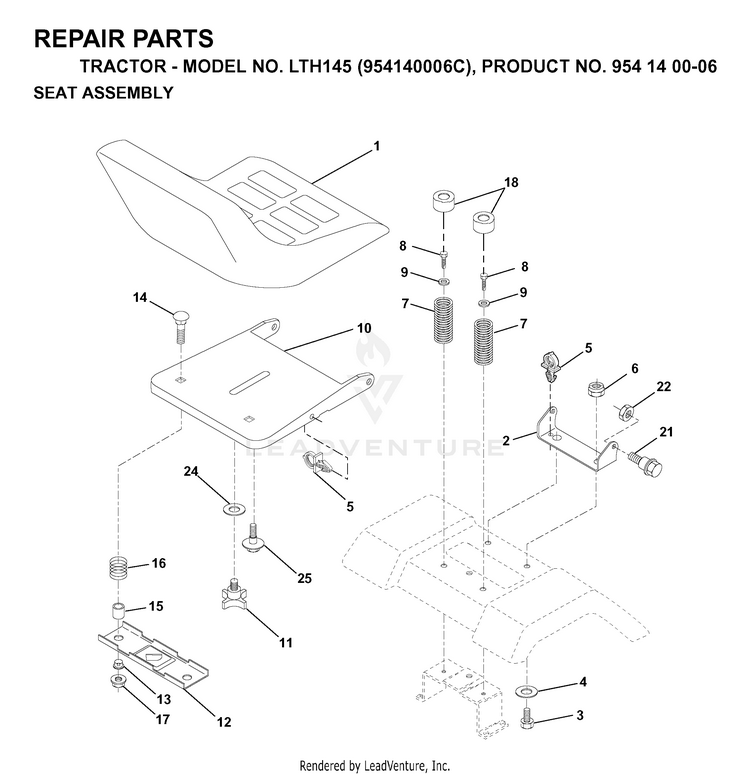

Husqvarna LTH145 - 954140006C (1998-02) Riding Tractor

Model: LTH145 - 954140006C (1998-02)

Back To Assemblies

Save Part Not Listed?
product name

SEAT

...
...
8
SCREW 3/8-16X1 HUS-817000616
...
13
BUSHING HUS-532121248
...
25
BOLT,SHOULD HUS-532127018
...
5
PUSH CLIP HUS-532145006
...
21
BOLT.5/16-18X5/8.SHOULDER HUS-587907801
...
10
PAN.ASM.SEAT.1SLOT HUS-532195530
...
18
CAP SPRING HUS-532124238
...
22
Hardware HUS-596040501
...
4
WASHER PM HUS-819131610
...
6
Nuts HUS-596322601
...
7
SPRING.COMPRESSION.SEAT.BLACK HUS-587613301
...
15
SPACER SPLIT 28X.96 HUS-532134300
...
9
Washers HUS-596140201
...
11
KNOB.SEAT.ADJ.WINGNUT HUS-532166369
...
12
BRKT.MNTNG.SWITCH.SEAT.BLACK HUS-532174648
...
16
SPRING HUS-532121250
...
3
Bolts HUS-596564401
...
1
SEAT.XG090.BLK.KB/BLT.NO-LOG HUS-532401042
...
14
BOLT.ROUND.HEAD.SQUARE.NECK HUS-872050412
...
24
WASHER HUS-819171912
...
2
SERVICE KIT BRACKET SEAT PIVOT HUS-531152401
...
17
NUT HEX_LRG FLG_1_4-20_LOCK HUS-586668901
