Husqvarna LTH145 (1999 & Before) Tractor

Model: LTH145 (1999 & Before)

Back To Assemblies

Save Part Not Listed?
product name

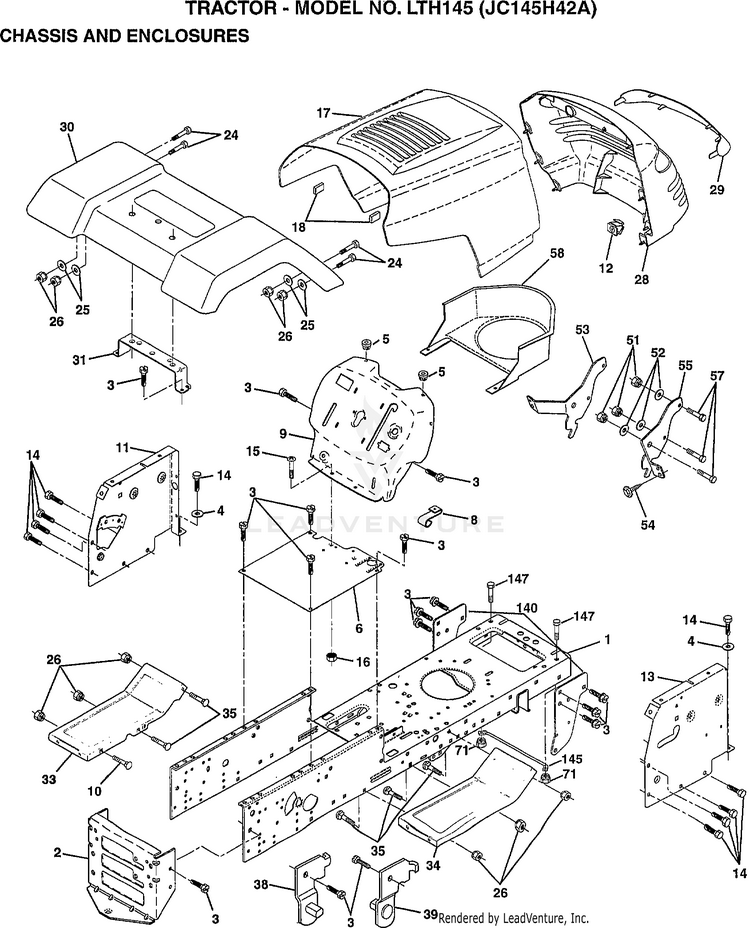

CHASSIS AND ENCLOSURES

...
...
1
SUB= 159530 HUS-532159530
...
2
HUS-532145009
...
3
Screw, Hex Wsh. Thrdrol. 3/8-16 x 3/4 HUS-874780612
...
4
WASHER 13/32X3/4X16 GA HUS-819131216
...
5
SUB= 155272 HUS-532155272
...
6
SUB= 155923 HUS-532155923
...
8
SUB= 155138 HUS-532155138
...
9
SUB= 147627X011 HUS-532157969
...
10
Bolt, Carriage 3/8-16 x 1 Gr. 5 HUS-872110608
...
11
Panel Dash Lh HUS-532174996
...
12
SUB= 145660 HUS-532145660
...
13
DASH PANEL ASM. HUS-532172107
...
14
SCREW THDROL 3/8-16X1/2 TY-TT HUS-817490608
...
15
SCREW MACHINE TRHD 5/16-18 X 3/4 HUS-874180512
...
16
Nut Lock Hex W/Ins. 5/16-18 Unc P HUS-873800500
...
17
SUB= 159639X505 HUS-532159355
...
18
"BUMPER,HOOD T" HUS-532126938
...
24
BOLT FIN HEX 3/8-16 X 1 HUS-874780616
...
25
WASHER HUS-734117201
...
26
Nut HUS-873680600
...
28
GRILL/LENS ASM. HUS-532179101
...
29
SUB= 140273 HUS-532140273
...
30
SUB= 140001X505 HUS-532141283
...
31
SUB= 136619 HUS-532136619
...
33
SUB= 105476X505 HUS-532125401
...
34
SUB= 105475X505 HUS-532125402
...
35
BOLT RDHD SHT SQNK 3/8-16 X 3/4 HUS-872110606
...
38
SUB= 139886 HUS-532139886
...
39
SUB= 139887 HUS-532139887
...
51
NUT.1/4C.NYLOC HUS-539976978
...
52
WASHER 9/32 X 7/8 X 16 GA HUS-819091416
...
53
SUB= 144697 HUS-532144697
...
54
Screw Hex WSHD 8-18 x 7/8 HUS-532161464
...
55
SUB= 144696 HUS-532144696
...
57
Bolt Hex Fin 1/4-20 unc x 1 Gr. 5 HUS-874780416
...
58
SUB= 150127 HUS-532150127
...
71
NUT CROWNLOCK 1/4-20 HUS-873680400
...
145
Rod Pivot Hood HUS-532409167
...
147
BOLT HEX HD 1/4-20 X 3/4 HUS-874760412
...
xx
SUB= 5479J HUS-532005479
