Husqvarna LTH145 (1999 & Before) Tractor

Model: LTH145 (1999 & Before)

Back To Assemblies

Save Part Not Listed?
product name

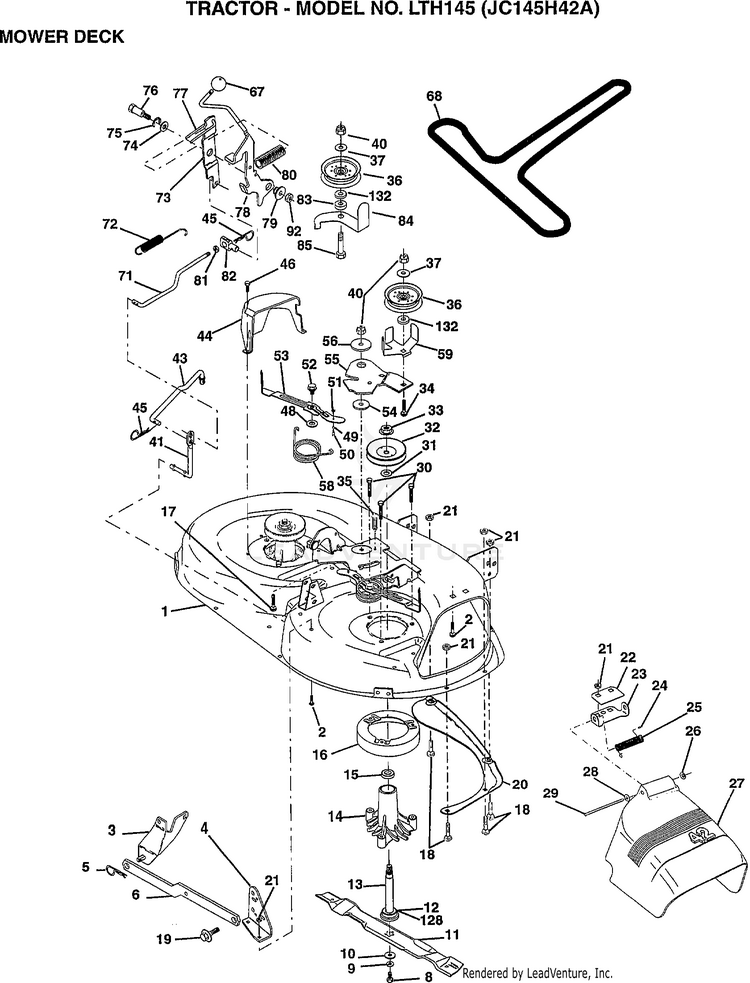

MOWER DECK

...
...
1
HSG ASM 42" MOWER DECK HUS-532176031
...
2
RHSNB.5/16-18.X3/4.GR.5.ZD HUS-539990316
...
3
SUB= 138017 HUS-532138017
...
4
SUB= 138440 HUS-532138440
...
5
RETAINER SPRING HUS-532085902
...
6
Bar Sway Deck HUS-532178024
...
8
SUB= 850857 HUS-532850857
...
9
WASHER.3/8 HUS-539990118
...
10
SUB= 140296 HUS-532140296
...
11
SUB= 138498 HUS-532138498
...
12
BALL-BEARING 6204-2RS HUS-738220419
...
13
KIT MANDREL W/NUT HUS-532137646
...
14
SUB= 128774 HUS-532128774
...
15
SUB= 110485X HUS-532110485
...
16
Stripper, Mower HUS-532174493
...
17
BOLT RDHD SQNK 3/8-16 X 2-1/4 HUS-872110618
...
18
BOLT RDHD SQNK 5/16-18 X 5/8 HUS-872140505
...
19
SUB= 132827 HUS-532132827
...
20
BAFFLE.VORTEX HUS-532159770
...
21
Nut Lock Hex W/Ins. 5/16-18 Unc P HUS-873800500
...
22
Bracket Deflector Mower 42" HUS-532177563
...
23
Bracket Deflector Mower 42" HUS-532177563
...
24
SUB= 105304X HUS-532105304
...
25
SUB= 123713X HUS-532123713
...
26
SUB= 110452X HUS-532110452
...
27
SUB= 130968 HUS-532130968
...
28
WASHER - 15X7.3X1.6 HUS-734116301
...
29
SUB= 131491 HUS-532131491
...
30
BOLT, MANDREL HUS-532173984
...
31
SPACER, MANDREL HUS-532187690
...
32
Pulley, Mandrel HUS-532173436
...
33
KIT.NUT.FLANGE HUS-532139729
...
34
BOLT RDHD 3/8-16 X 2-3/4 GR 5 HUS-872110622
...
35
SUB= 133835 HUS-532133835
...
36
PULLEY.IDLER.FLAT HUS-532173438
...
37
WASHER 13/32 X 13/16 X 16 GA HUS-819131316
...
38
IDLER SPRG SPACER HUS-532132823
...
40
NUT, CROWNLOCK 3/8-16 HUS-873680600
...
44
SUB= 140088 HUS-532140088
...
46
SUB= 137729 HUS-532137729
...
54
Washer Hardened HUS-532178515
...
55
CAM ROLLER KIT HUS-532151785
...
59
SUB= 141043 HUS-532141043
...
61
SUB= 131950 HUS-532131950
...
68
SUB= 144959 HUS-532144959
...
83
SUB= 120958X HUS-532120958
...
84
SUB= 156084 HUS-532156084
...
85
Bolt Rdhd Sq 3/8-16 x 2-1/4 HUS-872110618
...
92
Nut HUS-873680600
...
128
SUB= 153390 HUS-532153390
...
132
WASHER 13/32 X 1-3/8 X GA HUS-819132203
...
xx
SUB= 144783 HUS-532159469
...
xx
SUB= 130794 HUS-532130794
