Husqvarna LTH145 (1999 & Before) Tractor

Model: LTH145 (1999 & Before)

Back To Assemblies

Save Part Not Listed?
product name

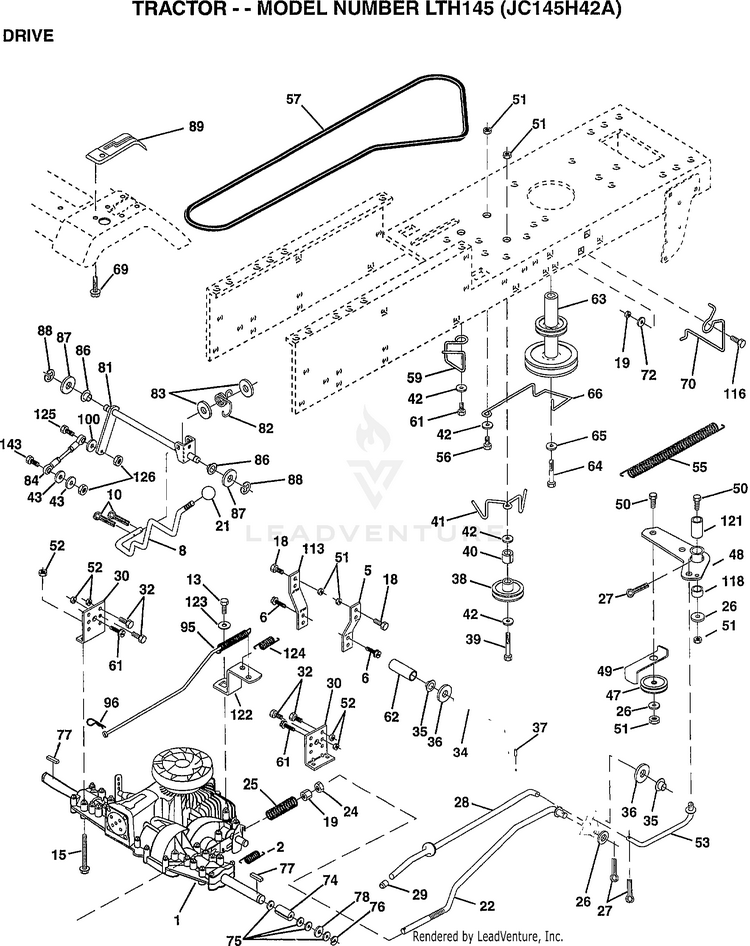

DRIVE

...
...
1
TRANSAXLE, PEERLESS HUS-205-027B
...
2
SUB= 146682 HUS-532146682
...
5
SUB= 121520X HUS-532121520
...
6
HCS.5/16-18X3/4 HUS-539976934
...
8
SUB= 141003 HUS-532141003
...
10
PIN COTTER 1/8 X 1 CAD HUS-876020416
...
13
Bolt, Shift Plate HUS-871040412
...
15
BOLT HEX 5/16-18 GA 5 HUS-874490544
...
18
BOLT FIN HEX 3/8-16 X 1 HUS-874780616
...
19
Nut HUS-873680600
...
21
SUB= 106933X HUS-532106933
...
22
SUB= 130804 HUS-532130804
...
24
Nut, Hex 3/8-16 HUS-873220600
...
25
SPRING, BRAKE ROD HUS-532151332
...
26
WASHER 13/32 X 13/16 X 16 GA HUS-819131316
...
27
PIN COTTER 1/8 X 3/4 CAD HUS-876020412
...
28
SUB= 145204 HUS-532145204
...
29
SUB= 71673 HUS-532071673
...
30
SUB= 130807 HUS-532130807
...
32
HCS.5/16-18X3/4 HUS-539976934
...
34
SUB= 155071 HUS-532155071
...
35
SUB= 120183X HUS-532120183
...
36
WASHER 21/32 X 1 X 16 GA HUS-819211616
...
37
DRIVE PIN HUS-532002882
...
38
SUB= 123674X HUS-532123674
...
39
BOLT FIN HEX 3/8-16 X 2-3/4 HUS-874760644
...
40
SUB= 4470J HUS-532124965
...
41
SUB= 165838 HUS-532165838
...
42
WASHER HUS-734117201
...
47
Pulley, Idler V Groove HUS-532139245
...
48
SUB= 154604 HUS-532154604
...
49
SUB= 123205X HUS-532123205
...
50
Bolt, Hex Head 3/8-16 UNC x 1-1/2 HUS-874930624
...
51
NUT, CROWNLOCK 3/8-16 HUS-873680600
...
52
Nut Lock Hex W/Ins. 5/16-18 Unc P HUS-873800500
...
53
LINK.CLUTCH.7.66.2005 HUS-532199652
...
55
SUB= 105709X HUS-532105709
...
56
BOLT, HEX 3/8-16 X 1-1/4 HUS-874760620
...
57
SUB= 156971 HUS-532156971
...
59
Keeper, Center Span HUS-532169691
...
61
Screw, Hex Wsh. Thrdrol. 3/8-16 x 3/4 HUS-874780612
...
62
Cover, Pedal HUS-532008883
...
63
SUB= 140186 HUS-532140186
...
64
SUB= 150280 HUS-532150280
...
65
LOCKWASHER.7/16 HUS-539990247
...
66
SUB= 154778 HUS-532154778
...
69
SUB= 142432 HUS-532142432
...
70
SUB= 134683 HUS-532134683
...
72
WASHER 13/32 X 1-1/4 X 12 GA HUS-819132012
...
74
SUB= 156972 HUS-532156972
...
75
SUB= 121749X HUS-532121749
...
76
E-RING #5133-75 HUS-812000001
...
77
SUB= 123583X HUS-532123583
...
78
SUB= 121748X HUS-532121748
...
81
SHAFT ASM CROSS HYDRO 18 " TIRES HUS-532158461
...
82
SUB= 123782X HUS-532123782
...
83
BUSHING HUS-734117771
...
84
"ROD TIE 18""" HUS-532158286
...
86
SUB= 71208 HUS-532071208
...
87
WASHER 21/32 X 1-1/4 X 16 GA HUS-819212016
...
88
RING CLIP #5304-62 HUS-812000008
...
89
SUB= 153764 HUS-532151147
...
95
SUB= 156970 HUS-532156970
...
96
RETAINER M HUS-532004497
...
100
WASHER - 15X7.3X1.6 HUS-734116301
...
113
SUB= 127285X HUS-532127285
...
116
BOLT HUS-872140614
...
118
SUB= 154774 HUS-532154774
...
121
SUB= 154419 HUS-532154419
...
122
SUB= 156963 HUS-532156963
...
123
WASHER 8/32 X 5/8 X 16 GA HUS-819081016
...
124
SUB= 156967 HUS-532156967
...
125
BOLT FIN HEX 5/16-18 X 1 HUS-874780516
...
126
LOCKNUT HUS-532068478
