Husqvarna LTH145 (1999 & Before) Tractor

Model: LTH145 (1999 & Before)

Back To Assemblies

Save Part Not Listed?
product name

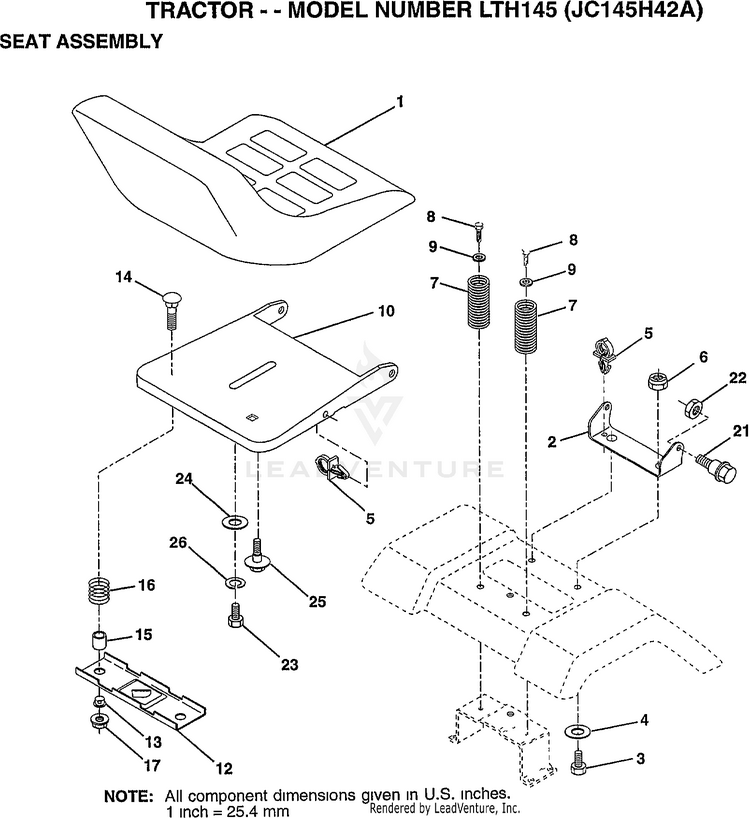

SEAT ASSEMBLY

...
...
1
SEAT.XG090.BLK.KB/BLT.NO-LOG HUS-532401042
...
2
SUB= 140551 HUS-532140551
...
3
Bolt Fin Hex 3/8-16 Unc x 1 Gr. 5 HUS-874780616
...
4
WASHER 13/32 X 1 X 10 GA HUS-819131610
...
5
SUB= 145006 HUS-532145006
...
6
Nut HUS-873680600
...
7
SRPING.SEAT HUS-539110300
...
8
Screw 3/8-16 x 1-1/2 Smgml Tap/R Z HUS-817000616
...
9
Washer 13/32 x 1 x 12 Ga. HUS-819131612
...
10
PAN, SEAT HUS-532195530
...
12
Bracket Mounting Switch HUS-532174648
...
13
SUB= 121248X HUS-532121248
...
14
BOLT RDHD SQNK 1/4-20X 1-3/8 HUS-872050411
...
15
SUB= 134300 HUS-532134300
...
16
SUB= 121250X HUS-532121250
...
21
Bolt Shoulder 5/16-18 unc-2a Blk DA HUS-532171852
...
22
LOCKNUT HUS-873800500
...
23
BOLT.HEX.BLACK HUS-871110814
...
24
WASHER 17/32 X 1-3/16 X 12 GA HUS-819171912
...
25
SUB= 127018X HUS-532127018
...
26
WASHER LOCK HVY HLCL SPR 1/2 HUS-810040800
