Husqvarna LTH141 - 96011030101 (2012-08) Tractors/Ride Mower

Model: LTH141 - 96011030101 (2012-08)

Back To Assemblies

Save Part Not Listed?
product name

WHEELS & TIRES

...
...
5
RIM.ASM.6X4.5.FRONT.SILVER Front 6" HUS-532106732
...
11
CAP.HUB.FRONT.LT.BLACK HUS-532104757
...
2
VALVE STEM LT HUS-532065139
...
6
FITTING LT. (Front Wheel Only) HUS-532000278
...
7
BEARING.FLANGE (Front Wheel Only) HUS-532009040
...
10
TUBE - UNIVERSAL FOR 8" RIM Rear (Service Item Only) HUS-532007152
...
1
VALVE CAP HUS-532059192
...
8
RIM.ASM.8X7.REAR.SILVER Rear 8" HUS-532106108
...
4
TUBE.5.3/4.5/6 Front (Service Item Only) HUS-532059904
...
3
TIRE.15X6-6.TURF.SAVER.FRONT Front 15 x 6.0-6 HUS-532122073
...
9
TIRE.18X8.5X8.TURF.SAVER.REAR Rear 18 x 8.5-8.0 HUS-532126957

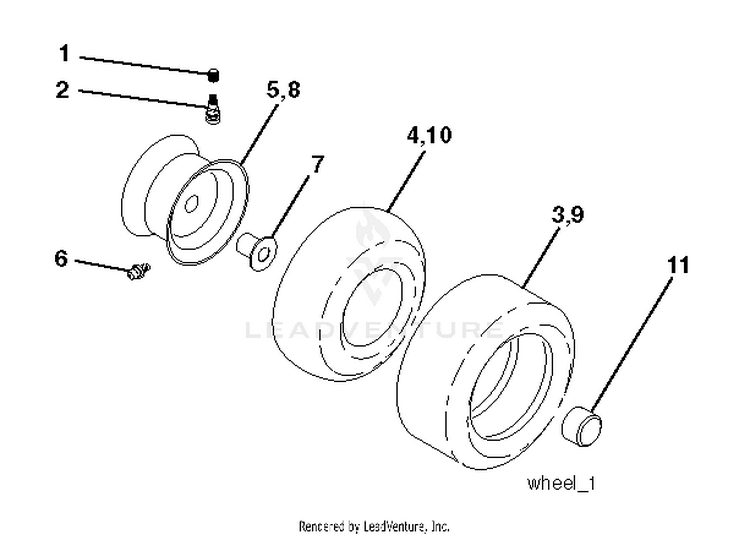

Schematic Image Zoomed
