Husqvarna LTH140 - 954001192C (1998-05) Riding Tractor

Model: LTH140 - 954001192C (1998-05)

Back To Assemblies

Save Part Not Listed?

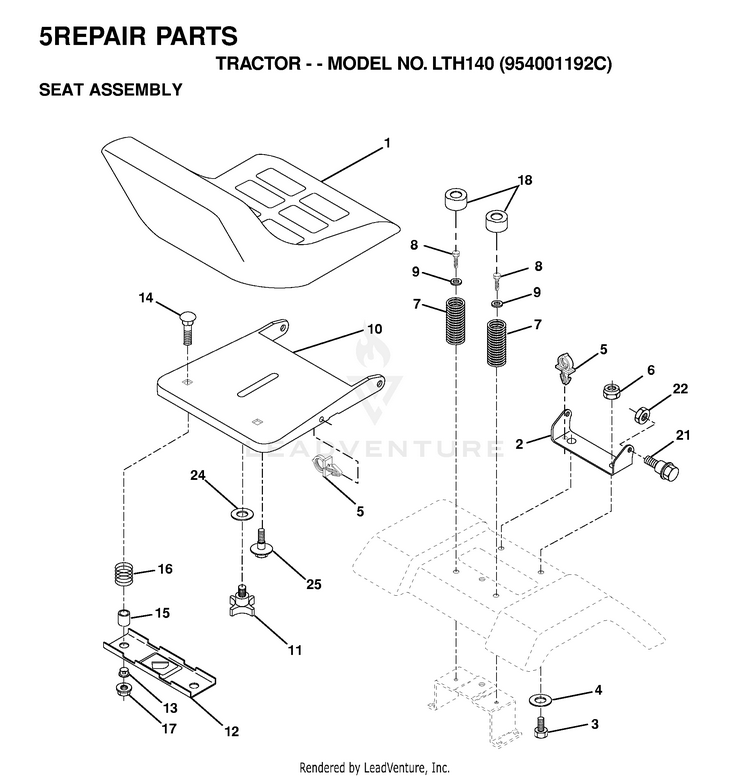

product name

SEAT

...
...
11
KNOB.SEAT.ADJ.WINGNUT HUS-532166369
...
14
Bolt Rdhd. Sht. Nk 1/4-20 x 1-3/8 HUS-872050411
...
16
SPRING HUS-532121250
...
17
NUT HEX_LRG FLG_1_4-20_LOCK HUS-586668901
...
25
BOLT,SHOULD HUS-532127018
...
7
SPRING.COMPRESSION.SEAT.BLACK HUS-587613301
...
22
Hardware HUS-596040501
...
21
BOLT.SHOULDER.5/16-18 HUS-532139888
...
13
BUSHING HUS-532121248
...
4
WASHER PM HUS-819131610
...
12
BRKT.MNTNG.SWITCH.SEAT.BLACK HUS-532174648
...
24
WASHER HUS-819171912
...
5
PUSH CLIP HUS-532145006
...
10
PAN.ASM.SEAT.1SLOT HUS-532195530
...
15
SPACER SPLIT 28X.96 HUS-532134300
...
2
SERVICE KIT BRACKET SEAT PIVOT HUS-531152401
...
8
SCREW 3/8-16X1 HUS-817000616
...
18
CAP SPRING HUS-532124238
...
9
Washers HUS-596140201
...
1
SEAT.XG090.BLK.KB/BLT.NO-LOG HUS-532401042
...
6
Nuts HUS-596322601
...
3
Bolts HUS-596564401
