Husqvarna LTH130 - 954830061B (1996-02) Riding Tractor

Model: LTH130 - 954830061B (1996-02)

Back To Assemblies

Save Part Not Listed?
product name

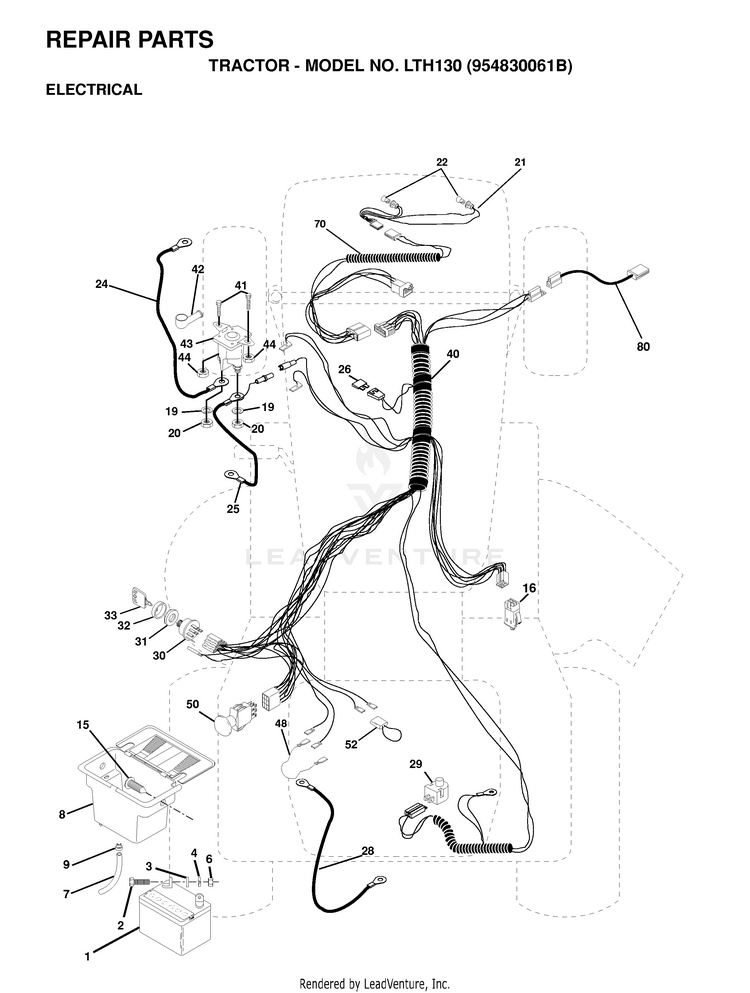

ELECTRICAL

...
...
29
SWITCH.SNAPMOUNT.NC HUS-532421062
...
16
SWITCH INTERLOOK PUSH-IN HUS-532176138
...
43
KIT SOLENOID .95 HUS-532146154
...
40
HARNESS IGN ELEC P/L HUS-532151215
...
52
WIRE PROTECTION LOOP HUS-532141940
...
28
CABLE T HUS-532004207
...
6
NUT.HEX..25-20.UNC HUS-532050675
...
4
WASHER SPRING LOCK WASHER WITH HUS-596029801
...
80
HARNESS, CLUTCH HUS-532146685
...
33
KEY.MOLDED.GENERIC HUS-532122147
...
32
COVER SWITCH KEY HUS-532141226
...
8
KIT.BOX.BATTERY.REAR.BOOT.POS HUS-532404349
...
44
Nut, Keps Blk Hex 1/4-20 UNC HUS-873640400
...
3
Washers HUS-596582301
...
26
FUSE HYT HUS-532108824
...
20
NUT.HEX..25-20.UNC HUS-532050675
...
48
ADAPTER.AMMETER HUS-532140844
...
41
Screws HUS-596437001
...
22
LIGHTBULB HUS-532004152
...
7
TUBE BATTERY DRAIN HUS-532109238
...
50
SWITCH.PTO.8TERMINAL.STD.BLK HUS-582107601
...
70
HARNESS ENG KOHLER HUS-532142291
...
2
BOLT.HEX.1/4.X.3/4.DICHROMATE HUS-874760412
...
42
COVER.TERMINAL.RED HUS-532154336
...
15
FASTERER SNAP-IN HUS-532147688
...
19
WASHER SPRING LOCK WASHER WITH HUS-596029801
...
1
BATTERY.DRY.30.AMP HUS-532123899
...
25
CABLE BATTERY HUS-532146147
...
21
HARNESS LIGHT SOCKET HUS-532136850
...
31
NUT IGNITION HUS-532124211
...
24
BATTERY CABLE HUS-532004799
...
30
SWITCH.IGNITION.4.POSITION HUS-532140301
...
9
HOSE CLAMP T HUS-532109596
