Husqvarna LTH130 - 954830061A (1996-01) Riding Tractor

Model: LTH130 - 954830061A (1996-01)

Back To Assemblies

Save Part Not Listed?
product name

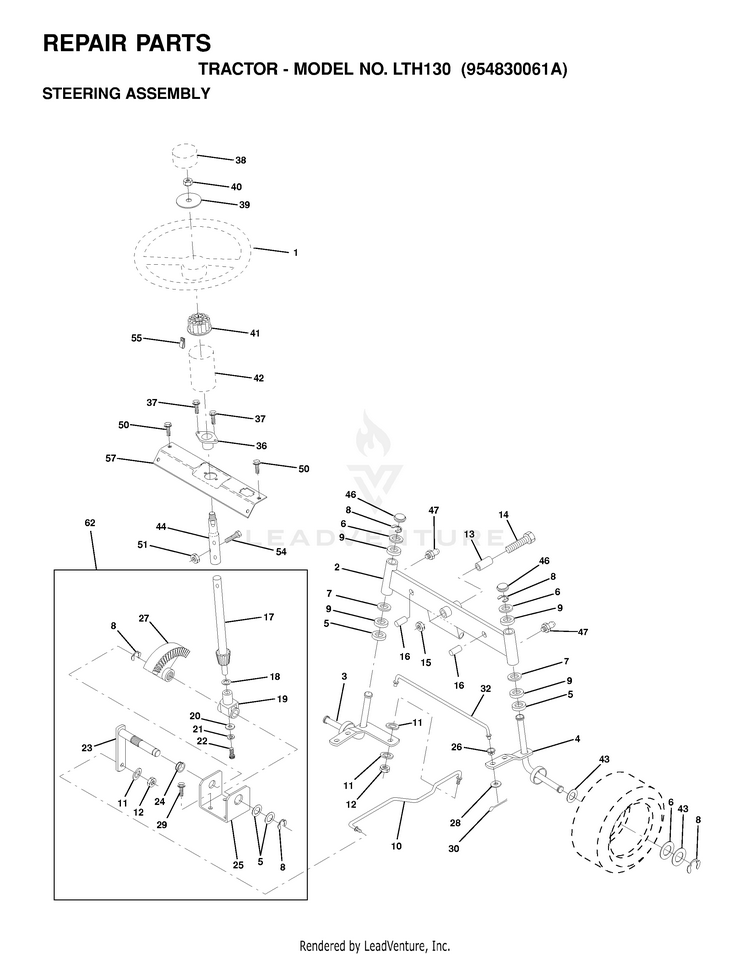

STEERING

...
...
11
Washers HUS-596238701
...
43
WASHER HUS-532121749
...
20
Washers HUS-596582301
...
32
ROD.TIE.WIRE.FORM HUS-532192757
...
46
CAP.SPINDLE.BLACK HUS-532121232
...
18
THRUST WASHER HUS-532057079
...
29
BOLT HEX PATCH 3/8-16X3/4 HUS-534200501
...
21
WASHER SPRING LOCK WASHER WITH HUS-596029801
...
2
AXLE ASSY HUS-532142033
...
1
STEERING WHEEL HUS-532124415
...
30
Pins HUS-596029501
...
15
LOCKNUT M HUS-583612401
...
44
KIT.EXTENSION.STEERING.PLM/LR HUS-532154307
...
40
NUT HUS-873610600
...
41
ADAPTER-WHEEL LT HUS-532104820
...
12
NUT HUS-873610600
...
50
BOLT.HEX.1/4.X.3/4.DICHROMATE HUS-874760412
...
3
SPINDLE LH HUS-532135227
...
10
LINK.DRAG.SOL.BALL JT.20.064 HUS-532130468
...
38
INSERT,STR WHEEL HUS-532124416
...
47
FITTING.GREASE.TAPERED HUS-532183226
...
19
STEERING SHAFT SUPPORT HUS-532160395
...
5
WASHER THRUST HUS-532006266
...
51
Hardware HUS-596040501
...
23
PITMAN SHAFT ASSY HUS-532156365
...
62
KIT.STEER.ASM.P/L HUS-584371701
...
24
NYLINER T (7283A) HUS-532109816
...
36
STEERING BUSHING KIT HUS-532155107
...
26
BUSHING.DRAGLINK (2 2) HUS-532126847
...
17
SERVICE KIT SHAFT ASM ST HUS-531166901
...
39
WASHER.13/32x2 3/8x12GA HUS-583789501
...
42
BOOT, STEERING SHAFT HUS-532150390
...
25
SERVICE KIT BRACKET BRKT HUS-531152201
...
57
SUPPORT STEERING SHAFT HUS-532140172
...
27
GEAR.SECTOR HUS-532136874
...
8
RING CLIP HUS-812000029
...
7
WASHER HUS-819272016
...
14
Bolt, Hex Head 5/8-11 x 3-1/2 HUS-874011056
...
22
SCREW.HX.WSH.HD HUS-532165857
...
6
WASHER HUS-532121748
...
4
SPINDLE RH HUS-532135228
...
16
AXLE PIN HUS-532132624
...
28
WASHER HUS-819131414
...
54
Screws HUS-595305701
...
37
Screw Slftp #10-16 x 1/2 Ty-Ab HUS-817211008
...
9
BEARING.STEERING.COLUMN HUS-532003366
...
13
KIT-AXLE HUS-532155134
...
55
CLIP HUS-532140285
