Husqvarna LTH130 - 954140107A (1999-11) Riding Tractor

Model: LTH130 - 954140107A (1999-11)

Back To Assemblies

Save Part Not Listed?
product name

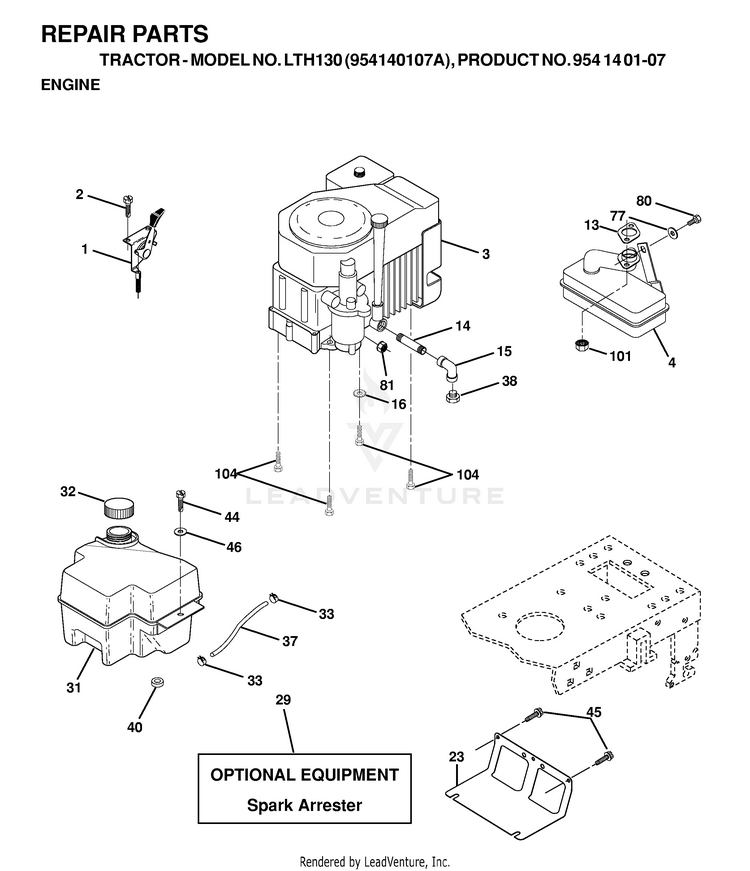

ENGINE

...
...
45
SCREW, 3/8-16X3/4 HUS-817000612
...
32
CAP.2.25'.VENTED.RATCHET.EPA HUS-581075501
...
104
SCREW 3/8-16X1 HUS-817120616
...
37
HOSE 1/4" LOW PERMEATION FUEL HUS-587044820
...
29
KIT.SPARK ARRESTOR 794945 B&S HUS-532137180
...
46
Washers HUS-596135301
...
4
MUFFLER.KOHL.CV.SINGLE.W/PORT HUS-532159420
...
16
Washers HUS-596238701
...
14
Std. Pipe Nipple 3/8 - 18 NPT x 3 1/2 HUS-813280328
...
81
NUT.HEX..25-20.UNC HUS-532050675
...
40
BUSHING.SNAP.NYL.BLK. HUS-532124028
...
77
WASHER - 26X6.5X1.6 HUS-734115441
...
101
Nuts HUS-596433401
...
23
SERVICE KIT SHIELD SHIELD.BROW HUS-531150701
...
80
Bolt, Hex Head, Fin. 5/16-18 x 1/2 HUS-874760508
...
31
GAS TANK 2GAL HUS-532180645
...
44
BOLT.HEX.1/4.X.3/4.DICHROMATE HUS-874760412
...
2
Bolts HUS-596582501
...
15
VALUE.OIL.DRAIN HUS-532428287
...
33
HOSE CLAMP HUS-532123487
