Husqvarna LTH130 - 954140005K (1999-03) Riding Tractor

Model: LTH130 - 954140005K (1999-03)

Back To Assemblies

Save Part Not Listed?
product name

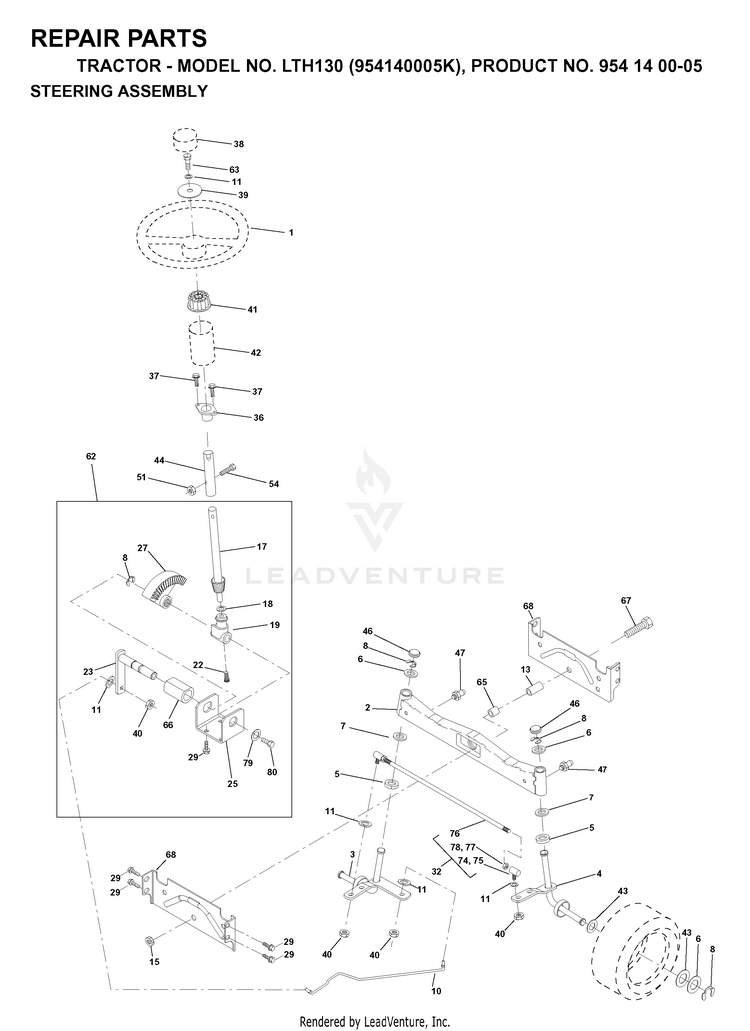

STEERING

...
...
11
Washers HUS-596238701
...
68
AXLE, BRACE HUS-532154429
...
47
FITTING.GREASE.TAPERED HUS-532183226
...
80
BOLT.HX.NYLON3/8-16X HUS-874950612
...
7
WASHER HUS-819272016
...
22
SCREW.HX.WSH.HD HUS-532165857
...
74
JOINT.RH HUS-532121160
...
4
SPINDLE ASM RH HUS-532157478
...
10
LINK.DRAG.DROPPED.LT HUS-532154432
...
15
LOCKNUT M HUS-583612401
...
46
CAP.SPINDLE.BLACK HUS-532121232
...
41
KIT.SRVC.STEERINGSHAFT.ADAPTER HUS-587738905
...
40
NUT HUS-873610600
...
32
ROD.TIE.NON-ADJUSTABLE HUS-532186799
...
17
SERVICE KIT SHAFT ASM ST HUS-531166901
...
42
STEERING BOOT, GRAY HUS-532145054
...
37
SCREW.TT.#10-32X.5.3/8.FLANGE HUS-532152927
...
39
WASHER.13/32x2 3/8x12GA HUS-583789501
...
43
WASHER HUS-532121749
...
44
SHAFT EXT STEERING HUS-532153721
...
29
BOLT HEX PATCH 3/8-16X3/4 HUS-534200501
...
51
Hardware HUS-596040501
...
79
GSPH HUS-596134901
...
75
JOINT.LH HUS-532109851
...
8
RING CLIP HUS-812000029
...
67
Bolt, Hex 5/8 -11 x 2 - 3/4 Gr. 5 HUS-874781044
...
5
WASHER THRUST HUS-532006266
...
76
ROD.TIE.NON-ADJUSTABLE HUS-532186799
...
19
STEERING SHAFT SUPPORT HUS-532160395
...
66
BEARING ARM HUS-532154404
...
27
GEAR.SECTOR HUS-532136874
...
13
BEARING AXLE HUS-532154779
...
62
KIT.STEER.ASM.P/L HUS-584371701
...
54
Screws HUS-595305701
...
1
STEERING WHEEL HUS-532124415
...
3
SPINDLE ASM LH HUS-532157479
...
78
NUT HUS-873360600
...
2
AXLE.FRONT.CAST.MACHINE.W/ZERK HUS-532178557
...
38
INSERT,STR WHEEL HUS-532124416
...
25
BRACKET STEERING HUS-532154406
...
23
SERVICE.KIT SHAFT ASSY SHAFT A HUS-531154301
...
6
WASHER HUS-532121748
...
77
NUT HUS-873700600
...
65
SERVICE KIT SPACER AXLE SPACER HUS-531152101
...
36
KIT.BUSHING.STEERING HUS-532155106
...
63
Bolts HUS-596564401
...
18
THRUST WASHER HUS-532057079
