Husqvarna LTH130 - 954140005A (1997-01) Riding Tractor

Model: LTH130 - 954140005A (1997-01)

Back To Assemblies

Save Part Not Listed?
product name

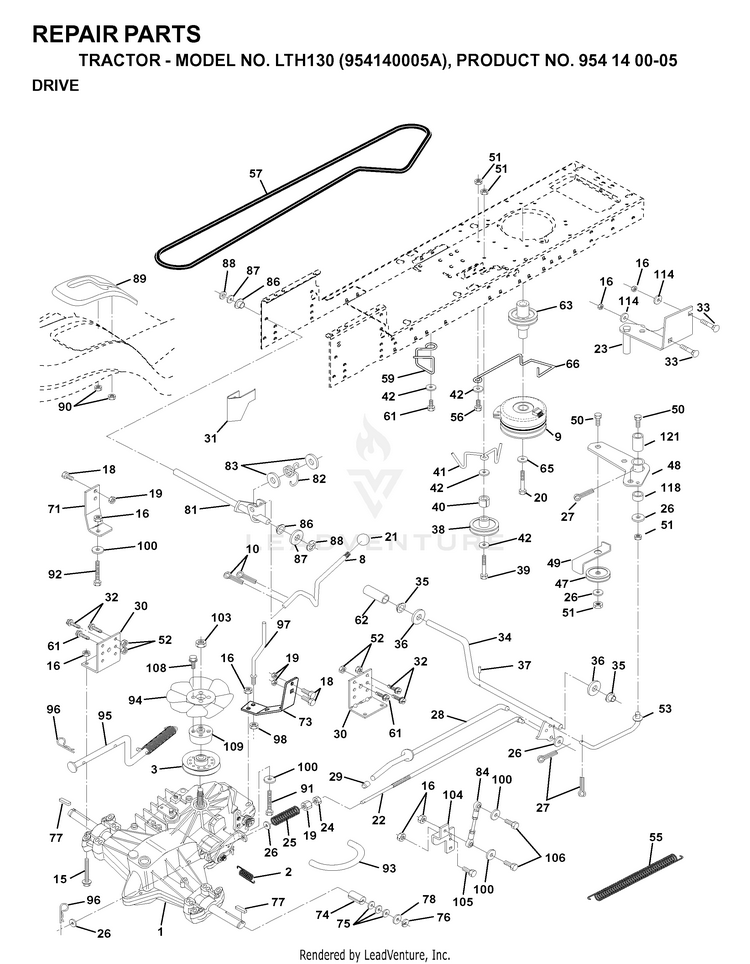

DRIVE

...
...
10
Pins HUS-596029601
...
83
BUSHING HUS-734117771
...
31
KEEPER BELT LH HUS-532127275
...
50
Bolt, Hex Head 3/8-16 UNC x 1-1/2 HUS-874930624
...
94
FAN 7" HYDRO HUS-532140462
...
15
Bolts HUS-595316601
...
108
SCREW HUS-817541026
...
35
BEARING.NYLON HUS-532120183
...
30
BRACKET TRANSAXLE HUS-532130807
...
78
WASHER HUS-532121748
...
98
NUT HUS-873510600
...
57
V-BELT HUS-532141416
...
71
STRAP TORQUE LH HYDRO HUS-532141417
...
81
SHAFT ASM CROSS HYDRO HUS-532156048
...
109
ADAPTOR FAN HYDRO HUS-532145098
...
106
Screws HUS-595305701
...
49
SERVICE KIT RETAIN BELT RETAIN HUS-531151801
...
84
ROD, TIE HYDRO HUS-532141423
...
19
Nuts HUS-596322601
...
41
KEEPER.BELT.IDLER.FLAT HUS-532165838
...
63
PULLEY, CLUTCH ELECT EVX HUS-532145868
...
1
TRANSAXLE.HYDRO.319-0500.LR HUS-532140607
...
9
CLUTCH.ELECT.EVX. HUS-532145028
...
96
RETAINER M HUS-532004497
...
29
PLUNGER CAP HUS-532071673
...
87
WASHER D HUS-819212016
...
55
SPRING, RETURN LT HUS-532105709
...
56
BOLT HUS-874760620
...
62
PAD, FOOT PEDAL HUS-510089501
...
90
NUT.PUSH.3/16 HUS-532124346
...
95
CONTROL.ASM.BYPASS.HYDRO.99 HUS-532167696
...
82
SPRING,TORSION HUS-532123782
...
74
SPACER SPLIT HUS-532121199
...
100
WASHER 11/32 X 11/16 X 14 GA T HUS-596204101
...
114
Washer 11/32 x 3/4 x 14 Gauge HUS-819111214
...
37
PIN.ROLL.3/16 X 1" HUS-532001572
...
66
SERVICE KIT BELT KEEPER HUS-531151001
...
3
PULLEY.4.20.HYDRO HUS-532144698
...
53
LINK.CLUTCH.7.66.2005 HUS-532199652
...
25
SPRING, BRAKE ROD HUS-532151332
...
86
BUSHING.STEERING.ROD LTB-WSL HUS-532071208
...
38
PULLEY.IDLER.FLAT HUS-532123674
...
2
SPRING BRAKE HUS-532142431
...
20
BOLT.HEX.7/16-20X4.GR5.1.5BLUE HUS-501606501
...
77
SQUARE KEY HUS-532123583
...
97
KEEPER BELT RH HUS-532144201
...
103
NUT.HEX.1/2-20 HUS-873940800
...
26
WASHER PLAIN WASHER 3/8 X 0.08 HUS-596565301
...
28
ROD BRAKE PARK LT HUS-532145204
...
88
KLIP RING HUS-812000008
...
52
Hardware HUS-596040501
...
73
STRAP TORQUE RH HYDRO HUS-532141418
...
23
BRACKET, ASM CLUTCH MTG HUS-532154978
...
89
SHIFT CONSOLE BLACK HUS-532164890
...
33
GSPW Bolts HUS-595901601
...
48
BELLCRANK ASSEMBLY HUS-532154604
...
92
Bolts HUS-596582201
...
16
Hardware HUS-596040501
...
27
Pins HUS-596029501
...
36
Washers HUS-596933401
...
76
E-RING LT HUS-812000001
...
21
KNOB.DUCKHEAD.1/2 HUS-532121274
...
24
NUT.HEX.3/8-16UNC HUS-873220600
...
61
BOLT HEX PATCH 3/8-16X3/4 HUS-534200501
...
51
Nuts HUS-596322601
...
59
KEEPER, BELT CENTER HUS-532169691
...
91
Bolts HUS-596434801
...
22
ROD BRAKE HYDRO HUS-532145627
...
18
Bolts HUS-596564401
...
47
PULLEY IDLER HUS-532139245
...
65
Washers HUS-596238901
...
93
LINE FUEL HYD 4" HUS-532142564
...
75
WASHER HUS-532121749
...
32
SCREW HEXAGON HEAD SCREW 5/16- HUS-596030501
...
8
ROD SHIFT FENDER HUS-532154792
...
121
NYLINER CLUTCHING HUS-532154419
...
118
SPACER BELLCRANK HUS-532154774
...
104
ARM, CONTROL HYDRO HUS-532141421
...
105
SCREW HUS-871070516
...
40
SPACER T HUS-532124965
...
42
GSPH HUS-596134901
...
39
BOLT HUS-874760644
...
34
SHAFT, FOOT PEDAL HUS-532155071
