Husqvarna LTH126 - 96041020503 (2013-05) Tractors/Ride Mower

Model: LTH126 - 96041020503 (2013-05)

Back To Assemblies

Save Part Not Listed?
product name

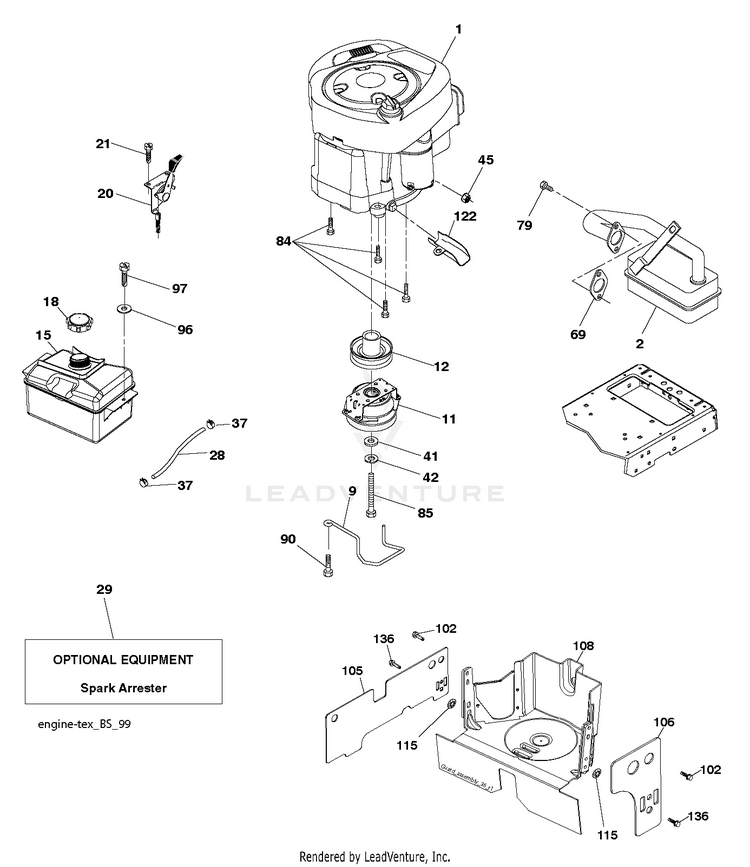

ENGINE

...
...
29
KIT.SPARK ARRESTOR 794945 B&S HUS-532137180
...
105
SHIELD.SRD.LH.SIDE.FRENCH HUS-583383701
...
28
HOSE 1/4" LOW PERMEATION FUEL HUS-587044820
...
20
CONTROL.TH/CK.C.BLACK HUS-532176636
...
136
SCREW.1/4-20X5/8 HUS-532137729
...
37
HOSE CLAMP HUS-532123487
...
69
GASKET.ENG.1.313 ID.TIN PLATED HUS-532272293
...
2
MUFFLER.B&S.MODEL.21.11HP.OHV HUS-532179758
...
79
Screws HUS-596134201
...
97
SCREW HEXWSHR 1/4-20X3/4 HUS-817670412
...
1
B&S 21R707-0006-B1 (585403801) HUS-000000000
...
11
CLUTCH.OGURA.4.4PD.GT1.5-EH13V HUS-587241501
...
12
PULLEY.ENGINE.ENX HUS-532402980
...
115
PALNUT 1/4 HUS-532423062
...
21
Screws HUS-596321701
...
102
BOLT.HEX.HD.WASHER.5/16-18X.75 HUS-532428867
...
90
SCREW 3/8-16X1 HUS-817000616
...
18
CAP.2.25'.VENTED.RATCHET.EPA HUS-581075501
...
106
SHILED.SIDE.RH.30SD.FRENCH HUS-583457201
...
122
EXTENSION DRAIN OIL HUS-532421922
...
85
CLUTCH BOLT7/16-20X3.5 GR524HR HUS-581332804
...
42
Washers HUS-596238901
...
84
SCREW.3/8-16 HUS-817060620
...
41
WASHER HUS-532126197
...
108
COVER.PULLEY.ENGINE.SRD.FRENCH HUS-583471901
...
96
Washers HUS-596135301
...
9
KEEPER.BELT.ENG.3.25"2BOLT HUS-582540301
...
15
FUEL.TANK.ASM.NON-EPA HUS-581289901
...
45
NUT HEX_LRG FLG_1_4-20_LOCK HUS-586668901
