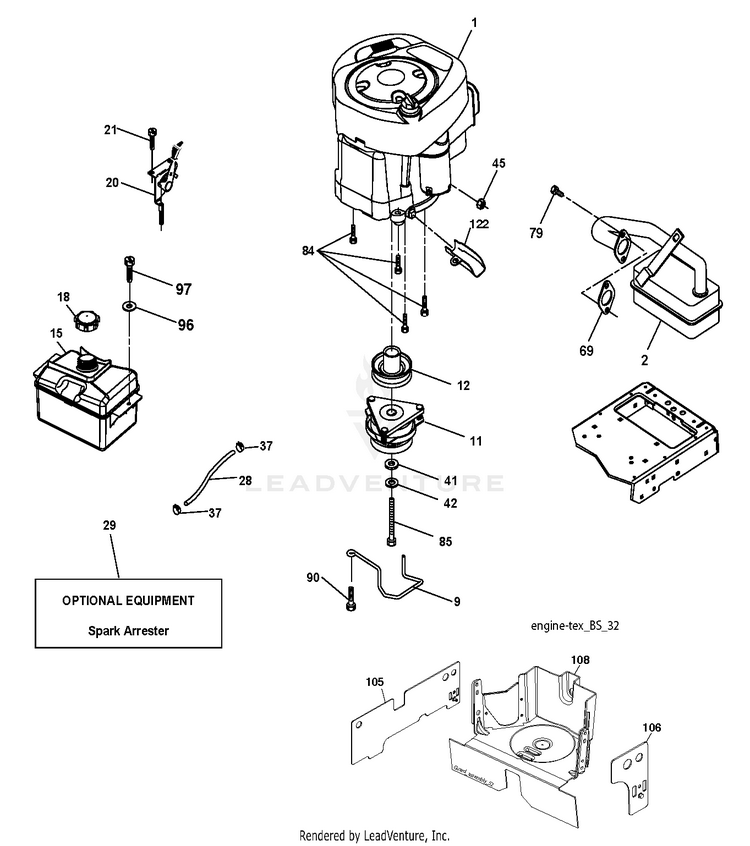

Husqvarna LTH126 - 96041020501 (2011-07) Tractors/Ride Mower

Model: LTH126 - 96041020501 (2011-07)

Back To Assemblies

Save Part Not Listed?
product name

ENGINE

...
...
45
NUT HEX_LRG FLG_1_4-20_LOCK HUS-586668901
...
42
Washers HUS-596238901
...
37
HOSE CLAMP HUS-532123487
...
122
EXTENSION DRAIN OIL HUS-532421922
...
29
KIT.SPARK ARRESTOR 794945 B&S HUS-532137180
...
69
GASKET.ENG.1.313 ID.TIN PLATED HUS-532272293
...
21
Screws HUS-596321701
...
108
COVER.PULLEY.ENGINE.SRD.FRENCH HUS-583471901
...
84
SCREW.3/8-16 HUS-817060620
...
1
ENGINE BRIGGS MODEL NO. 219807-3376-B1(438172) HUS-000000000
...
96
Washers HUS-596135301
...
15
FUEL.TANK.ASM.NON-EPA HUS-581289901
...
2
MUFFLER.B&S.MODEL.21.11HP.OHV HUS-532179758
...
20
CONTROL.TH/CK.C.BLACK HUS-532176636
...
11
KIT.SVC.CLUTCH.ELE.180505 HUS-583389701
...
12
PULLEY.ASM.ENG.OGURA.3 HUS-532194338
...
90
SCREW 3/8-16X1 HUS-817000616
...
28
HOSE 1/4" LOW PERMEATION FUEL HUS-587044820
...
9
KEEPER.BELT.ENGINE.3.25 (3 2) HUS-532194319
...
105
SHIELD.SRD.LH.SIDE.FRENCH HUS-583383701
...
79
Screws HUS-596134201
...
18
CAP.2.25'.VENTED.RATCHET.EPA HUS-581075501
...
85
BOLT.HEX.7/16-20X4.GR5.1.5BLUE HUS-501606501
...
41
WASHER HUS-532126197
...
106
SHILED.SIDE.RH.30SD.FRENCH HUS-583457201
...
97
SCREW HEXWSHR 1/4-20X3/4 HUS-817670412
