Husqvarna LTH126 - 96041020501 (2011-07) Tractors/Ride Mower

Model: LTH126 - 96041020501 (2011-07)

Back To Assemblies

Save Part Not Listed?
product name

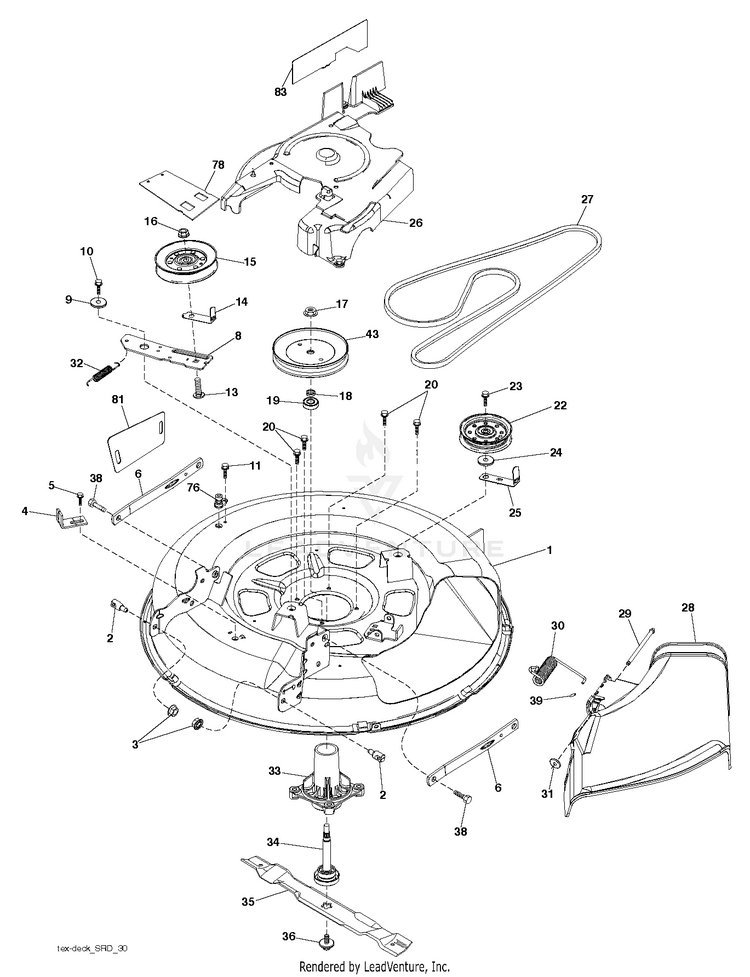

MOWER DECK / CUTTING DECK

...
...
81
SHIELD.ASM.SUSP.FRENCH.30S/30R HUS-583419401
...
8
ARM.IDLER.30"SRD HUS-583379801
...
15
PULLEYS HUS-593787801
...
35
BLADE, MULCH.LRV30 HUS-532419273
...
26
COVER.ASM.MANDREL.30" HUS-583481101
...
22
Pulleys HUS-596481401
...
34
KIT.MANDREL.NONGREASE.TALL HUS-587819701
...
5
BOLT.5/16HEX.WHS.HD HUS-817000510
...
11
SCREW.1/4-20X5/8 HUS-532137729
...
13
GSPW Bolts HUS-596136101
...
9
SPACER.RETAINER HUS-532199092
...
76
PORT.WASHOUT HUS-532415598
...
- -
HUS-532438109
...
28
SHIELD.DEFLECT.MWR.30S.BLACK HUS-532417344
...
33
KIT.MANDREL.NONGREASE.TALL HUS-587819701
...
36
BOLT.WASHER.ASM.7/16-2 HUS-532193003
...
6
ARMS.SUSP.MOWER.REAR.SRD HUS-532418863
...
23
BOLT HUS-599972501
...
17
Nuts HUS-596134801
...
38
BOLT.SHOULDER HUS-532196539
...
10
SCREW 3/8-16X1 HUS-817000616
...
29
Rods HUS-593885101
...
43
PULLEY.MANDREL 6.5" PULLEY HUS-525568002
...
1
DECK.SVC.WELDMNT.30"419272X418 HUS-532434487
...
20
BOLT.HEX.WASHR.HED.313-18X1.19 HUS-584953901
...
83
HUS-532432467
...
14
Keepers HUS-597024901
...
4
BRACKET.CLUTCH.CABLE HUS-532417645
...
78
GUARD.DECK.SRD.ARM.CLUTCH HUS-583394901
...
25
KEEPER, BELT, BLACK HUS-529311701
...
27
V-BELT.DRIVE.MOWER.30" HUS-532419271
...
31
NUT PUSH M HUS-532110452
...
2
STUD.W/"D"ANTI-ROTATION HUS-593824001
...
18
WASHER.SPACER.MANDREL HUS-532187690
...
- -
KIT.MANDREL.NONGREASE.TALL Mandrel Assembly (Includes Housing, Shaft Assembly, And Bearing Only - Pulley/Nut/Washer And Blade Bolt/Washers Not Included) HUS-587819701
...
30
SPRING.TORSION.DEFLECT HUS-532197026
...
24
GSPH HUS-596134901
...
16
NUT.HEX.FLANGE.3/8-16.LOCKNUT HUS-532409149
...
39
CAP-SLEEVE LT HUS-532105304
...
32
SPRING.MOWER.DRIVE.ELECTRIC HUS-532197251
...
3
GSPW Nuts HUS-596135701
...
19
BEARING HUS-532110485
