Husqvarna LTH126 - 96041019902 (2012-05) Tractors/Ride Mower

Model: LTH126 - 96041019902 (2012-05)

Back To Assemblies

Save Part Not Listed?
product name

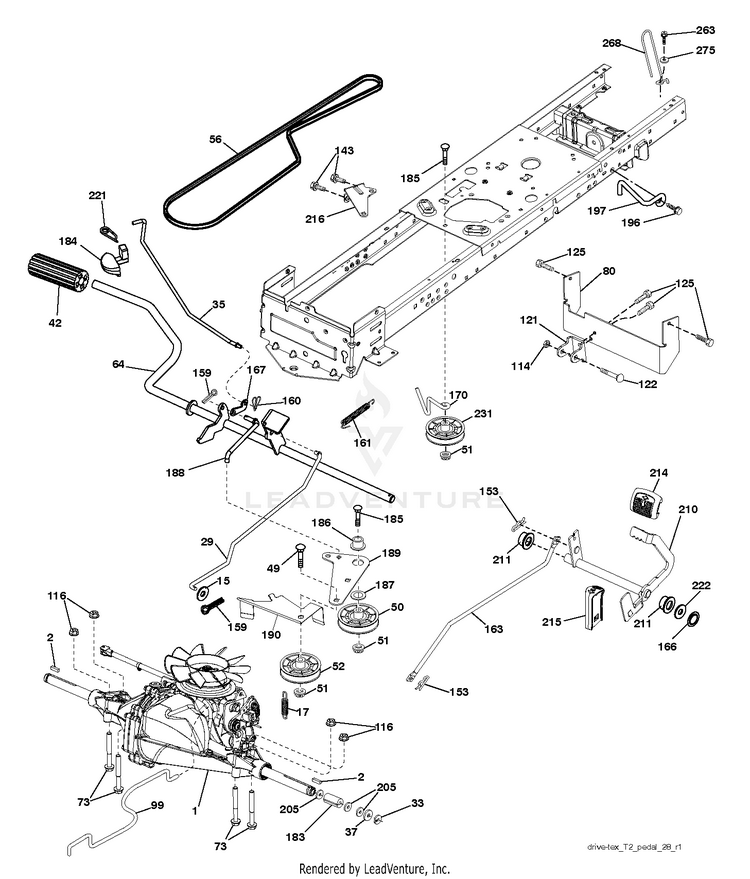

DRIVE

...
...
42
PAD, FOOT PEDAL HUS-510089501
...
114
Hardware HUS-596040501
...
189
SERVICE KIT BELLCRANK HUS-531169001
...
35
Rods HUS-596874801
...
196
SCREW 3/8-16X1 HUS-817000616
...
163
Rods HUS-594007201
...
29
ROD.BRAKE.T2.TEX HUS-532423239
...
80
STRAP.TORQUE.T2 HUS-581550701
...
205
WASHER HUS-532121748
...
50
IDLER.FLAT.910.OFFSET HUS-532194327
...
214
PEDAL.FORWARD.PAD.TEX HUS-532421263
...
33
E-RING LT HUS-812000001
...
187
Washers HUS-596135501
...
263
SCREW, 3/8-16X3/4 HUS-817000612
...
51
NUT.HEX.FLANGE.3/8-16.LOCKNUT HUS-532409149
...
186
SPACER.RETAINER HUS-532194321
...
17
SPRING.BRAKE.HG3000/3500 HUS-532197296
...
1
TRANSAXLE HYDRO T2-BABC-1X2B-1GX1 (421645) HUS-000000000
...
73
Bolts HUS-595316601
...
268
GUARD.MUFFLER HUS-583122001
...
222
WASHER 21/32 X 1-1/4 X 10 GA. HUS-879212010
...
49
Bolts HUS-596136201
...
167
SERVICE KIT LATCH LATCH.BRAKE. HUS-531152901
...
56
BELT HUS-532125907
...
197
LINK.CLUTCH.ANIT-ROTAT HUS-532195804
...
99
ROD.ASM.BYPASS.SPRING.T2.FS HUS-532408418
...
160
GSPW Retainers HUS-596029401
...
15
WASHER PLAIN WASHER 3/8 X 0.08 HUS-596565301
...
185
BOLT HUS-872110622
...
183
SPACER, AXLE PVST HUS-532156972
...
275
Washers HUS-596140201
...
116
GSPW Nuts HUS-596135701
...
211
BEARING.NYLON HUS-532120183
...
170
KEEPER.CENTER SPAN.1.688 HUS-532413430
...
188
LINK.CLUTCH.GROUND DRIVE.LONG HUS-582217001
...
231
IDLER.V-GROOVE.1.688.OFFSET HUS-532407287
...
37
WASHER HUS-532121749
...
215
PEDAL.REVERSE.TEX.GT.4 HUS-532401723
...
166
NUT.PUSH.625 HUS-532429164
...
210
ROCKER.ASM.PEDAL.CONTR HUS-532400980
...
122
BOLT.5/16-18X2.5 HUS-872010520
...
52
IDLER.V-GROOVE.910.OFFSET HUS-532194326
...
2
SQUARE KEY HUS-532123583
...
184
HANDLE.PARKNG BRK.PRED.LT.428 HUS-532411484
...
64
SHAFT.ASM.PEDAL.BRK.CNTR HUS-532197865
...
153
RETAINER M HUS-532004497
...
221
RETAINER.SPRING.CLIP.H HUS-532403187
...
121
BRACKET STRAP TORQUE HUS-532175611
...
143
Screws HUS-596030701
...
161
SPRING, RETURN LT HUS-532105709
...
190
KEEPER.BELLCRANK.DRIVE HUS-532194318
...
216
BRACKET.PULLEY.IDLER.W/TEX HUS-532196131
...
125
BOLT.HEX.HD.WASHER.5/16-18X.75 HUS-532428867
...
159
Pins HUS-596029501
