Husqvarna LTH120 - 954140013A (1997-01) Riding Tractor

Model: LTH120 - 954140013A (1997-01)

Back To Assemblies

Save Part Not Listed?
product name

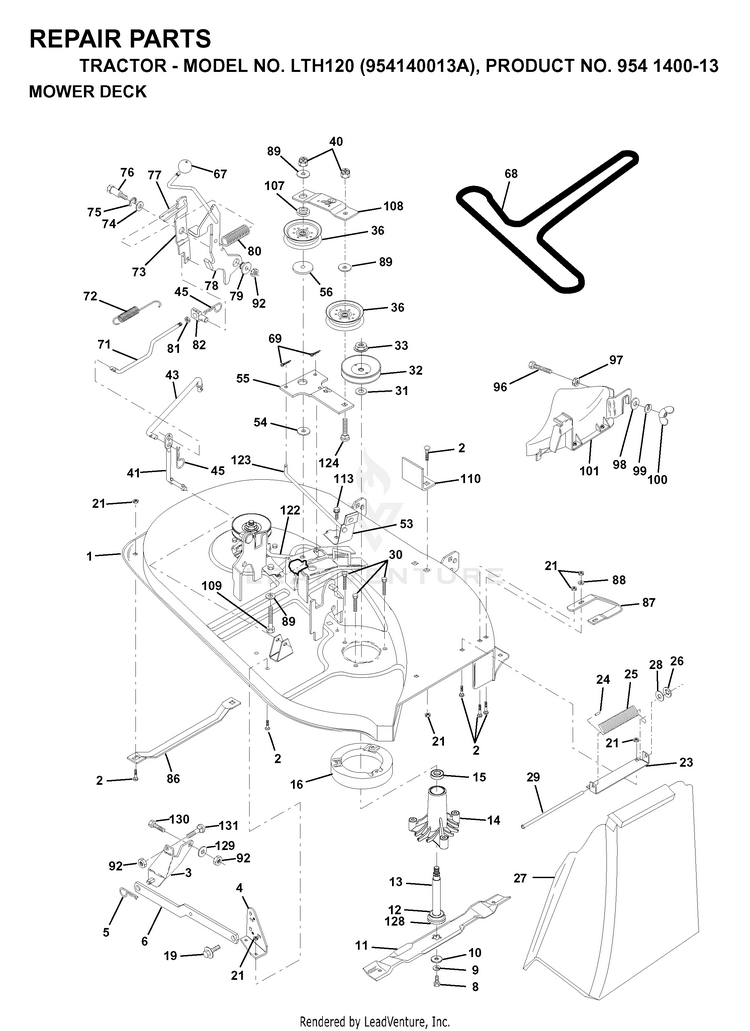

MOWER DECK / CUTTING DECK

...
...
27
SHIELD.DEFLECTOR.MOWER.38.BL HUS-532106736
...
124
Bolts HUS-596136201
...
108
SERVICE KIT STIFFENER STIFFENE HUS-531150801
...
15
BEARING HUS-532110485
...
31
WASHER.SPACER.MANDREL HUS-532187690
...
56
SPACER.RETAINER.MOWER HUS-532165723
...
21
Hardware HUS-596040501
...
101
COVER.MULCHING.38" (2 2) HUS-532132803
...
32
MANDREL.PULLEY.38.BRIGHT.ZINC HUS-532173435
...
13
KIT MANDREL W/NUT HUS-532137646
...
73
ARM CLUTCH SECONDARY HUS-532127847
...
19
BOLT SHD 5/16-18 HUS-532132827
...
25
SPRING TORSION HUS-532123713
...
81
NUT.HEX.3/8-16UNC HUS-873220600
...
109
Bolt Hex Fin 3/8-16 UNC x 2-1/2 HUS-874760640
...
129
GSPH HUS-596134901
...
1
DECK SVC KIT 38" HUS-532145775
...
92
Nuts HUS-596322601
...
68
V-BELT TRIPATH HUS-532144200
...
67
KNOB T (3/8 HOLE) HUS-532106932
...
10
WASHER.BLADE HUS-532140296
...
76
BOLT HUS-532128903
...
55
SERVICE.KIT IDLER ARM HUS-531164901
...
97
Nuts HUS-596322601
...
86
RUNNER LH HUS-532007631
...
41
PIVOT ROD HUS-532133551
...
- -
KIT.MANDREL.ASM.3.BOLT HUS-532130794
...
122
BRAKE ROD LH HUS-532131289
...
79
BUSHING.FLANGE.E-RING.GROOVE HUS-532127498
...
71
SERVICE KIT CLUTCH ROD, CLUTCH HUS-531166401
...
99
Washers HUS-596238701
...
80
SPRING-CLUTCH (2 2 PW01) HUS-532153701
...
29
ROD-HINGE T HUS-532106735
...
12
BEARING.BALL.#6204.(MANDREL) HUS-532129895
...
23
SERVICE KIT BRACKET BRACKET HUS-531155201
...
3
SERVICE.KIT BRACKET BRKT ASM S HUS-531165401
...
- -
DECK SER 38 HUS-532142820
...
96
Bolt, Hex Head 3/8-16 x 1-1/4 HUS-874930620
...
87
RUNNER.RH.38 HUS-532128772
...
107
SPACER.IDLER.ARM HUS-532133502
...
113
SCREW HEXAGON HEAD SCREW 5/16- HUS-596030501
...
75
RING CLIP HUS-812000029
...
77
KEEPER SPRING HUS-532127845
...
2
GSPW Bolts HUS-595901601
...
78
ARM ASM CLUTCH PRIMARY HUS-532154809
...
24
CAP-SLEEVE LT HUS-532105304
...
4
BRKT DECK SW BAR HUS-532138440
...
9
Washers HUS-596238701
...
26
NUT PUSH M HUS-532110452
...
110
UPSTOP DECK FRONT 38" HUS-532142587
...
82
TRUNNION.ADJUSTABLE.3/8-16 HUS-532142028
...
6
SERVICE KIT BAR BAR SWAY DECK. HUS-531149301
...
100
WING NUT HUS-532135651
...
28
Washer 11/32 x 5/8 x 16 Ga SD HUS-819111016
...
16
SERVICE KIT MANDREL STRIPPER HUS-531167701
...
74
WASHER HUS-532121748
...
5
RETAINER-SPRNG RB HUS-532124670
...
11
BLADE 38" V MULCH HUS-532134148
...
130
Bolts HUS-596564401
...
89
Washers HUS-596140201
...
54
WASHER HUS-532178515
...
128
WASHER FELT HUS-532153390
...
8
BLADE BOLT HUS-532850857
...
45
RETAINER M HUS-532004497
...
69
Pins HUS-596917601
...
123
BRAKE ROD RH HUS-532131288
...
14
HOUSING.MANDREL.VENTED (MACHD) HUS-532128774
...
30
BOLT.HEX.WASHR.HED.313-18X1.19 HUS-584953901
...
40
Nuts HUS-596322601
...
98
GSPH HUS-596134901
...
131
Bolts HUS-596728201
...
36
CLG HUS-597025001
...
43
CLUTCH ROD SECONDARY HUS-532133504
...
72
RETURN SPRING HUS-532131870
...
33
KIT.NUT.FLANGE HUS-532139729
...
88
WASHER 11/32 X 11/16 X 14 GA T HUS-596204101
...
53
SERVICE KIT BRAKE ASSEMBLY BRA HUS-531165101
