Husqvarna LTH120 - 954140003B (1997-01) Riding Tractor

Model: LTH120 - 954140003B (1997-01)

Back To Assemblies

Save Part Not Listed?
product name

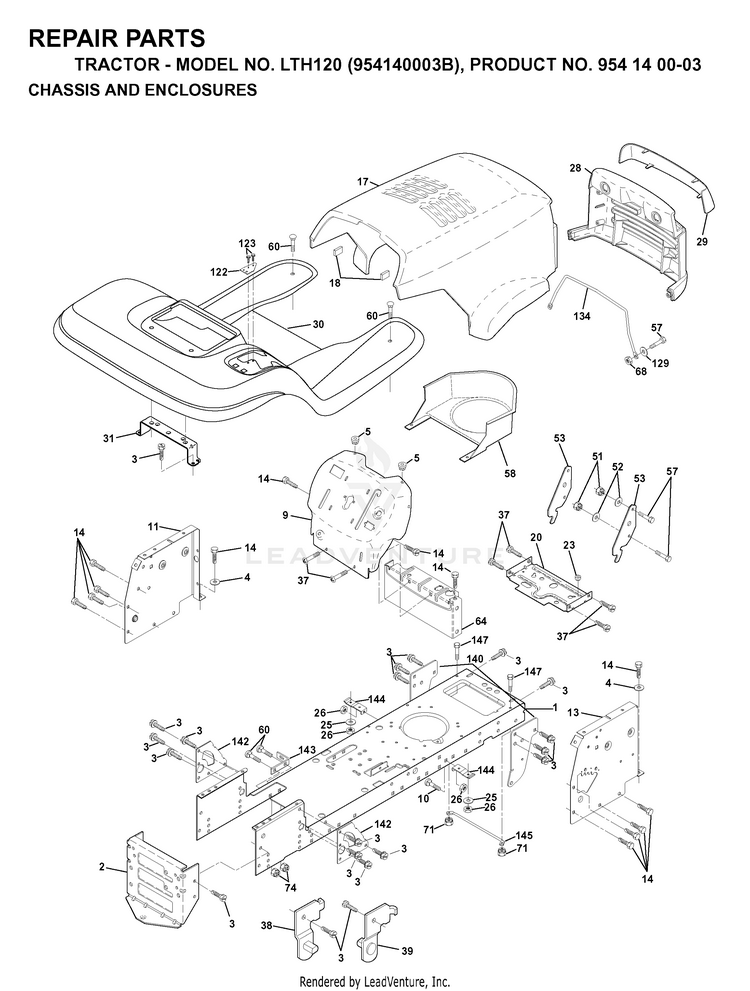

CHASSIS & ENCLOSURES

...
...
134
ROD SUPPORT HOOD LT/PL HUS. HUS-532160219
...
11
PANEL.DASH.LH.LTX HUS-532174996
...
64
DASH LOWER HUS-532154798
...
20
PLATE MTG.BATTERY/FUEL TANK HUS-532180679
...
26
Nuts HUS-596322601
...
142
PLATE REINFORCEMENT HUS-532175702
...
74
Nuts HUS-596322601
...
17
HOOD - LT/YT HUS-532156051
...
5
BUMPER.RUBBER.HOOD HUS-532155272
...
13
DASH PANEL ASM. HUS-532172107
...
1
CHASSIS KIT HUS-532160525
...
122
BRACKET SHIFT STLT HUS-532157301
...
3
BOLT HEX PATCH 3/8-16X3/4 HUS-534200501
...
129
Washers HUS-596582301
...
14
Bolts HUS-596564001
...
147
BOLT.HEX.1/4.X.3/4.DICHROMATE HUS-874760412
...
30
FENDER W/OUT CUP HOLDER HUS-532192813
...
144
BRKT, FOOT REST HUS-532175582
...
- -
PLUG BUTTON T HUS-532005479
...
4
Washer 13/32 X 3/4 X 16 Ga. HUS-819131216
...
60
Bolt - Rd. Hd. Sq. Neckiage 3/8 16 x 3/4 HUS-872140606
...
23
BUSHING.SNAP.NYL.BLK. HUS-532124028
...
140
BRACKET SUSPENSION FRONT HUS-532158418
...
28
GRILLE.LT.P/L HUSQVARNA.SERVIC HUS-532156880
...
10
Bolts HUS-596728201
...
18
BUMPER HOOD T HUS-532126938
...
71
NUT HEX_LRG FLG_1_4-20_LOCK HUS-586668901
...
51
NUT FLG, NYLOCK, 1/4-20 GR G C HUS-582478602
...
39
BRACKET RH PIVOT HUS-532139887
...
31
BRACKET.SUPPORT.FENDER HUS-532139976
...
58
AIR DUCT P/L/LT HUS-532150127
...
38
BRACKET LH PIVOT HUS-532139886
...
29
LENS LT/PL HUSQVARNA HUS-532149777
...
2
KIT.DRAWBAR.SERVICE HUS-532145009
...
37
Screws HUS-596030701
...
68
NUT HEX_LRG FLG_1_4-20_LOCK HUS-586668901
...
25
GSPH HUS-596134901
...
57
Screws HUS-596230901
...
143
BRACKET, SWAYBAR CHASSIS HUS-532186689
...
123
SCREW.TT.#10-32X.5.3/8.FLANGE HUS-532152927
...
53
BRACKET PNT PICK OFF LT/PL HUS-532150067
...
145
ROD.PIVOT.HOOD HUS-532409167
...
52
Washers HUS-596135301
