Husqvarna LTH120 - 954140003A (1997-01) Riding Tractor

Model: LTH120 - 954140003A (1997-01)

Back To Assemblies

Save Part Not Listed?
product name

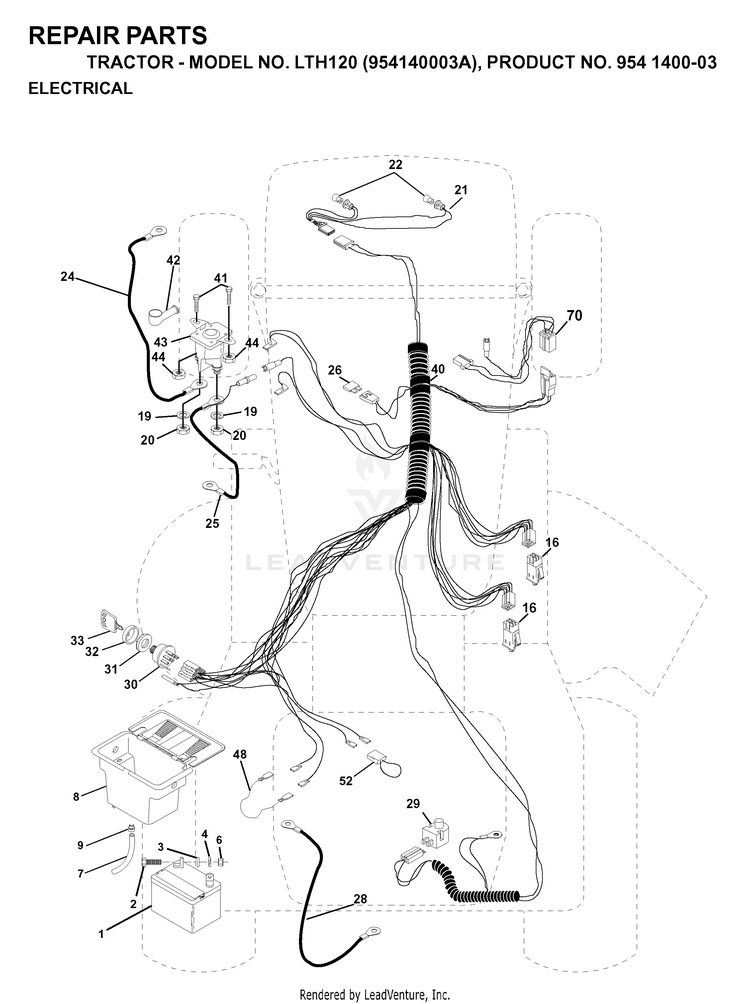

ELECTRICAL

...
...
539 11 12-76
48 INCH DECK HUS-539111276
...
539 11 07-40
RIVET, BLIND, 5/32 DIA HUS-539110740
...
539 11 12-78
DRIVE KIT 61" DECK HUS-539111278
...
539 11 12-36
BLOWER DECK PLATE HUS-539111236
...
539 99 00-74
BOLT CUP HEAD SQUARE NECK BOLT HUS-596238401
...
539 11 12-75
42 INCH DECK HUS-539111275
...
539 11 12-73
BELT SHIELD ASSY 52" HUS-539111273
...
539 10 25-63
LANYARD HUS-539102563
...
539 97 69-98
GSPW Zerks HUS-596899901
...
539 10 96-60
DRAW LATCH HUS-539109660
...
539 11 12-77
DRIVE KIT 52" DECK HUS-539111277
...
539 11 13-07
BELT HUS-539111307
...
539 11 13-05
BELT HUS-539111305
...
539 11 12-72
BELT SHIELD ASSY 48" HUS-539111272
...
539 99 05-98
Washers HUS-597338501
...
539 10 81-20
NUT FLG, NYLOCK, 1/4-20 GR G C HUS-582478602
...
539 11 12-80
Hood Assembly Collection System (HSC9) HUS-539111280
...
539 11 12-71
BELT SHIELD ASSY, 42" HUS-539111271
...
539 11 12-70
PIN HUS-539111270
...
539 10 57-43
DECAL.DECK.6MIL.EURO.NOSTEP HUS-581724301
...
539 11 12-55
42/48 LG DBL HEX STACK PULLEY HUS-539111255
...
539 11 13-06
BELT HUS-539111306
...
539 10 89-51
HCS, 7/16-20 X 2 1/2, GR8 HUS-539112138
...
539 10 57-44
DECAL, BELT DRIVE HUS-539105744
...
539 11 13-04
BELT HUS-539111304
...
539 11 12-56
52 LNG DOUBLE HEX STACK PULLEY HUS-539111256
...
539 11 12-40
BLOWER DECK PLATE WLDMNT, 61" HUS-539111240
...
539 11 12-74
BELT SHIELD ASSY 61" HUS-539111274
...
539 11 12-64
BLOWER DECK PLATE WLDMT, 52 HUS-539111264
...
539 11 12-57
61 LNG DBL HEX STK PULLEY HUS-539111257
