Husqvarna LTH120 - 954140003A (1997-01) Riding Tractor

Model: LTH120 - 954140003A (1997-01)

Back To Assemblies

Save Part Not Listed?
product name

SEAT 2

...
...
539 97 69-89
Pins HUS-596273101
...
539 10 99-56
FRONT LIFT SHAFT HUS-539109956
...
539 10 25-65
LIFT ARM HUS-539102565
...
539 97 77-03
CLEVIS PIN 3/8 X 1 1/8 HUS-539977703
...
539 99 07-17
Nuts HUS-596583702
...
539 10 99-61
LIFT LEVER WELDMENT HUS-539109961
...
539 10 12-32
BUSHING, FLANGED HUS-539101232
...
539 10 65-32
ROLL PIN HUS-539106532
...
539 97 69-79
GSPW Nuts HUS-596240901
...
539 10 35-33
PIN HUS-539103533
...
539 10 10-50
GRIP HUS-539101050
...
539 10 26-12
SCREW 3/8C X 2 3/4 HEX CAP HUS-539102612
...
539 99 10-43
Washers HUS-596933401
...
539 11 08-08
Cross HUS-596615201
...
539 10 45-30
DECK LIFT SPACER HUS-539104530
...
539 99 03-65
Pins HUS-596029501
...
539 10 17-21
HCS 5/16C X 2-3/4 HUS-539101721
...
539 10 48-08
PILLOW BLOCK HUS-539104808
...
539 10 35-34
PIN MT, UPPER HUS-539103534
...
539 10 18-02
E-RING 7/8 HUS-539101802
...
539 11 08-03
ADJUSTMENT PLATE WLDMT HUS-539110803
...
539 10 99-55
REAR LIFT SHAFT HUS-539109955
...
539 10 50-59
LANYARD HUS-539105059
...
539 10 25-15
GRIP HUS-539102515
...
539 99 07-61
NUT 1/4C CENTER LOCK HUS-539990761
...
539 99 05-80
Screws HUS-596230901
...
539 10 10-58
SPRING HUS-539101058
...
539 10 14-74
Zerks HUS-596623501
...
539 99 06-54
COTTER PIN HUS-539990654
...
539 10 48-07
REINFORCEMENT.PLATEX431 HUS-584392702
...
539 10 25-26
Pins HUS-596917701
...
539 99 96-37
HUS-539999637

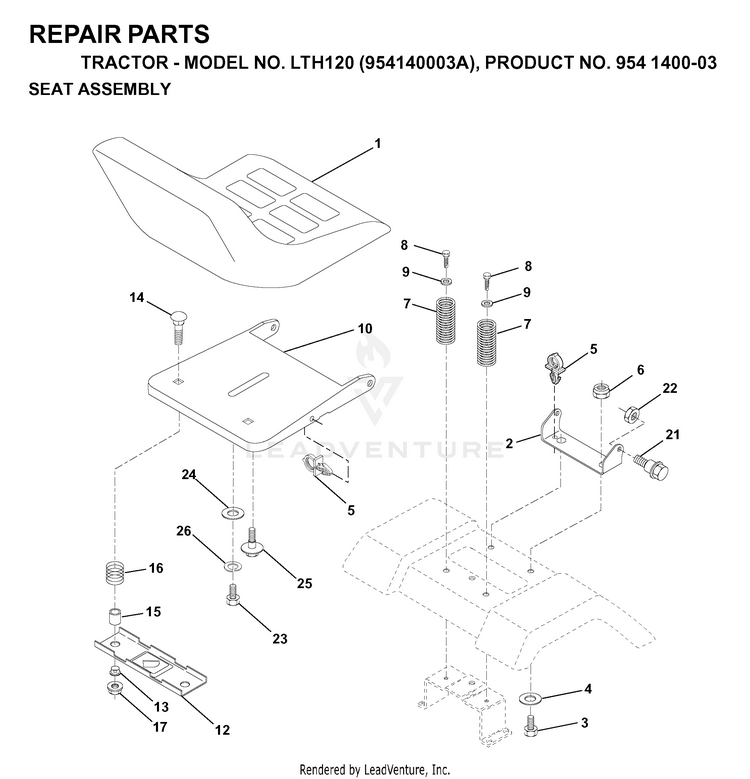

Schematic Image Zoomed
