Husqvarna LTH 2042 B (954571953) (2004-01) Ride Mower

Model: LTH 2042 B (954571953) (2004-01)

Back To Assemblies

Save Part Not Listed?
product name

Engine

...
...
1
CONTROL.THROTTLE.LT/YT HUS-532170805
...
2
Screws HUS-596437001
...
4
MUFFLER.SINGLE.CYL.KOHL/B&S HUS-532188655
...
8
BOLT.5/16-18UNCX3/4 W/SEMS.BLK HUS-532171877
...
13
GASKET.EXHAUST.KOHLER HUS-532185909
...
14
TUBE, DRAIN OIL ASM. HUS-532148456
...
23
SERVICE KIT SHIELD SHIELD.BROW HUS-531150701
...
29
KIT.SPARK ARRESTOR 794945 B&S HUS-532137180
...
31
TANK.FUEL(3.5.GAL) HUS-532157103
...
32
FUEL CAP/GAUGE HUS-532161696
...
33
HOSE CLAMP HUS-532123487
...
34
PAD-SPACER LT HUS-532106082
...
37
HOSE.1/4".LOW.PERM.FUEL.LN.54" HUS-587044854
...
39
PAD IDLER TI HUS-532109227
...
38
VALUE.OIL.DRAIN HUS-532428287
...
45
SCREW, 3/8-16X3/4 HUS-817000612
...
81
NUT HEX_LRG FLG_1_4-20_LOCK HUS-586668901
...
105
SCREW 3/8-16X1 HUS-817120616
...
116
NUT.HEX.FLANGE.TOPLOCK HUS-532184362
...
117
TUBE.EXHAUST.KOHLER.COURAGE HUS-583955301

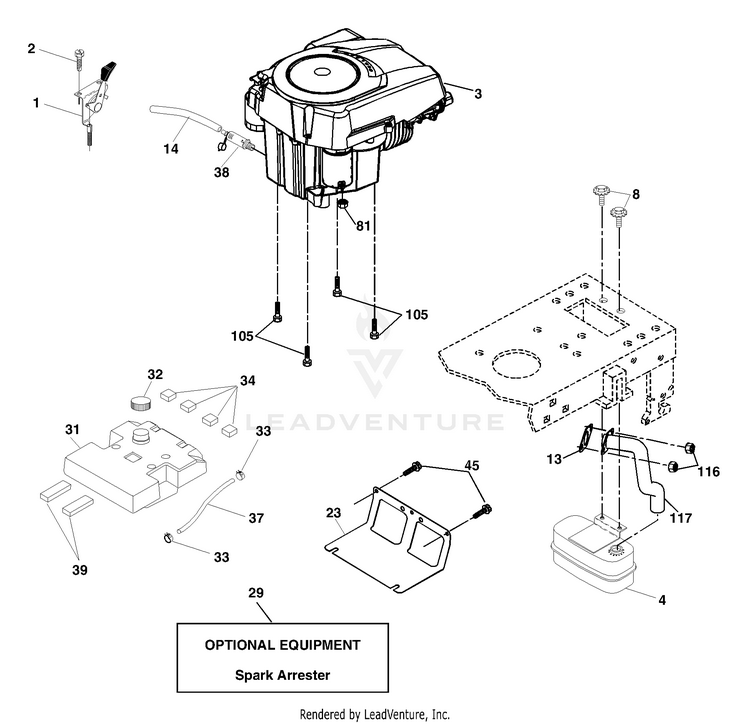

Schematic Image Zoomed
